• Model NO.：LSJ-120,35+45,30
• Customized：Customized
• Condition：New
• Sheet Size：2100mm Width*4-10mm Thickness
• Application：Sunshine Panel Roofing or Construction etc
• Extruder Model：Sj120,35+45,30
• T-Die Head：Jc-Times Brand
• Max Capacity：350kg,H
• Total Installed Power：510kw
• Main Electrical Parts：ABB, Omron, Rkc, Schneider, Siemens etc
• Guaranteed Time：12 Months
• Transportation：4 Sets of 40gp Containers
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：CE, ISO9001-2008, SGS, GOST
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：50 Sets,Per Year

Basic Info.

Model NO. LSJ-120/35+45/30 Customized Customized Condition New Sheet Size 2100mm Width*4-10mm Thickness Application Sunshine Panel Roofing or Construction etc Extruder Model Sj120/35+45/30 T-Die Head Jc-Times Brand Max Capacity 350kg/H Total Installed Power 510kw Main Electrical Parts ABB, Omron, Rkc, Schneider, Siemens etc Guaranteed Time 12 Months Transportation 4 Sets of 40gp Containers Transport Package Wooden Pallet/Cases with Streching Films Specification CE, ISO9001-2008, SGS, GOST Trademark leader machinery Origin Qingdao, China HS Code 84772090 Production Capacity 50 Sets/Per Year

Product Description

Double Wall/Triple Wall/Multiwall Polycarbonte PC hollow roofing Sheet Extrusion Line extruder machine
This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.

Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.

The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.

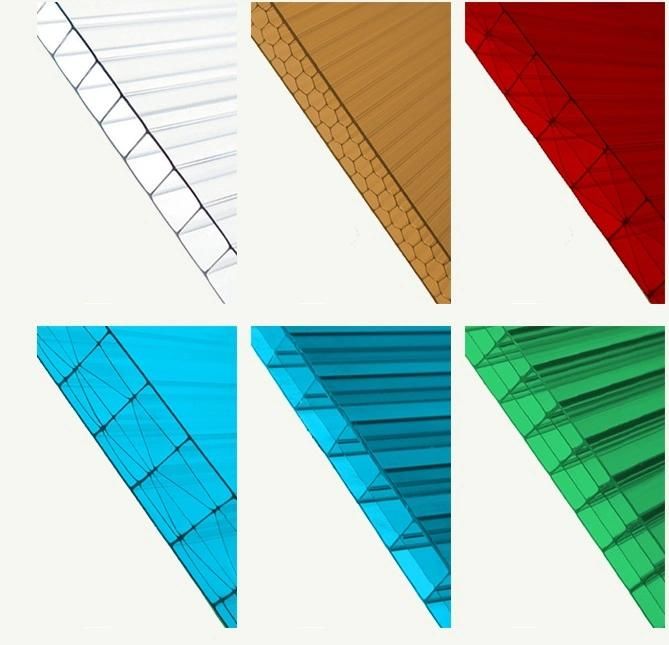

Hollow Sheets Specifications:
Sheet width: 600mm-700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm.
Sheet walls: double walls , three walls, 4 walls and more etc.

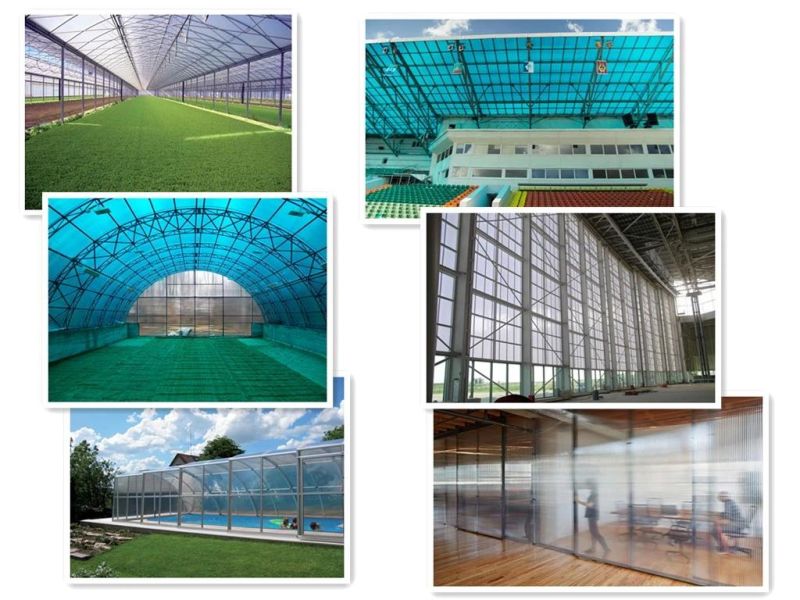

Application:1) Sunshades for stadium and bus shelters2) Lighting for corridors, passages and subway entries 3) Bank ATMs4) Sound and heat insulation for construction such as: houses 5) Canopies for agriculture greenhouse, zoos6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.

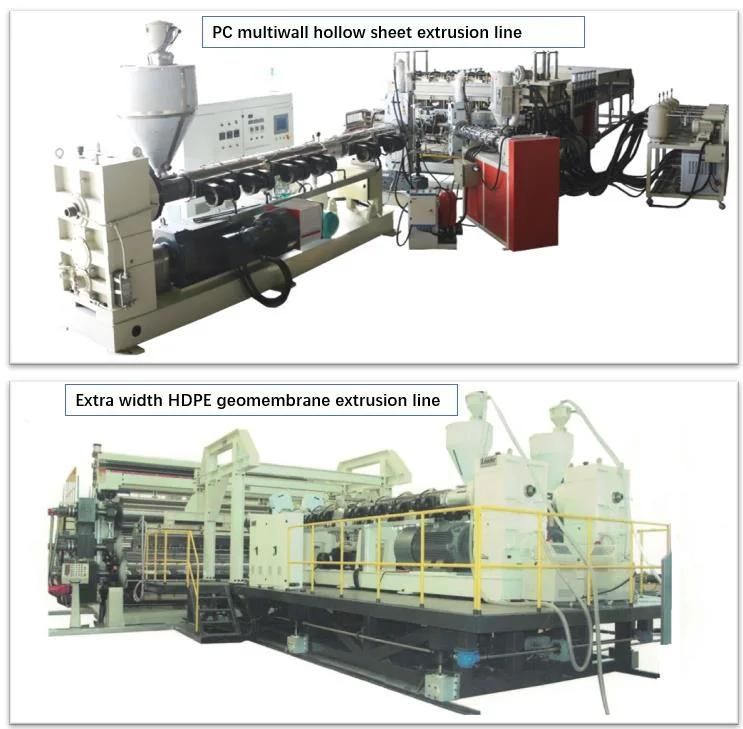

MACHINE PICTURES:

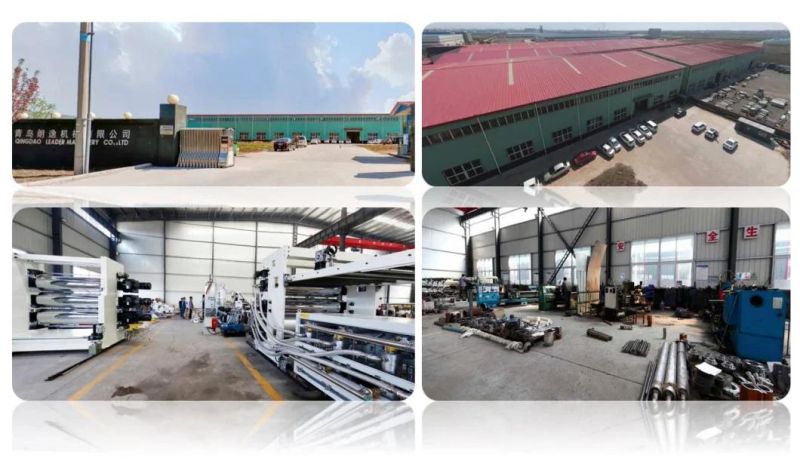

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:



PART 6 OUR RELIABLE SUPPLIERS:


PART 7 COMPANY CERTIFICATIONS:

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:

PART 9 Contact Information:

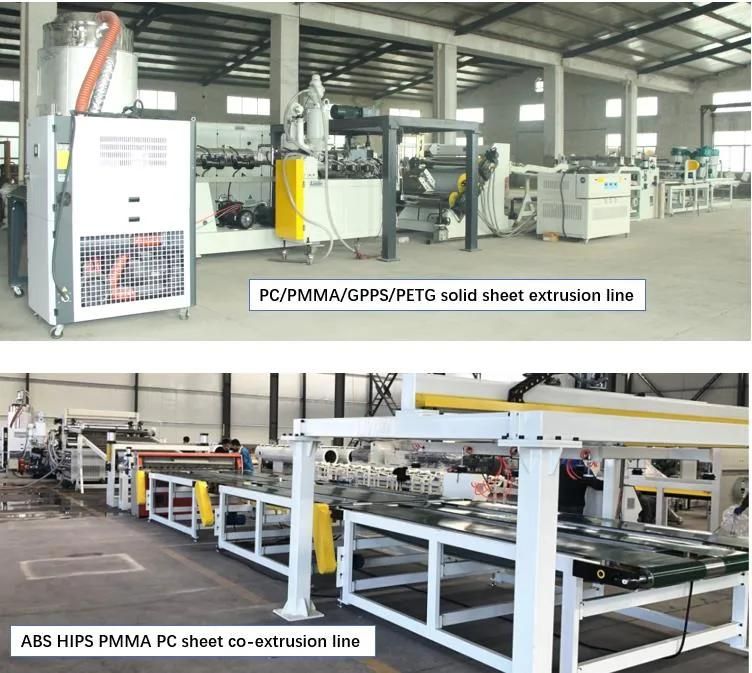

PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
