• Model NO.：RFS
• Certification：CE
• Product Name：Single Shaft Shredder for Recycling
• Voltage：Customized
• Color：Optional
• Shaft Design：Single
• Application：Recycle Waste Products
• Warranty：12 Months
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Delivery Time：45 Days
• Material Processed：Waste Plastic
• Blades Material：SKD-11
• Transport Package：Wooden Case
• Specification：RFS-600
• Trademark：YUREFON
• Origin：Jiangsu, China
• HS Code：84778000
• Production Capacity：200 Sets ,Year

Basic Info.

Model NO. RFS Certification CE Product Name Single Shaft Shredder for Recycling Voltage Customized Color Optional Shaft Design Single Application Recycle Waste Products Warranty 12 Months After-Sales Service Engineers Available to Service Machinery Overseas Delivery Time 45 Days Material Processed Waste Plastic Blades Material SKD-11 Transport Package Wooden Case Specification RFS-600 Trademark YUREFON Origin Jiangsu, China HS Code 84778000 Production Capacity 200 Sets /Year

Product Description

Waste Barrels Drums/Wood/Tire/HDPE Pipe/Scrap Metal/Cardboard Paper/PE PP Pet ABS Lump Recycling Single Shaft Plastic Shredder



Characteristics:

1. The whole chamber circulates movement, high shredding efficiency, never stuck.
2. The  shaft is made as an integrated part, and the machining center can be automatically processed and never stuck.
3. The rotating part is connected with the coupling, iron pins, protecting the  shaft and reducer, and avoid power loss.
4. The electronic control system is PLC program, equipped with functions of starting, stopping, turning, reversing and overload automatic protection.Complete machine automation, ensure safety and stability, save labor cost.


Application:

1. Large diameter PE /PVC pipes, board
2. PP ,PC ,ABS lump bullion
3. Pallet
4. Waste wire and cable
5. Waste metal, grass, aluminum
6.Waste tyre
Technical parameters


Shredder model	RF-S2455	RF-S3063	RF-S3980	RF-S48100	RF-S57120	RF-S75160
Shaft diameter(mm)	275	275	275	315	315	350
Moving knife qty.(pcs)	24	30	39	48	57	75
Fixed knife qty.(pcs)	1	1	1	1	2	2
Max.capacity(kg/h)	400	500	700	900	1200	1300
Motor power(kw)	22	30	37	45	55	75
Chamber size(L*W )(mm)	780*550	780*670	1000*870	1200*1060	1400*1260	1800*1650
Host weight(kg)	3600	4000	6000	8000	9500	12000
Dimensions(mm)	3250*1500*2350	3250*1750*2350	4150*1900*2450	4700*2550*2650	5350*2850*2760	5900*3050*2960

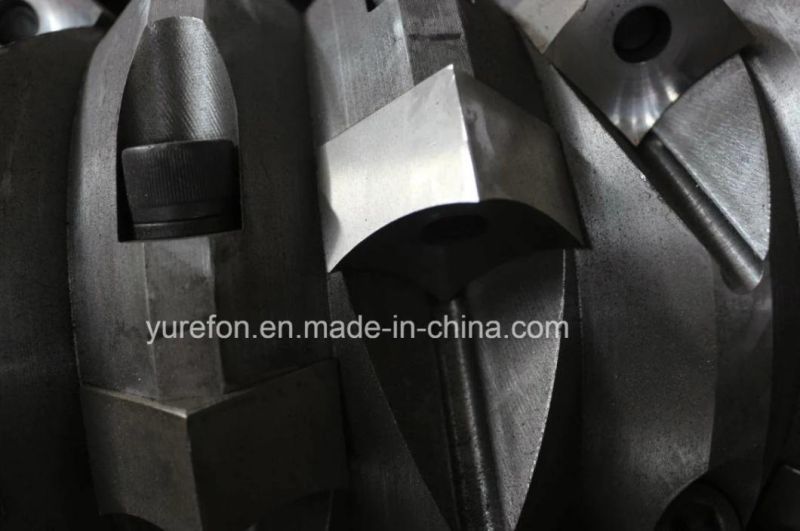

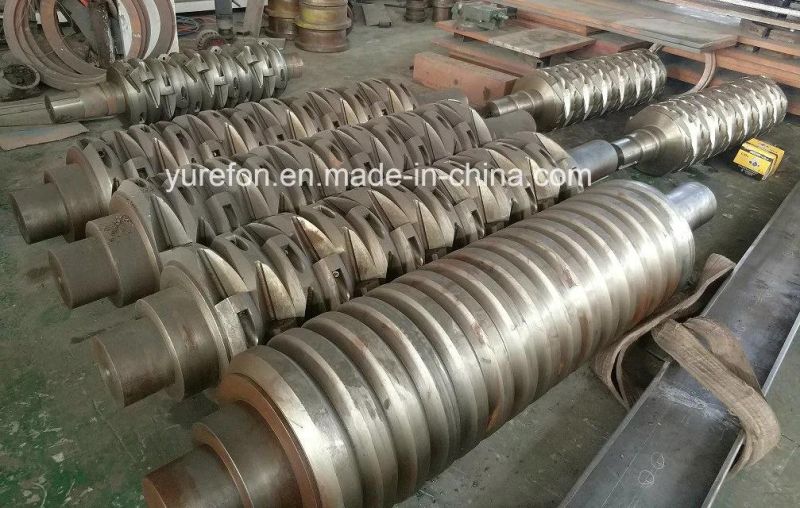

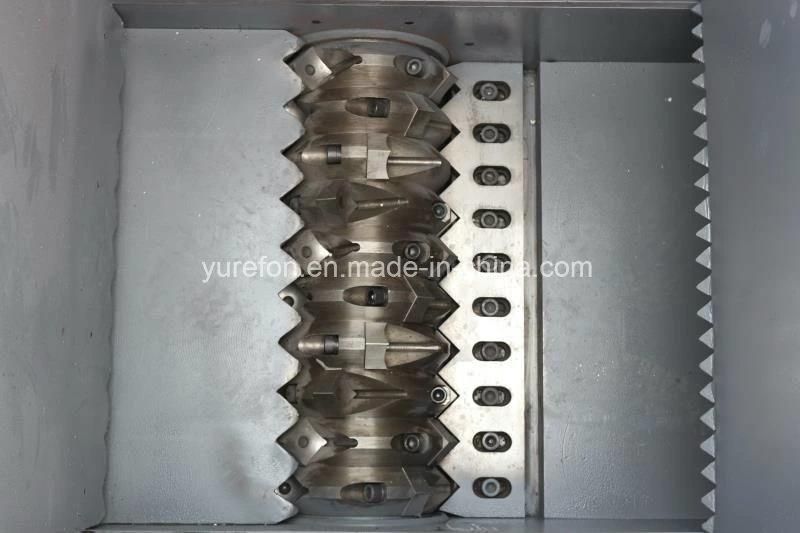

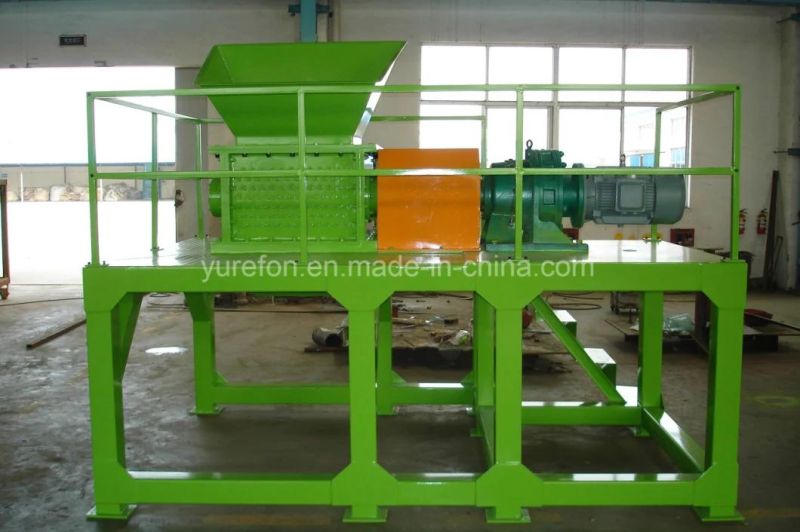

Details show
