• Model NO.：ZW3000
• Customized：Customized
• Condition：New
• Dimension：4800X2450X1800mm
• Function：Welding, Rolling, Bending
• Processing Length：3000
• Processing Thickness：2-30mm
• Range of Rolling Diameter：250
• Pressure of Air Supply：6-8kg.F,Cm2
• Rated Voltage：380V
• Power of Rolling Motor：0.75-1.1kw
• Process Applicable Material：PE PP PVC PPS Ppn PVDF Pph....
• Transport Package：Wooden Box or Strich Film
• Specification：ISO, CE, SGS
• Trademark：SUD
• Origin：Qingdao
• HS Code：85152900
• Production Capacity：5sets,Momth

Basic Info.

Model NO. ZW3000 Customized Customized Condition New Dimension 4800X2450X1800mm Function Welding, Rolling, Bending Processing Length 3000 Processing Thickness 2-30mm Range of Rolling Diameter 250 Pressure of Air Supply 6-8kg.F/Cm2 Rated Voltage 380V Power of Rolling Motor 0.75-1.1kw Process Applicable Material PE PP PVC PPS Ppn PVDF Pph.... Transport Package Wooden Box or Strich Film Specification ISO, CE, SGS Trademark SUD Origin Qingdao HS Code 85152900 Production Capacity 5sets/Momth

Product Description

Welcome to SUDA Machinery, hope you can see the good quality products here, after browsing, any needs or questions, please feel free to contact me. Follow us to visit our product and company~




Some features:

Automatic Plastic Polypropylene PE Hmwpe PVC PVDF Sheet Butt Welding Rolling Bending Machine/Plastic Bender

^1. PLC touch-panel control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.

^2. Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.

^3. Sectional heating for models of 3 meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.

^4. Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.

^5. Components imported from Japan for control system, with stable properties, lasting and endurable.

Our advantages:

1. Technology:Our machines can be customized. After browsing our products, if you have any special demands abou the machines, please let me know, we can meet your demands.
2. Services: Whenever you ask a question, we will provide the solution as soon as possible. Telephone communication, video communication, always available
3. Quality:Electrical appliances and accessories are all international brands, and have a long service life. You can buy them in your local at any time if you want to replace them.
4. The welding effect: The welding of the welded plates of many manufacturers' machines is not smooth, so there is always the danger of the board bursting. Our products avoid this.

Specifications:


Model	DZ3000
Horizontal Welding&Rolling Thickness	2-30
Processing Thickness(mm)	3-30
Processing Length(mm)	3000
Range of Rolling Diameter	Φ250-350
Pressure of Air Supply(kg.f/cm²)	6-8
Rated Voltage(V)	380
Heating Power(KW)	5
Power of Rolling Motor(KW)	0.75-1.1KW
Dimensions(mm)	4800x2450x1800
Applicable Materials	Plastic sheet/board made from PE, PP, PVC, PPS, PPN, PVDF

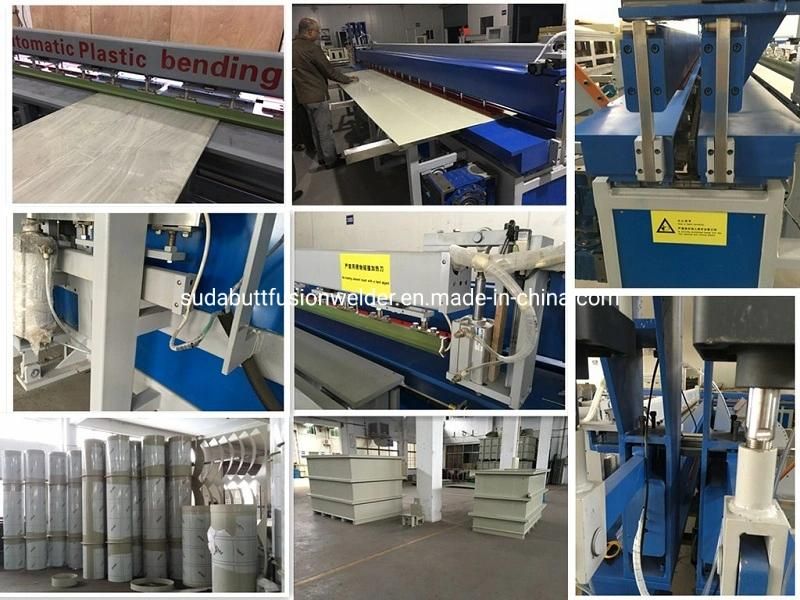

Some Photos:

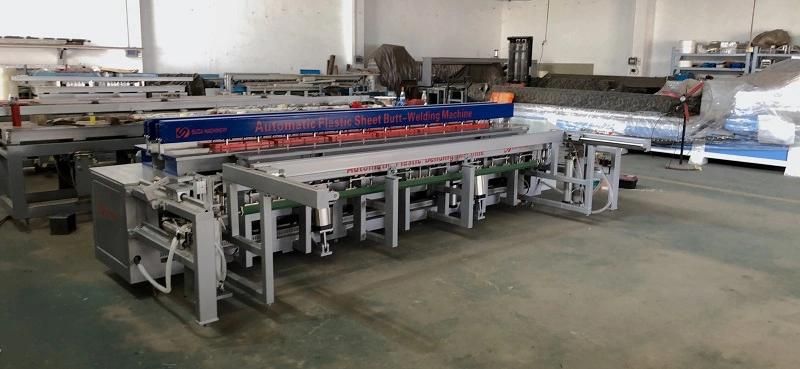

Our DZ series machine have three function: Welding, rolling, bending.









Company information

SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines,  Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
