• Model NO.：Sevenstars
• Customized：Customized
• Certification：CE, ISO9001:2008, UL
• Condition：New
• Transport Package：Seaworthy Packing
• Specification：CE ISO
• Trademark：Sevenstars Machinery
• Origin：Jiangsu Zhangjiagang
• HS Code：84778000
• Production Capacity：100 Set, Year

Basic Info.

Model NO. Sevenstars Customized Customized Certification CE, ISO9001:2008, UL Condition New Transport Package Seaworthy Packing Specification CE ISO Trademark Sevenstars Machinery Origin Jiangsu Zhangjiagang HS Code 84778000 Production Capacity 100 Set/ Year

Product Description

Double Stage PP/PE film pelletizing machine / plastic bags granulator line

PE PP Plastic film granulator / waste film pelletizing machine
1. Capacity: 100kg/h-800kg/h
2. Type: Water-ring pelletizing and stand type

Pp pe film pelletizing line/ Plastic film granulator
Usage:
This water-cooling single screw plastic pellet making machine is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted.
And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.

Characteristic:
1. Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy: Very strong and long life.
2. Easy operation: It has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign: Now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: It's the ideal waste plastics regenerative pelletizer machine for nowadays.

The process flow of 250kg PE pelletizing line as following: ---watering cutter
Screw feeder →Side force feeder→ SJ120/33 Extruding system →High speed screen exchanging→ SJ120/10 Extruding system → Water pelletizing machine→ Dewater machine→ Vibrator sieve → air blower system → Silo

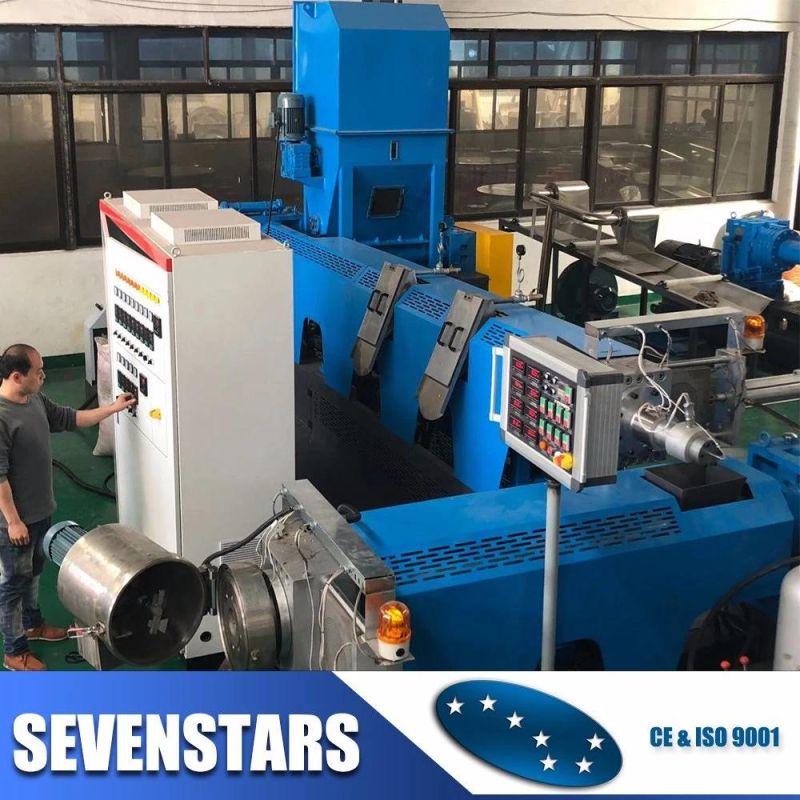

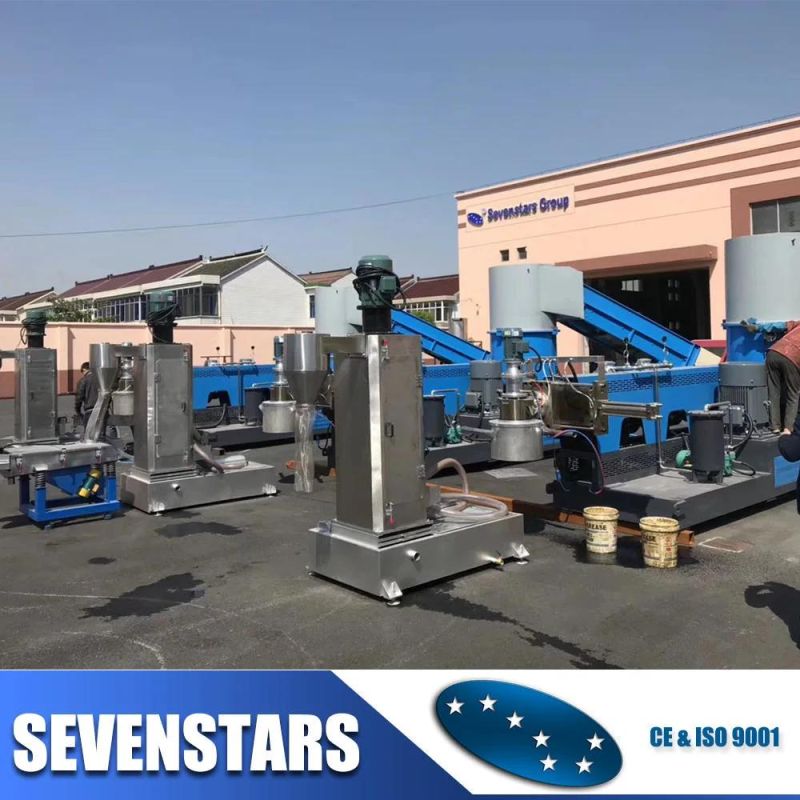

More pictures of the machine for your reference as below:
