• Model NO.：DL45
• Assembly Structure：Separate Type Extruder
• Screw：Single-Screw
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Finished Diameter：0.1-5.5mm
• Transport Package：Export Wooden Case
• Trademark：DL
• Origin：China
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. DL45 Assembly Structure Separate Type Extruder Screw Single-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Finished Diameter 0.1-5.5mm Transport Package Export Wooden Case Trademark DL Origin China Production Capacity 100 Sets/Year

Product Description

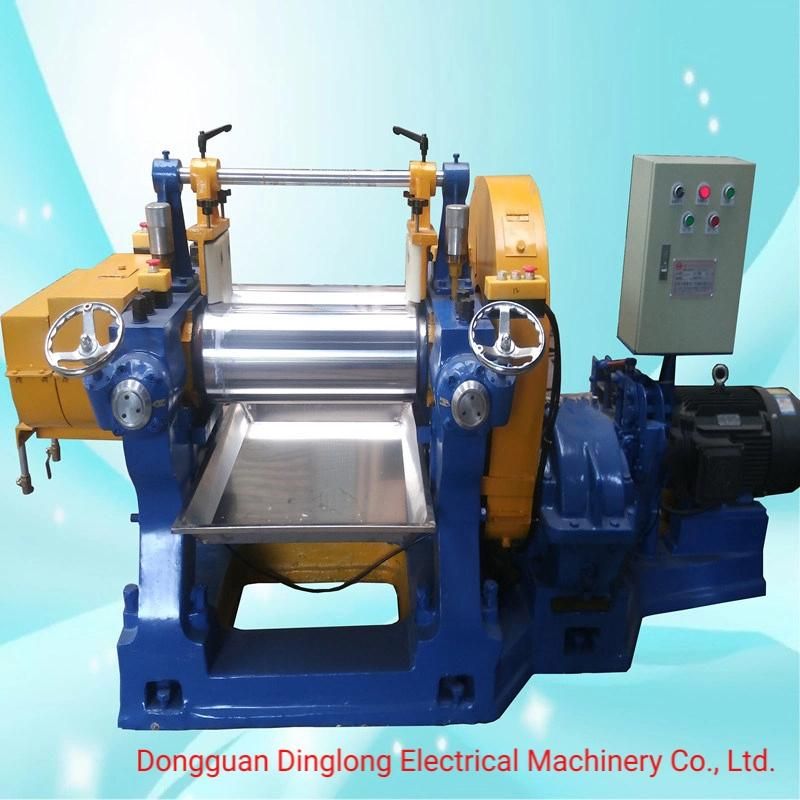

PVC/PP/PE/TPE Silicone Extruder Teflon Wire Stranding line  Rubber Mixing Mill Cable Automatic Feeder line  LED lamp belt  Equipment line
I Technical advantage (technology wins the market)

1, In 1997, we committed ourselves to the R & D and manufacturing of silica gel equipment and wire and cable equipment, with rich experience

2, Provide customers with solutions for various stages of silicone hose, wire, profile and cable production process, improve the equipment according to customers' products, and provide customers with the best equipment.

3, Provide customers with one-stop services such as plant planning, whole plant equipment investment planning, selection and allocation of developers and staff operation technology training.

4, New product development and certification technical support services. Our technicians are familiar with the production process of various silica gel products and national wire standards, the performance of various silica gel raw materials, and the development and certification of various electronic wires, silica gel wires, network wires, HDMI wires, power wires, Teflon wires, rubber wires and other products

5, With strong market share and good reputation, our company has gathered a large number of information about silica gel, cable materials and various conductors to provide good, most affordable and most convenient investment services.

II Team advantage (team building brand)

1, We have the most professional mechanical equipment design and R & D team in China to provide our customers with the most authoritative solutions to process difficulties and equipment shortcomings.

2, We have the most professional business team in the industry to provide our customers with the most considerate service, the most elaborate technical questions, the most comprehensive investment scheme, the most high-end silicone products and cable production technology.

3, We have the fastest service team in China, set up a 24-hour service hotline and stationed service teams all over the country to provide customers with timely and professional services.

4, We have the most stable production and manufacturing team in China to provide customers with punctual, high-quality and cost-effective mechanical equipment.

5, We have the largest industrial chain cooperative enterprise team in China, which can provide our customers with services other than equipment (rubber and conductor), and provide customers with free proofing and machine testing materials.

III Service advantage (service retention)

The company always attaches importance to customer requirements, has a strong sense of customer service, regularly provides customers with professional equipment maintenance services, has a perfect customer network, and can provide customers with fast localized personal services.

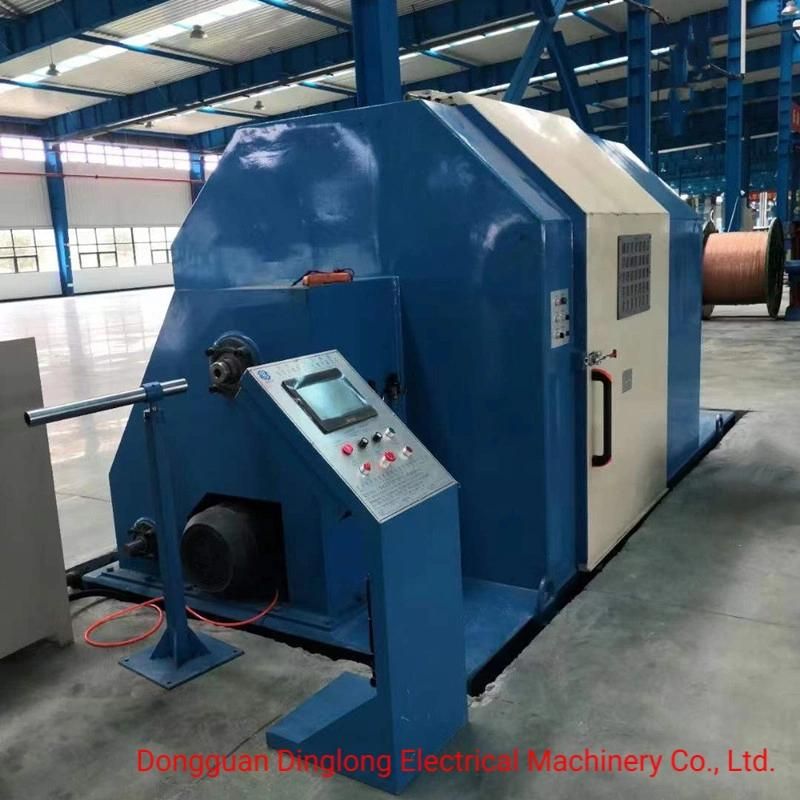

Single Twister
Application:apply to twisting of PVC/PE insulation wire and center/side taping for cable
Technical Specifications:


Machine modle	DL-300	DL-500	DL-630
Twisting section	0.035-0.937M	0.073-2.5M	0.8-6.7M
Diameter of single wire	0.05-0.28	0.08-0.45MM	0.16-0.63MM
Max speed	3000RPM	3000RPM	2000RPM
Power	3.7KW	5.5KW	7.5KW
Gross weight	30KG	150KG	550KG

Medical silicone tube extrusion line
Equipment application:suilable for precision extrusion of various silicone medical lubes such as silixone urinary catheter and infusion lube.

Technical specifications

	φ45	φ65	φ80
Finished hose  diameter	1.0-15MM	1.5-35MM	3.0-60MM
Line speed(max.)	30M/min	30M/min	30M/min
Extrusion output(max.)	60Kg/h	60Kg/h	100Kg/h
L/D	12:1	12:1	12:1
Extruder power	7.5+11KW	11+11KW	11+22KW
High lemperature curing length	0.5M-1.3M	0.5M-1.3M	0.8M-1.3M
Horizonlal curing length	6-8M	6-8M	8-10M
Capstna power	1.5KW	1.5KW	1.5KW

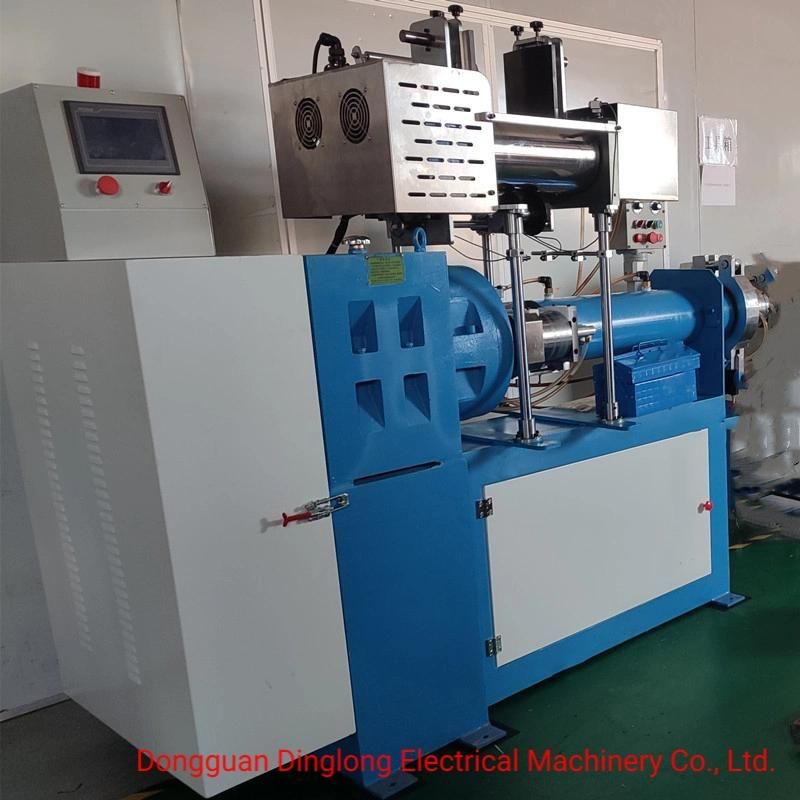

Silicone Hose Production Line
Technical Specifications:

	DL45	DL65	DL80	DL90
Finished hose diameter	1.5-30mm	1.5-30mm	3.0-60mm	5.0-80mm
Line speed (max.)	30m/min	30m/min	30m/min	30m/min
Extrusion output (max.)	60kg/h	70kg/h	100kg/h	150 kg/h
L/D	12:1	12:1	12:1	12:1
Extruder power	7.5KW	11KW	22KW	30KW
High temperature curing length	0.5m-1.3m	0.5m-1.3m	0.8m-1.3m	0.8m-1.3m
Horizontal curing length	6-8m	6-8m	8-10m	8-12m
Capstan power	0.75KW	0.75KW	0.75KW	0.75KW

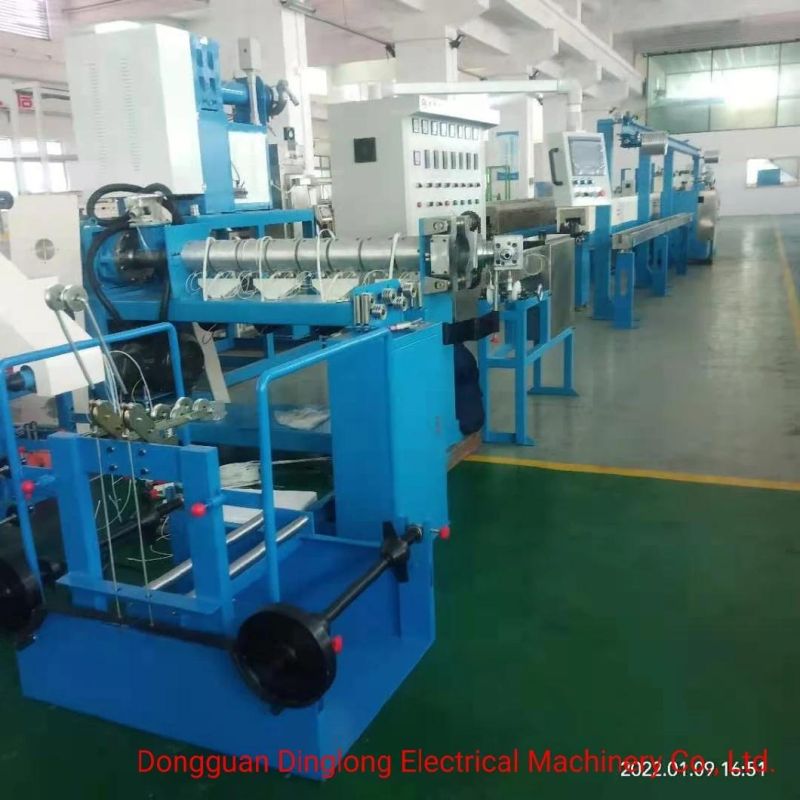

Silicone  heating cable extrusion line
Application:apply to extruding single core or sheath of silicone cable
Equipment components:

1. Payoff(driven,non-driven,pintle,shaftless,porlal type)
2. Preheater(optional)
3. Wire straighting device
4. Extruder
5. Diameter gauge
6. Ink jet printer or mark printer(optional)
7. Vulcanization tunnel
8. Cooling trough(optional)
9. Capstan wheel
10. Accumulator(optional)
11. Powder coater
12. Spark test
13. Take up(dual reel,pintle,shaftless,portal type)
14. Control panel(manual or PLC type)
15.  Technical Specification:

16. 	DL65	DL80	DL90
    Finished hose diameter	1.2-8mm	2.0-16mm	5-30mm
    Line speed (max.)	150m/min	150m/min	150m/min
    Extrusion output (max.)	70kg/h	150kg/h	200kg/h
    L/D	12:1	12:1	12:1
    Extruder power	11KW	22KW	30KW
    Curing length	16m	24m	24m
    Payoff reel	PN400-630	PN500-1000	PN800-1250
    Capstan power	2.2KW	5.5KW	7.5KW
    Take-up reel	PN400-630	PN500-1000	PN800-1250

    Technical parameters of two-color LED silicone light strip  Line

17. 	DL65+45	DL65+65	DL80+65	DL90+65
    Finished diameter	1.5-28MM	1.5-30MM	2.0-40MM	3.0-60MM
    Line speed	10M/min	10M/min	10M/min	10M/min
    Extrusion output	65Kg/h	70Kg/h	100Kg/h	150Kg/h
    Length diameter ratio of screw	12:1	12:1	12:1	12:1
    Extruder power	11KW	11KW	22KW	22KW
    Horizontal curing length	20M	20M	20M	24M
    Capstan power	1.5KW	1.5KW	1.5KW	1.5KW

Silicone Cable Extrusion Line
Application: apply to extruding core or sheath of silicone cable.
 Equipment Elevation
 Technical Specifications

	DL90	DL100	DL120	DL150
Finished diameter	5-30mm	10-40mm	15-50mm	20-70mm
Line speed (max.)	70m/min	50m/min	40m/min	30m/min
Extrusion output (max.)	200 kg/h	260 kg/h	350 kg/h	400 kg/h
	12:1	12:1	12:1	12:1
Extruder power	22KW	45KW	55KW	75KW
Payoff  reel	PN800-1250	PN800-1250	PN1250-1600	PN1600-2500
Curing length	24m	28m	30m	36m
Capstan power	7.5KW	10KW	15KW	20KW
Take-up reel	PN800-1250	PN800-1250	PN1250-1600	PN1600-2500

FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
      It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single piece of machine.
      We have seperate QC, delivery, sales and after-sales departments.
      Also strict management process from pre-sales to after-sales.
Q4: How is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi-auto machine, we will send manual instruction and teaching video.
      For complex operation, we will send the engineers overseas to help client installing, operating and training.

Our Services
What to provide customers with after-sales service?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee all customers fully to operate the machine, if a customer needs, we can help our customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part.
2) 6 month for electrical part.
3) Offer lifetime consultation on problems occurred.

Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruders.
3. LED strip equipment series.
4. Rubber processing machines.

Since our company was founded, over the past 13 yeas, our products have been extensively exported to Africa, Southeast Asia, Latin America, Europe and other markets.
