4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic ...

TAIZHOU TAISO MOULD CO., LTD.
  • Warranty:One Year
  • Type:Stretch Blow Molding Machine
  • Raw Material:PET
  • Making Method of Parison:Stretch Blow
  • Automation:Non-Automatic
  • Computerized:Computerized

Base Info

  • Model NO.:TS-S4-1.5L
  • Certification:CE, ISO9001:2008, QS, UL, GMP
  • After-sales Service:Free Service After Sales
  • Transport Package:Wooden Case
  • Specification:TS-S4-1.5L
  • Trademark:TAISO
  • Origin:China
  • HS Code:8477309000
  • Production Capacity:50sets,Month

Description

Basic Info.

Model NO. TS-S4-1.5L Certification CE, ISO9001:2008, QS, UL, GMP After-sales Service Free Service After Sales Transport Package Wooden Case Specification TS-S4-1.5L Trademark TAISO Origin China HS Code 8477309000 Production Capacity 50sets/Month

Product Description

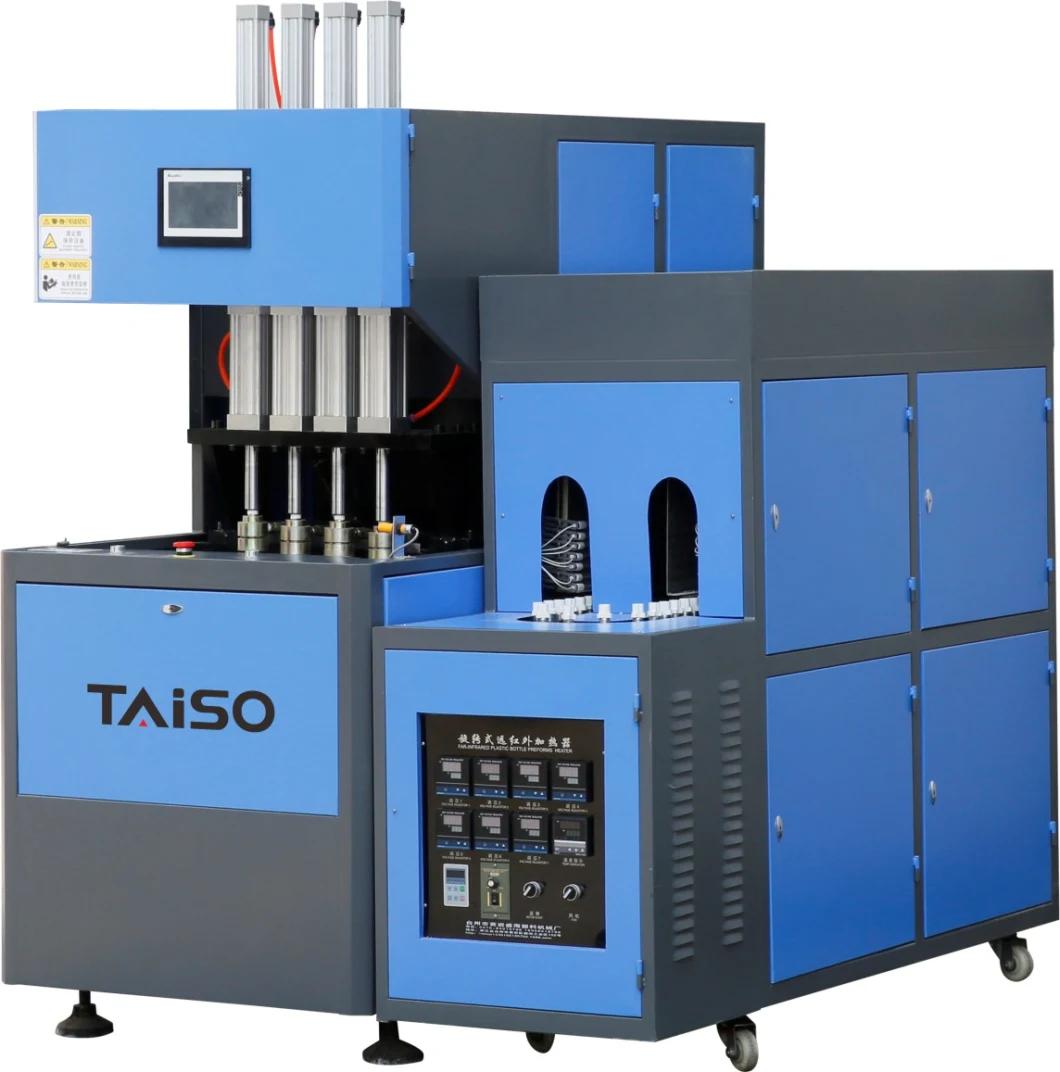

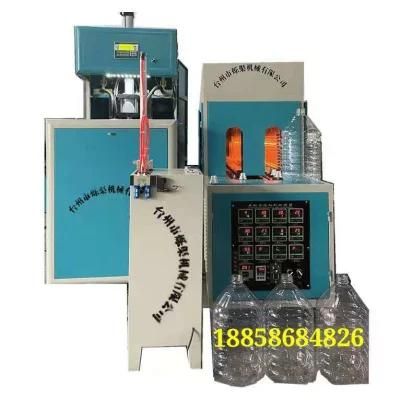

TS-S4-1.5L 4 cavities semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely TS-S4-1.5L is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Features

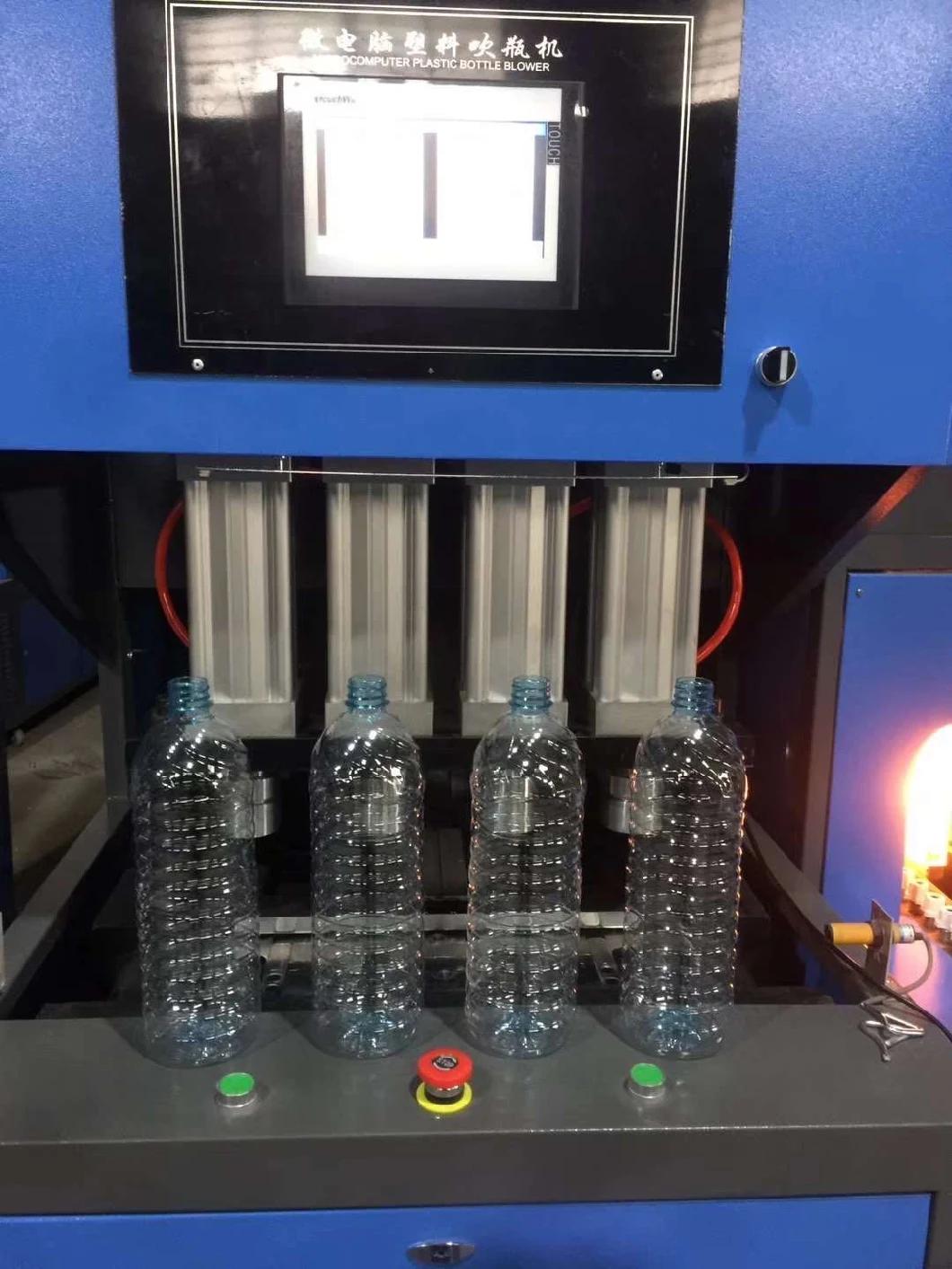

1. Produce bottle from 0.1L to 1.5L(4 cavities)
2. Output capacity up to 2000 bottles/hour  for 0.6L using four -caviti blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit

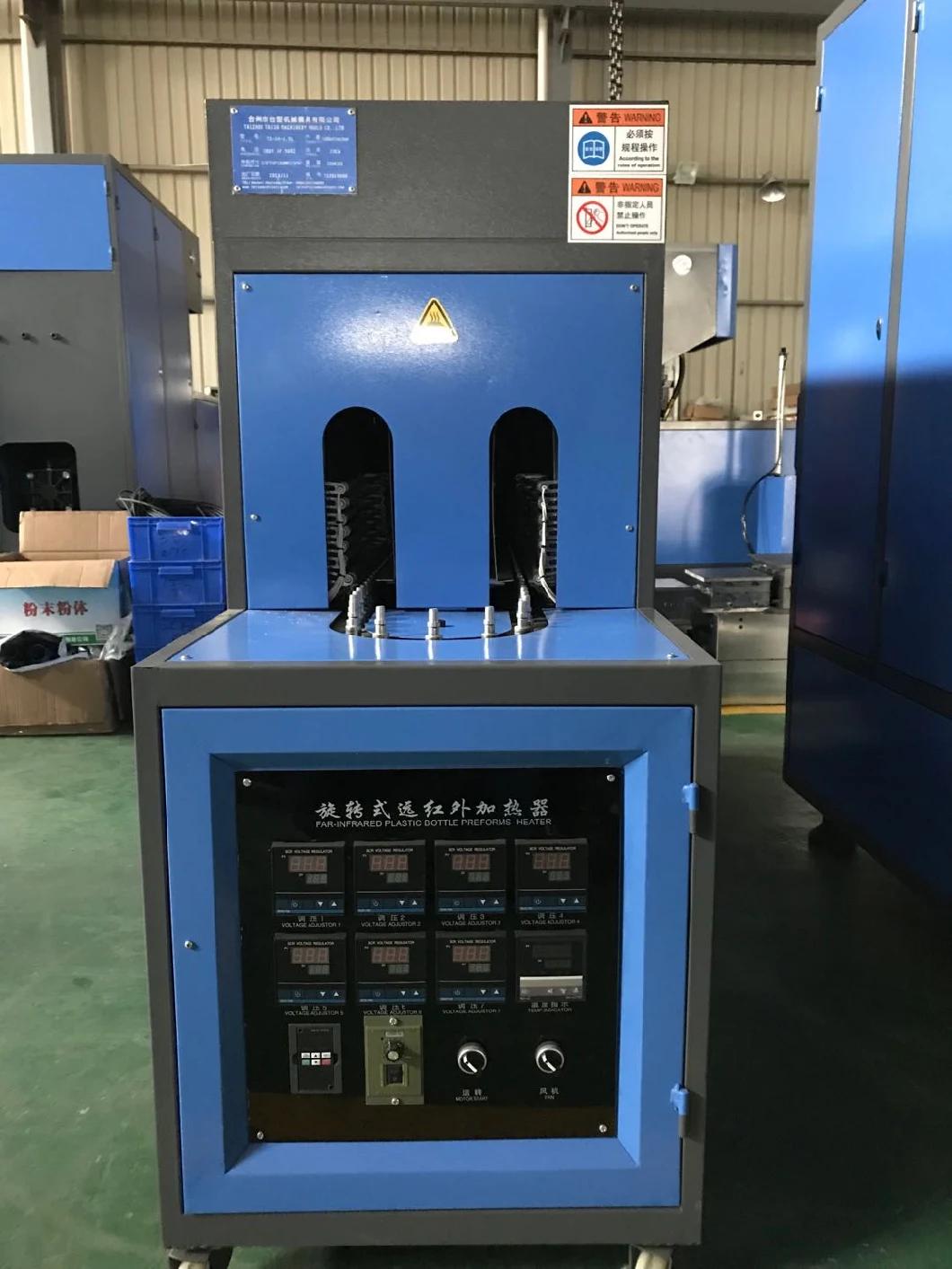

5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China

4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China

4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China
4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China


4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China
4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China
4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China
4 Cavities Semiautomatic Blow/Blowing Molding/Molding Machine/Plastic Machinery/Plastic Machine/ Blowing Machine Made in China
ModelTS-S4-1.5L
(1 Blower & 1 Heater)
Max. Volume1.5L
Output1600-2000BPH
Number of Cavities4 Cavities
Neck diameter18-38mm
Max. diameter105mm
Max. Bottle height330mm
Mold thickness70-230mm
Clamping stroke190mm
Rated power25kw
Power consumption10-15kw
Blower size1620*820*1950mm
Heater size2160*600*1350mm
Weight1200kgs
