• Model NO.：MT980
• Customized：Customized
• Condition：New
• PVC Glazed Tile Production Line：PVC Glazed Tile Extrusion Line
• PVC Corrugated Tile：Wave Tiles
• Tile Making Machine：PVC Tile Making Machine
• Tile Width：980mm
• Tile Thickness：3mm

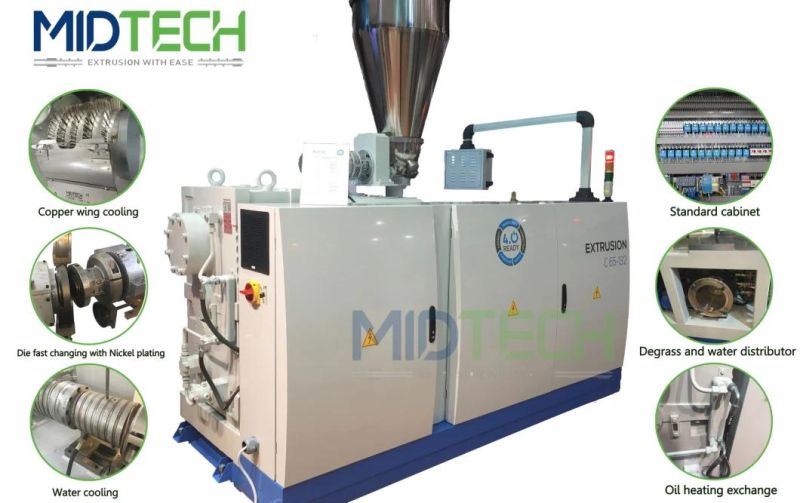

• Extruder：Conical Twin Screw Extruder
• Motor Power：30kw
• Barrel：Bimetallic
• Capacity：400kg
• Motor：Weg Motor
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：1

Basic Info.

Model NO. MT980 Customized Customized Condition New PVC Glazed Tile Production Line PVC Glazed Tile Extrusion Line PVC Corrugated Tile Wave Tiles Tile Making Machine PVC Tile Making Machine Tile Width 980mm Tile Thickness 3mm Extruder Conical Twin Screw Extruder Motor Power 30kw Barrel Bimetallic Capacity 400kg Motor Weg Motor Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84772090 Production Capacity 1

Product Description

 Wholesale Price Plastic PVC/UPVC+PMMA/ASA+PC/PP Corrugated/Glaze tile /Bamboo Roof/wave roofing Tile Sheet/board Extrusion making machine

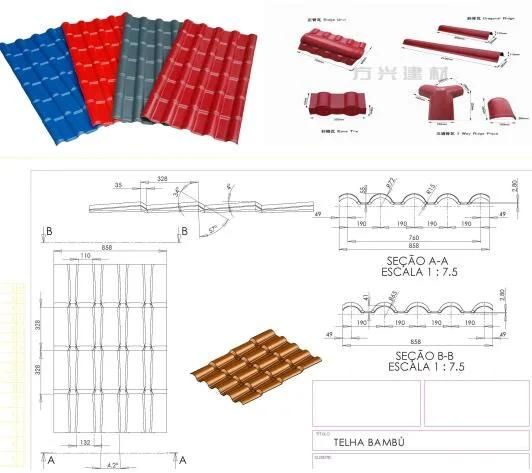

PVC glazed tile is a type of asbestos-free composited sheet, extruded based on PVC resin, co-extruded with ASA, PMMA engineering plastic. It's mainly applied in the building construction, to meet high quality roofing tile demand.

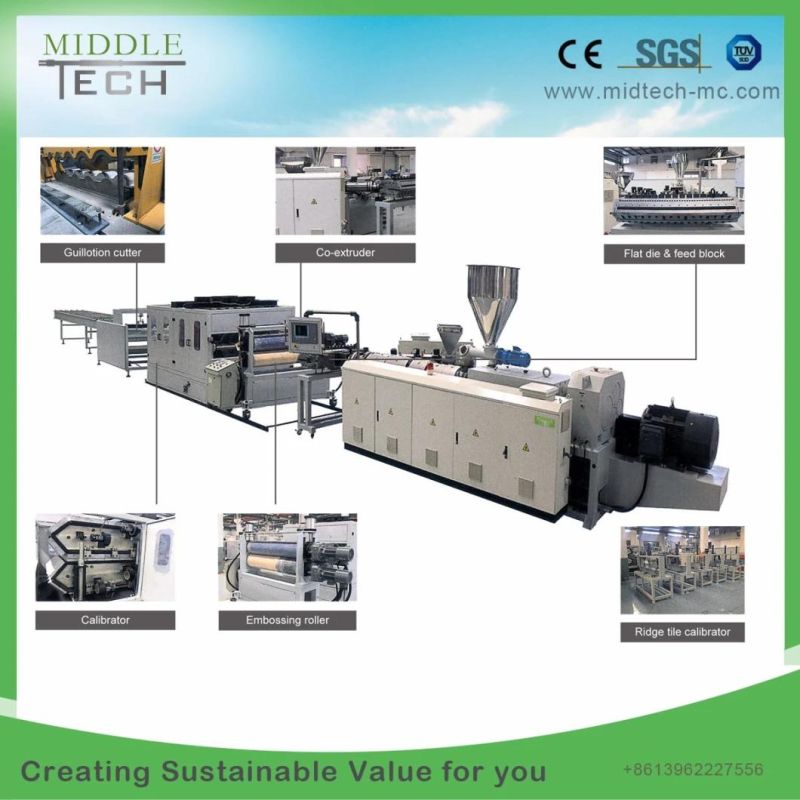

    PVC glazed tile extrusion line consists of premixing units, conical extruder, co-extruder, T-die mold, calibration device, embossing rollers, saw cutter, hauling set, etc.

   Process is: premixing the PVC resin with fillers, additives, then extrude the mixed PVC materials together with ASA/PMMA co-extruding, to T-die molding; after calibration, embossing, cutting, to make the final PVC tile.

   Middle Tech can provide the complete solution for glazed tile extrusion, includes: machinery equipment( from premixing device to final tiles packing system), ackonwledge  (fomulation, process operations), installation and trainning etc.

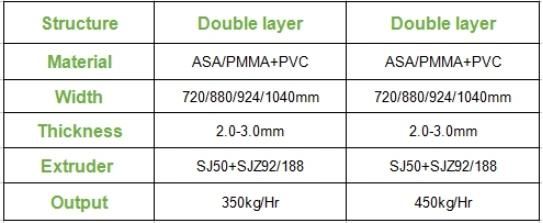

Specifications of PVC glazed tile:



Advantages:
· Bright and colorful
· Resilient and durable-above 20 years
· Excellent insulation, flame retardant
· Corrosive proof and strong weather resistance
· Free cut, easy installation
