Economical Cheap Small Plastic Recycling Crushing Grinder Machine Chipper Granulator
Wuxi DGM Environmental Technology Co., Ltd.- Material Processed：Plastic Flakes
- Plastic Type：PE
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：ISO9001:2008, CE, BV
Base Info
- Model NO.：DGE
- Motor：Weg
- Electronic Components：Kloeckner Moeller
- Safety Switch：Schmersal
- PLC Cabinet：Rittal
- Triangle Belt：Optibelt
- Bearings：Heavy Duty Bearings
- Rotor：Wide Choice of Rotor Variations
- Mechanical Material：Q345
- Knife Materials：D2, SKD11
- Rotor Diameter：590-700mm
- Stator Knives：2 Rows
- Screen Size：10-50mm
- Transport Package：Stretch Film, Wood Pallet
- Specification：DGE300-700
- Trademark：DGM
- Origin：Wuxi, China
- HS Code：84778000
- Production Capacity：2000sets Per Year
Description

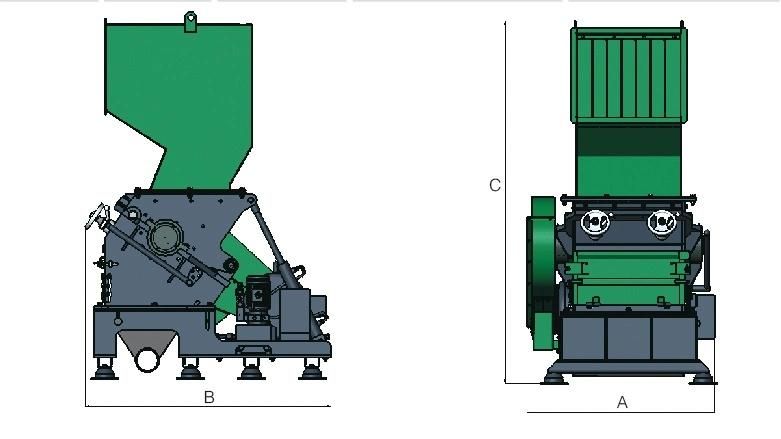

ITEMUNIT DGE300/600 DGE300/1000 DGE500/700 Rotor Diameter mm 300 300 500 Rotor Width mm 590 990 700 Rotor Knives pcs 3*2 3*2 3*2 Stator Knives row 2 2 2 Cutting Chamber Dimensions mm 315*900 315*900 540*700 Motor Power kw 11-18.5 18.5-22 30-45 Dimensions A mm 1380 1620 1330 B mm 1800 1300 1680 C mm 1960 1960 2510 ITEM UNIT DGE500/1000 DGE700/700 DGE700/1000 Rotor Diameter mm 500 700 700 Rotor Width mm 990 700 990 Rotor Knives pcs 3*2 5*2 5*2 Stator Knives row 2 2 2 Cutting Chamber Dimensions mm 540*900 780*700 780*990 Motor Power kw 37-45 45-55 45-75 Dimensions A mm 1650 1410 1680 B mm 1910 2050 2050 C mm 2510 2910 2910
Layout
Features
Options
Applitions
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and curshers machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts by LCL, air or international express.
4. Excellant logistic team to guarantee the shredder and granulators machines to be safely shipped to customer appointed loaction.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with more than 15 years experience in machinery manufacturing, and 25 years experience in German technology.
Q2: Will you provide pre-sale services ?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent ?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: what is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Mobile : +86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Layout
Features
- Complete soundproofed enclosure
- Deflector wedge
- V-cut technology
- Heavy duty bearings
- Oversized external bearing housings
- Knives are externally adjustable
- Robust welded steel construction
- Wide choice of rotor variations
- Electrical hydraulic control - to open housing
- Electrical hydraulic control - to open screen cradle
- Replaceable wear plates
- Amp meter control
- Integrated control panel
Options
- Soundproof conveyor channel
- Extra flywheel
- Double infeed hopper
- Roller feeder
- Mounted screw feeders in hopper Winding protection
- Metal detector
- Metal separator
- Bespoke colour scheme
- Increased motor drive
Applitions
- PLASTICS
- RUBBER
- WOOD
- BIOMASS
- PAPER
- ALTERNATIVE FUELS (RDF/SRF)
- DOMESTIC & COMMERCIAL WASTE

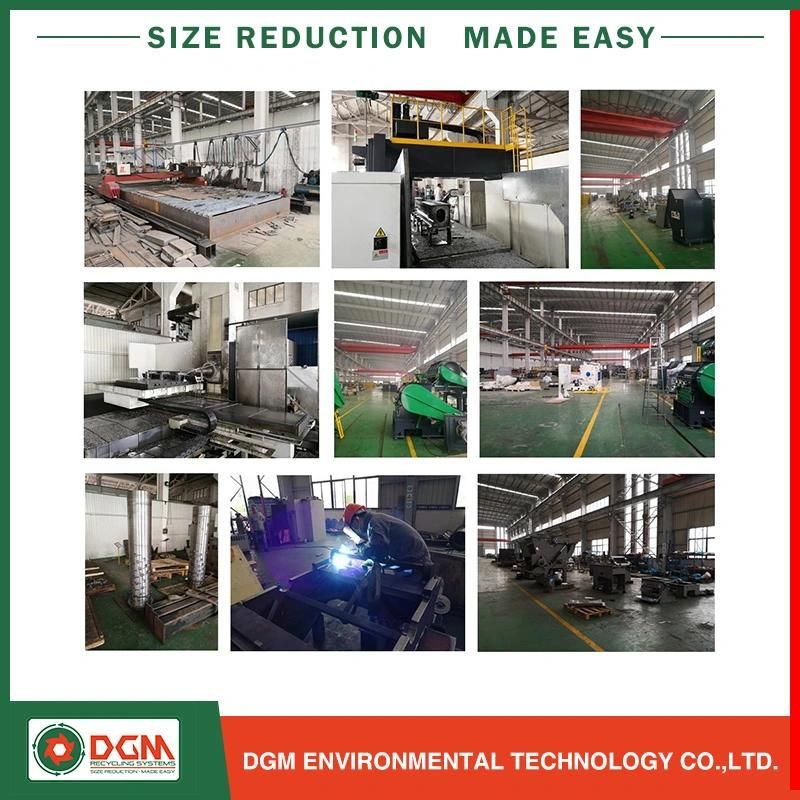

Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and curshers machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts by LCL, air or international express.
4. Excellant logistic team to guarantee the shredder and granulators machines to be safely shipped to customer appointed loaction.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with more than 15 years experience in machinery manufacturing, and 25 years experience in German technology.
Q2: Will you provide pre-sale services ?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent ?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service.
We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: what is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Mobile : +86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
