1L 3L 5L Plastic Bottle Jerry Can Blow Molding Machine
Zhangjiagang Apollo Machinery Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：PP,PE,HDPE So on
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：ABLB65I
- Max. Product Volume：5L
- Application：Bottles,Jars,Jerry Cans,Gallons,Containers
- Die Head：Single or Double
- Station Option：Single or Double
- Auto-Deflashing：Yes
- Auto-Lubrication：Yes
- Servo System：German Dmass Servo System
- Suitable Material：HDPE, PP, PVC, PS, EVA, PETG, LDPE
- Delivery Time：45 Days
- Guarantee：1 Year
- Transport Package：Film Packing
- Specification：CE,SGS
- Trademark：APOLLO
- Origin：Zhangjiagang City, Jiangsu Province, China
- HS Code：8477301000
- Production Capacity：800*2PCS,H
Description
Basic Info.
Model NO. ABLB65I Max. Product Volume 5L Application Bottles,Jars,Jerry Cans,Gallons,Containers Die Head Single or Double Station Option Single or Double Auto-Deflashing Yes Auto-Lubrication Yes Servo System German Dmass Servo System Suitable Material HDPE, PP, PVC, PS, EVA, PETG, LDPE Delivery Time 45 Days Guarantee 1 Year Transport Package Film Packing Specification CE/SGS Trademark APOLLO Origin Zhangjiagang City, Jiangsu Province, China HS Code 8477301000 Production Capacity 800*2PCS/HProduct Description

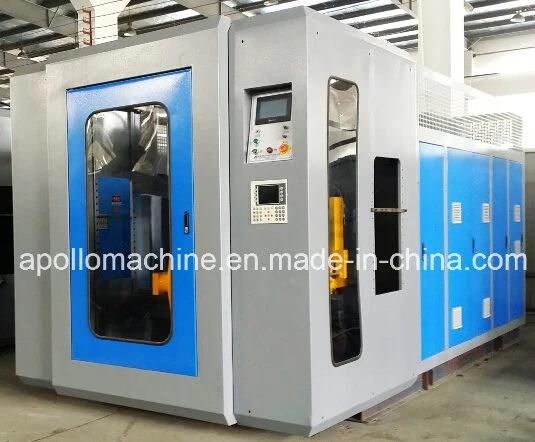

ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
The technical parameter of the machine:
| Max. Product volume | 5 liters |
| Out put capacities | 150~180pc/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 65KN |
| Max.size of mold | 148-568mm |
| Mold stroke | 330 X 370mm |
| Max.die diameter | 160mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.6 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 50 L/MIN |
| Size of Machine | 3.1x1.5x2.7m |
| Weight of machine | 5.5 ton |

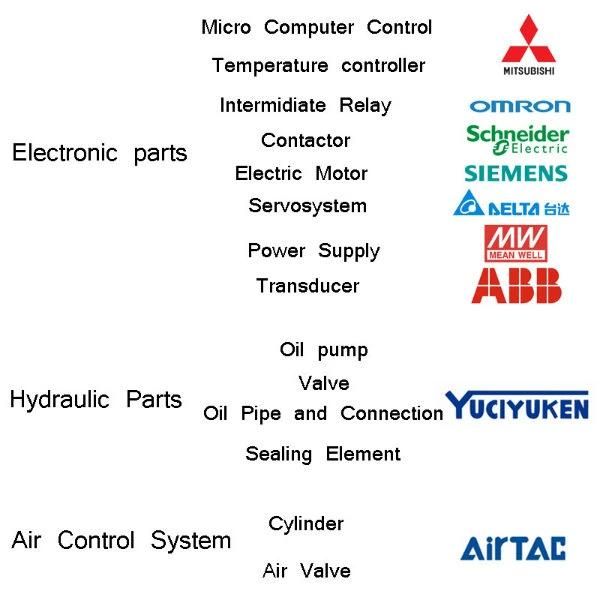

The component of the machine:
