• Model NO.：ST-65
• Condition：New
• Stable Sizing and Cooling System：Strong Tech Team
• Clean Working Environment：Stable Plasticization
• High Output：Low Energy Consumption
• Steady Operation：Lomg Use Life
• Transport Package：Wooden
• Specification：CE
• Trademark：Sana-tory
• Origin：China
• HS Code：84778000
• Production Capacity：300kg,h

Basic Info.

Model NO. ST-65 Condition New Stable Sizing and Cooling System Strong Tech Team Clean Working Environment Stable Plasticization High Output Low Energy Consumption Steady Operation Lomg Use Life Transport Package Wooden Specification CE Trademark Sana-tory Origin China HS Code 84778000 Production Capacity 300kg/h

Product Description

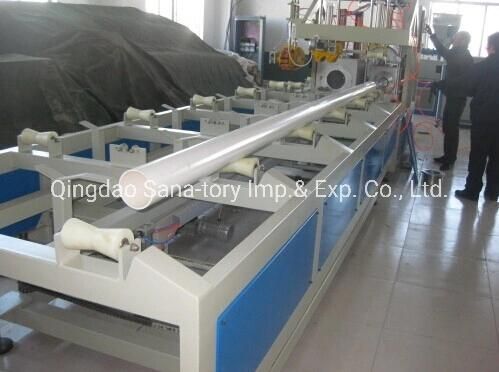

Plastic Extruder Machine / PVC Pipe Extrusion Production Line

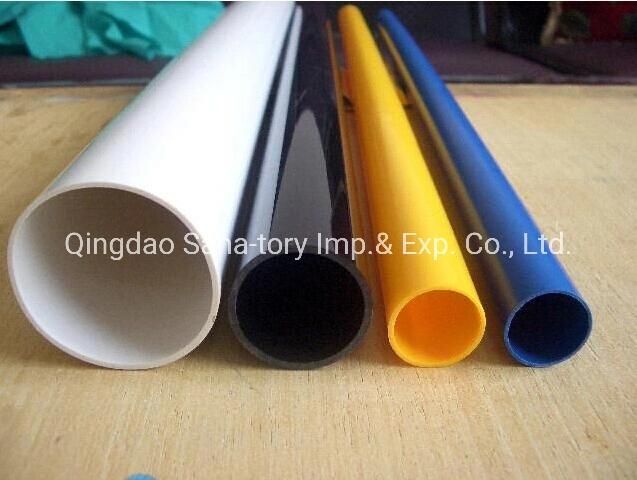

This series of pipe extrusion lines are mainly used to produce PVC drainage pipes and U-PVC, C-PVC water supply pipes.

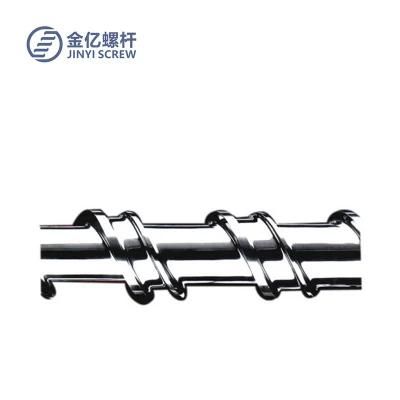

Advanced design for screws supplies powerful safeguard for the PVC plasticization.

Unique inside oil controlling temperature system adapts different technology formulas.

Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.

Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.

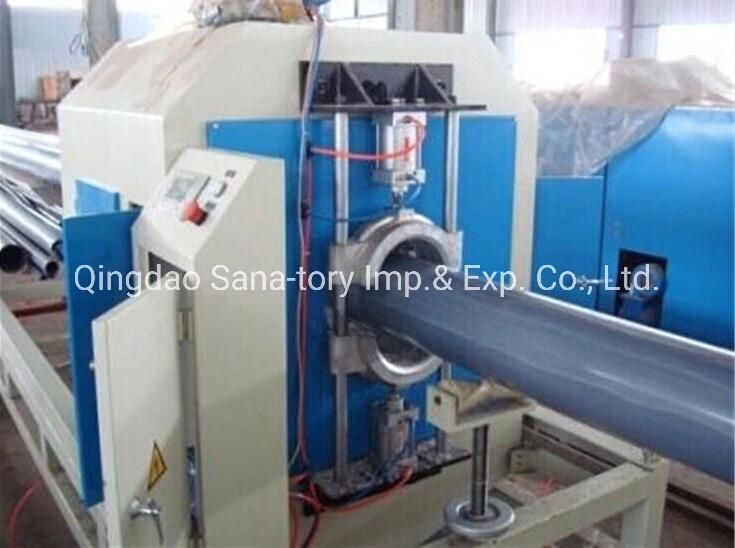

Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit,which ensures the clean working environment.

Main  extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main  motor  power(KW)	22	37	55	110
Pipe  diameter(mm)	16-63mm	75-160mm	200-400	400-630
Hauling  speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total  power(KW)	89	95	135	255
