• Model NO.：SJSZ 80,156
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Use：PV Pipe Production Line Extrusion Machine
• Producted Pipe Diameter：16-800mm
• Main Motor：Siemens
• Control：PLC
• Contactor：Schneider
• Temperature Control Ler：Omron
• Machine Color：Optional
• Voltage：380V50Hz
• Capacity：100-1000kg,H
• Inverter：ABB Brand
• Transport Package：Seaworthy Packing PVC Pipe Production Line
• Specification：CE&ISO for PVC pipe production line
• Trademark：Sevenstarts PVC pipe production line
• Origin：China
• HS Code：84772090
• Production Capacity：100 Set,Year

Basic Info.

Model NO. SJSZ 80/156 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Use PV Pipe Production Line Extrusion Machine Producted Pipe Diameter 16-800mm Main Motor Siemens Control PLC Contactor Schneider Temperature Control Ler Omron Machine Color Optional Voltage 380V50Hz Capacity 100-1000kg/H Inverter ABB Brand Transport Package Seaworthy Packing PVC Pipe Production Line Specification CE&ISO for PVC pipe production line Trademark Sevenstarts PVC pipe production line Origin China HS Code 84772090 Production Capacity 100 Set/Year

Product Description

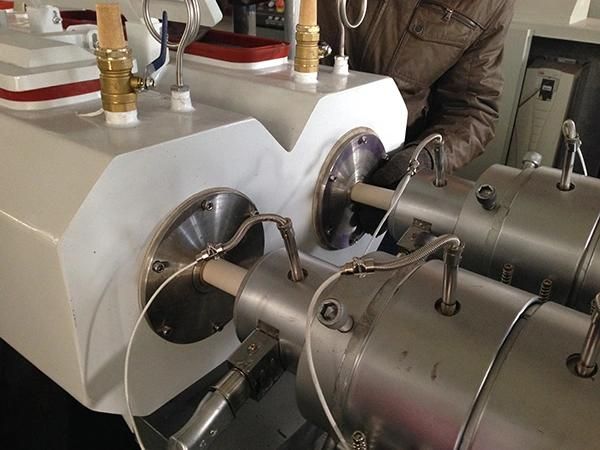

New type high output PVC water pipe making machine PVC pipe extrusion machine PVC pipe making machine PVC pipe extrusion line PVC pipe production line with low power consumption and high efficiency

Features of PVC pipe production line extruder machine

1) It is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

2) The set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.

3) The extruder and haul-off machine adopt the imported AC frequency control device.

The vacuum pump and hauling motor employ superior goods.

4) Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.

5) It is additionally attched with length measuring apparatus and thickness increasing device.

6) The unit is of reliable performance and high production efficiency.

The pipe diameter is mainly from Φ 16mm-Φ 630mm. We also can design the machine according to your requirement

Main parameter of PVC pipe production line extruder machine

Extruder model	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	100000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB
Contactor brand	Schneider	Schneider	Schneider	Schneider	Schneider
Temperature brand	OMRON	OMRON	OMRON	OMRON	OMRON
