• Model NO.：JWZ-BM30,50,100 Blow Molding Machine
• Die Head Structure：Accumulating Type
• Max Product Volume：30L,50L,100L
• Main Screw Diameter：80mm,90mm,100mm
• Max Plasticizing Capacity(PE)：120,180,190 Kg,H
• Total Power：95kw,110kw,135kw
• Transport Package：Exported Standard Packing
• Trademark：JWELL
• Origin：China
• HS Code：84774010
• Production Capacity：1 Pieces

                 Accumulating type  Accumulating type  Accumulating typeMain screw diametermm8090100Max plasticizing capacity (PE)kg/h120180190Driving motorKw374555Accumulating volumeL5.26.212.8Oil pump motor powerKw1518.522Clamping forceKN280400600Space between platenmm400-900450-1200500-1300Platen size W*Hmm740*740880*8801020*1000Max. mold sizemm550*650700*850800*120Heating power of die headKw202830Machine dimension L*W*Hm4.3*2.2*3.55.6*2.4*3.85.5*2.5*4.0Machine weightT1213.516Total powerKw95110135
Note: information listed above are for reference only, the production line can be
designed by customer's requirements.

Control system
Control system

SIEMENS human-machine interface

Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on
the screen.



B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.

Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

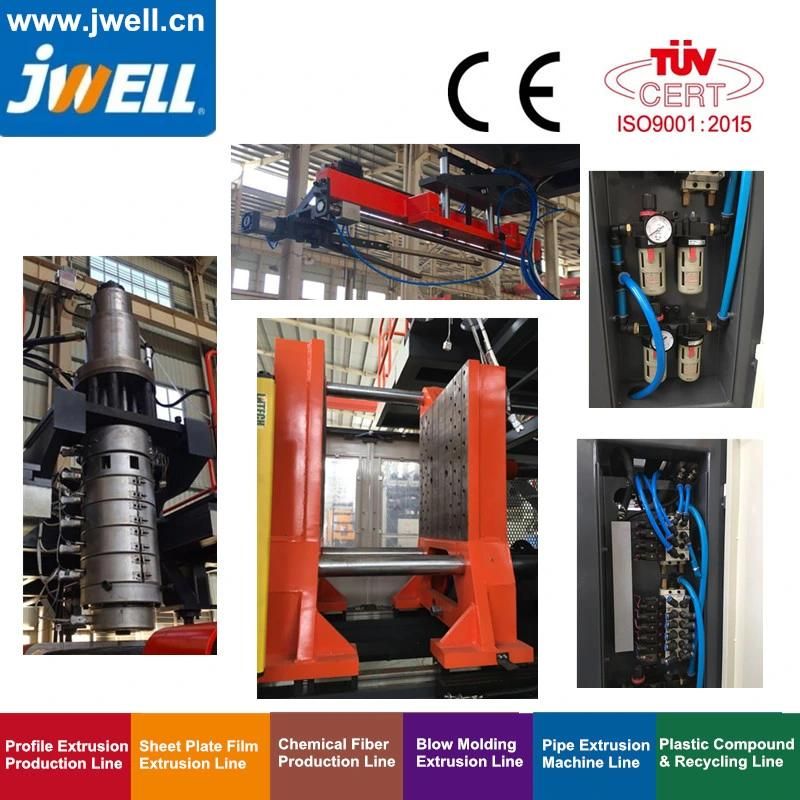

Extrution & Die head
The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.

JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.

Blowpin system

Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)

Output system

Take out robot
Scrapping collect together, convey,crusher into one unit

Hydrulic system

Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.

Open&Closing system

Common three platen and three tie bar struction
Toggle struction

Lubrication system

This auto-lubrication system can lubricate the system with a set cycle automatically.

Electric system

1. SIEMENS CPU unit
2. SIEMENS temperature-control unit
3. SIEMENS digital-output unit
4. SIEMENS analog-output unit
5. MITSUBISHI CPU unit
6. JWELL invertor revolving speed-control
7. Schneider electric components



FAQ

1. What are JWELL coming from?

Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, Liyang.

2. Why should I choose Jwell?

We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology,  qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.



CONTACT JWELL, CONTACT MICHAEL CHEN, CONTACT SUCCESS!

Cell no/+ 86158 0622 8266

JWELL -   Blow Molding Machine



All Key parts: screw&barrel,melt pump, screen changer, mold, and downstream equipment are made by Jwell factory!

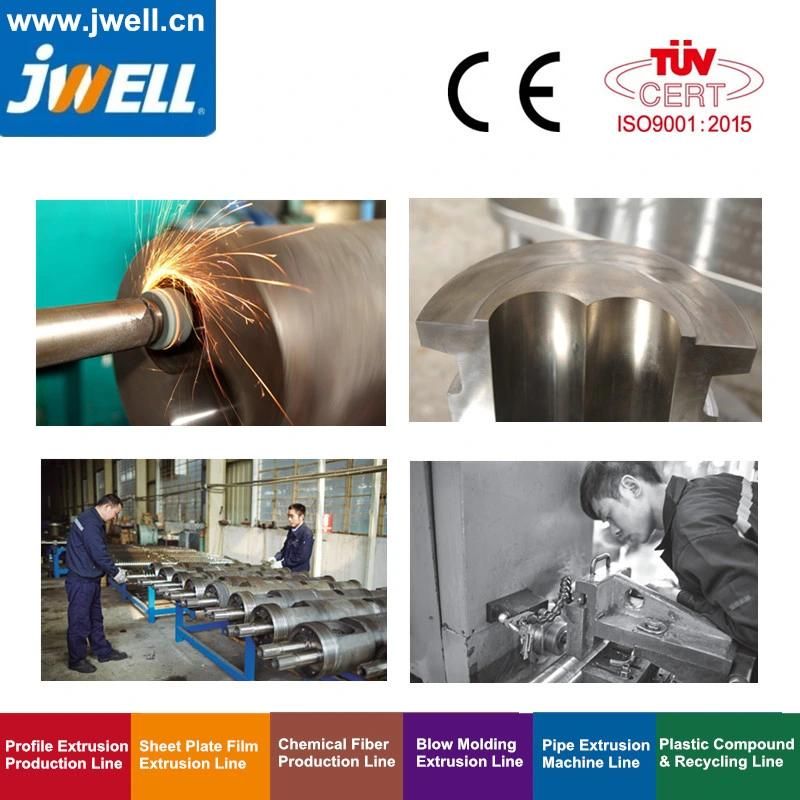

Screw making




CNC workshop


Factory





Mostly welcome to new and old customers to visit us for investigation, guidance and cooperation. We are happy to offer powerful support!
