• Assembly Structure：Integral Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Woodcase
• Specification：3500*1500*2500
• Origin：China
• HS Code：8477800000
• Production Capacity：10000 Lines Per Year

Basic Info.

Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Woodcase Specification 3500*1500*2500 Origin China HS Code 8477800000 Production Capacity 10000 Lines Per Year

Product Description

50-250mm High Speed Plastic PE PP PPR Pipe Making Extrusion Machine Line
This pipe production line is mainly used for producing large diameter HDPE/LDPE/PE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
Features:

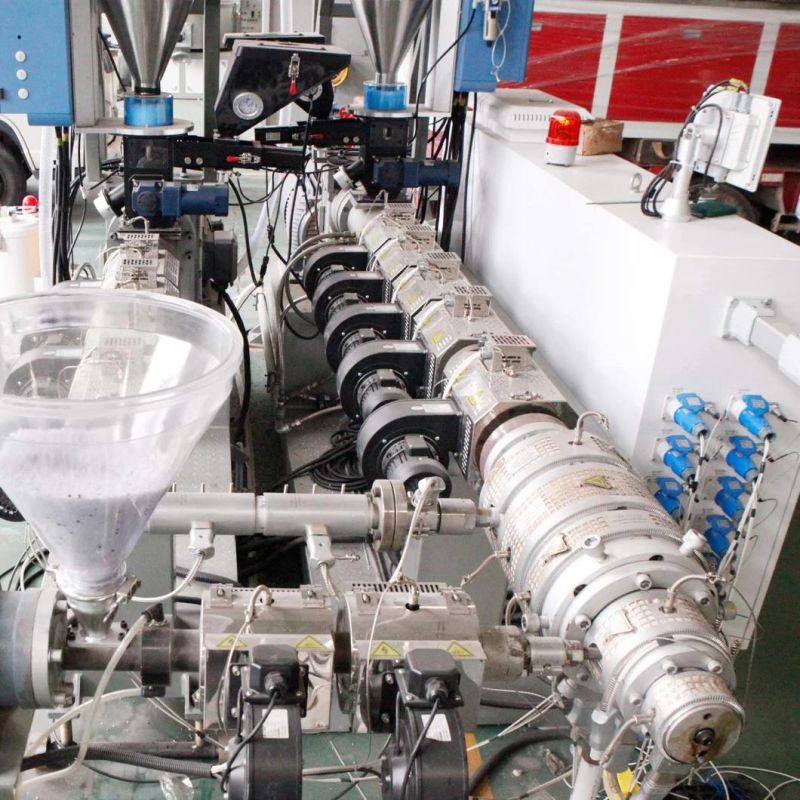

High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Constituent of plastic making machine:
1. Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy;
2. Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling;

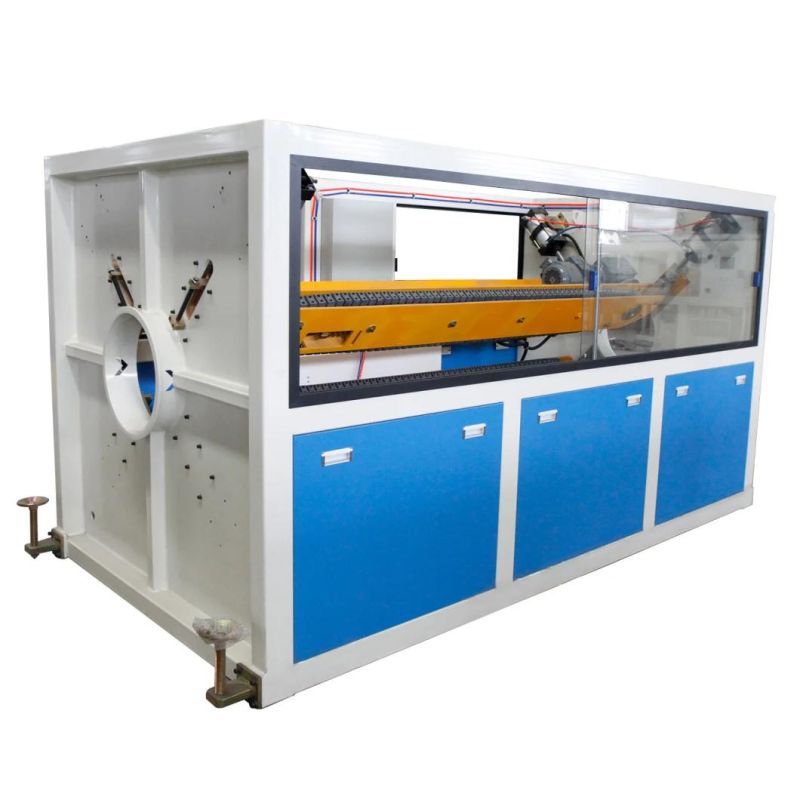

3. Adopts multi claws haul-off unit, speed adjusted by frequency inverter;

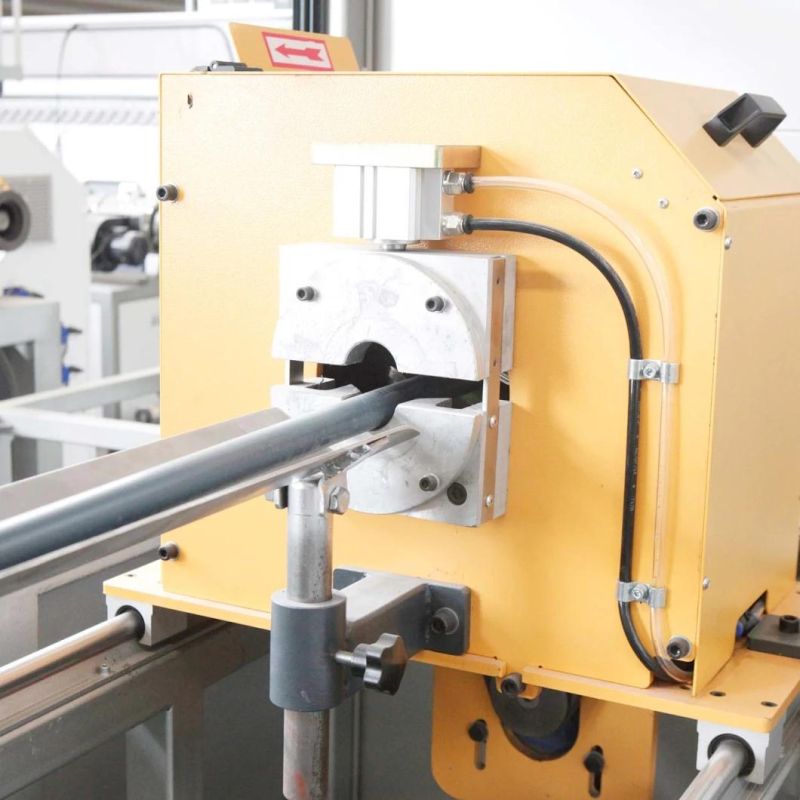

4. Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe;
5. Equipped with pipe-making line;
6. Small diameter use winding machine. Large dimaeter pipe used stacker.


Main technical parameters:

Extruder model	Pipe diameter	Extruder	Output	Power	Extruder Power
SJ45	16~32mm	SJ45/30 SJ25/25	30~60kg/h	40kw	22kw
SJ65	20~75mm	SJ65/33 SJ25/25	80~120kg/h	65kw	37kw
SJ75	50~160mm	SJ75/33 SJ25/25	80~150kg/h	150kw	75kw
SJ90	75~250mm	SJ90/33 SJ25/25	280~350kg/h	200kw	110kw
SJ120	160~315mm	SJ120/33 SJ30/25	300~450kg/h	280kw	185kw
SJ150	315~630mm	SJ150/33 SJ30/25	550~800kg/h	420kw	285kw
