Plastic One Shaft Powerful Shredder
GUANGZHOU PANYU QIANGYE MACHINERY CO., LTD.- After-sales Service:Video Supprt
- Warranty:1 Year
- Type:Powerful Plastic shredders
- Raw Material:PP
- Structure:Tangential Feed
- Knife Classification:Single Shaft
Base Info

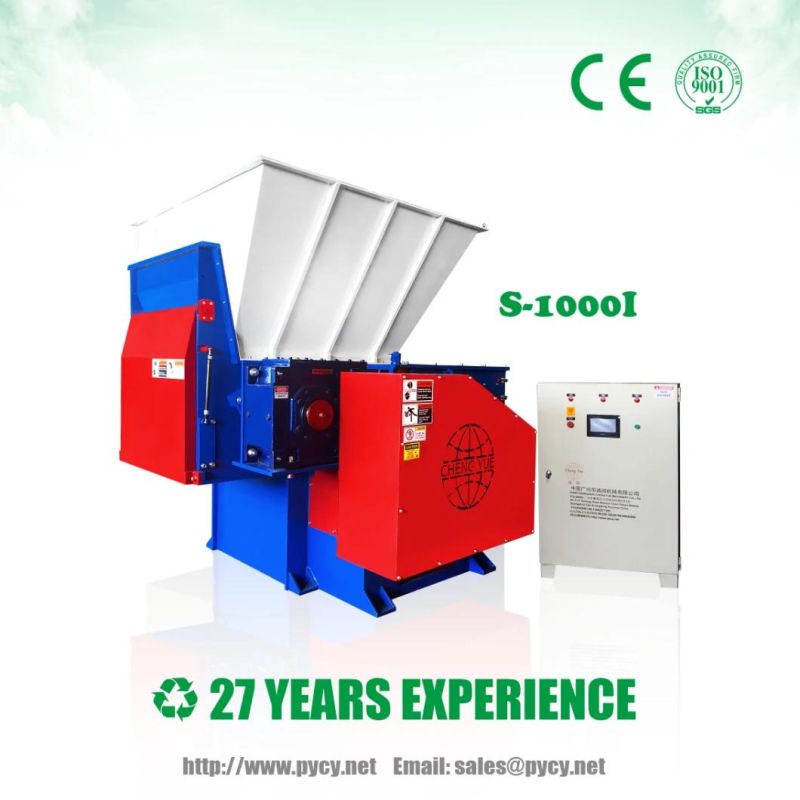

- Model NO.:S-1000
- Knife Roll:Solid Knife Roller
- Automation:Automatic
- Computerized:Computerized
- Name:Plastic Single Shaft Shredder
- Function:Shredding Rigid Plastic
- Transport Package:Wrap Film
- Specification:2975*2450*2460
- Trademark:QIANG YE
- Origin:China
- HS Code:8479820090
- Production Capacity:100sets,Year
Description
Basic Info.
Model NO. S-1000 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Name Plastic Single Shaft Shredder Function Shredding Rigid Plastic Transport Package Wrap Film Specification 2975*2450*2460 Trademark QIANG YE Origin China HS Code 8479820090 Production Capacity 100sets/YearProduct Description
Single shaft shredder /industrial shredders for waste materials,lumps,wove bagsMain description:
It is mainly used to crush various big solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper, which the normal crusher can not handle.
Properties:

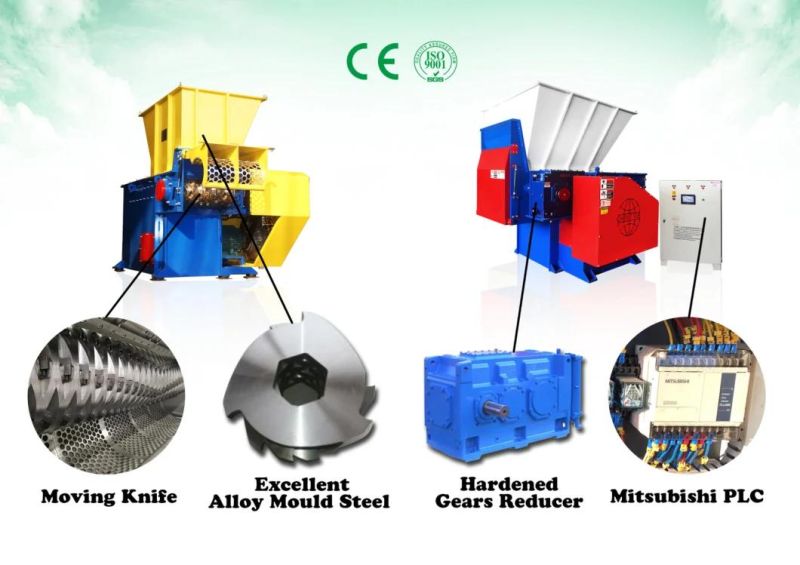

1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;

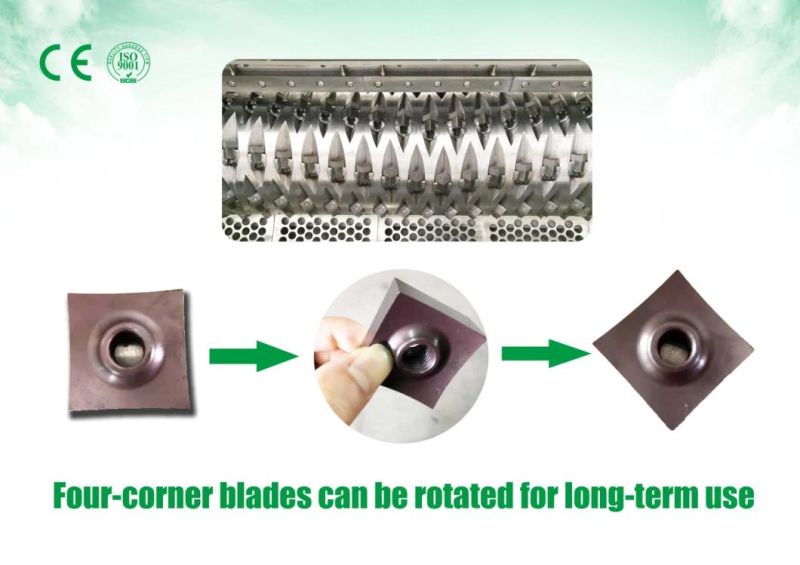

3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;
5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;

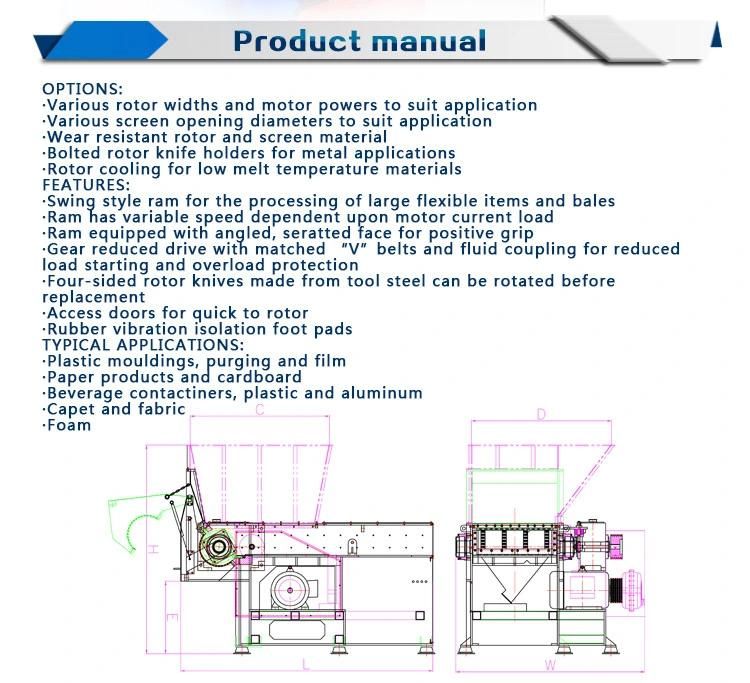

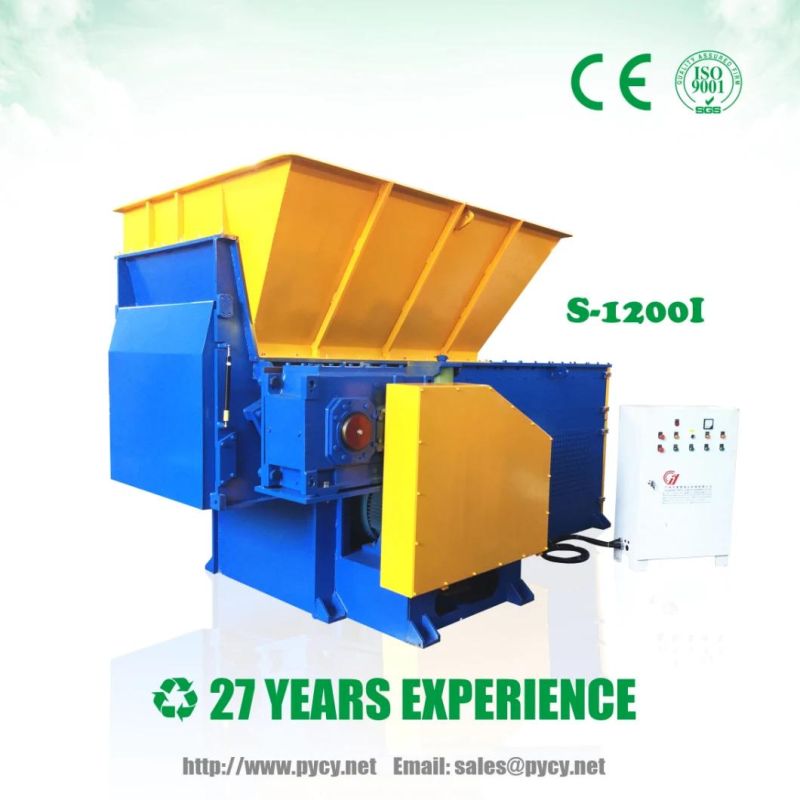

S-600I | S-800I | S-1000I | S-1200I | S-1500I | S-1800I | |
L (mm) | 1926mm | 2975mm | 2975mm | 2975mm | 3300mm | 3300mm |
W (mm) | 1590mm | 2250mm | 2450mm | 2630mm | 2900mm | 4770mm |
H (mm) | 1904mm | 2460mm | 2460mm | 2460mm | 2750mm | 2900mm |
C (mm) | 1200mm | 1630mm | 1630mm | 1630mm | 1900mm | 2200mm |
D (mm) | 908mm | 1450mm | 1650mm | 1830mm | 2150mm | 2450mm |
E (mm) | 642mm | 855mm | 855mm | 855mm | 920mm | 920mm |
Rotor diameter (mm) | Φ272mm | Φ430mm | Φ430mm | Φ430mm | Φ480mm | Φ480mm |
Rotor width (mm) | 600mm | 800mm | 992mm | 1192mm | 1492mm | 1792mm |
Motor power (KW) | 22kw | 37kw | 45kw | 55kw | 75kw | 90kw |
Rotor speed (r/min) | 82r/min | 82r/min | 82r/min | 82r/min | 82r/min | 82r/min |
Cutting chamber size (mm) | 760x610x253 | 1300x810x376 | 1300x1000x376 | 1300x1200x376 | 1700x1500x465 | 1700x1800x465 |
Screen mesh size (mm) | Φ40mm or customized | Φ40mm or customized | Φ40mm or customized | Φ40mm or customized | Φ40mm or customized | Φ40mm or customized |
Rotor knife quantity (PCS) | 28+4 pcs | 66+4 pcs | 84+4 pcs | 102+4 pcs | 126+4 pcs | 150+4 pcs |
Bed knife quantity (PCS) | 2x2 pcs | 2x2 pcs | 3x2 pcs | 3x2 pcs | 3x2 pcs | 4x4 pcs |
Hydraulic ram motor (KW) | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw | 3kw |
Total weight(KG) | 2400kg | 3900kg | 4600kg | 5500kg | 7800kg | 10500kg |
