Single Shaft Plastic Shredder for Waste Pastics Recycle Plant

GUANGZHOU PANYU QIANGYE MACHINERY CO., LTD.
  • After-sales Service:Video Supprt
  • Warranty:1 Year
  • Type:Powerful Plastic shredders
  • Raw Material:PP
  • Structure:Tangential Feed
  • Knife Classification:Single Shaft

Base Info

  • Model NO.:S-1000
  • Knife Roll:Solid Knife Roller
  • Automation:Automatic
  • Computerized:Computerized
  • Name:Plastic Single Shaft Shredder
  • Function:Shredding Rigid Plastic
  • Transport Package:Wrap Film
  • Specification:2975*2450*2460
  • Trademark:Qiangye
  • Origin:China
  • HS Code:8479820090
  • Production Capacity:100sets,Year

Description

Basic Info.

Model NO. S-1000 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Name Plastic Single Shaft Shredder Function Shredding Rigid Plastic Transport Package Wrap Film Specification 2975*2450*2460 Trademark Qiangye Origin China HS Code 8479820090 Production Capacity 100sets/Year

Product Description

Single shaft shredder /industrial shredders for waste materials,lumps,wove bags

 Main description:

 It is mainly used to crush various big solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper, which the normal crusher can not handle.

Properties:

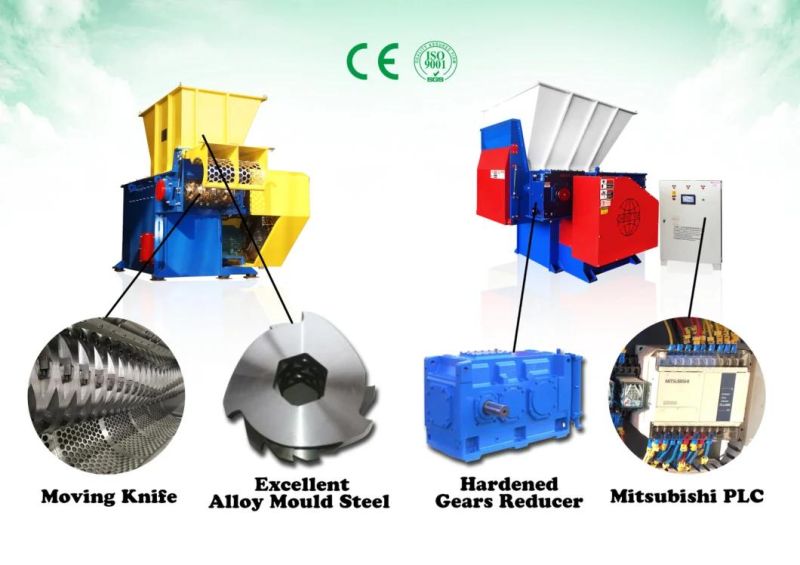

1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;
5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;

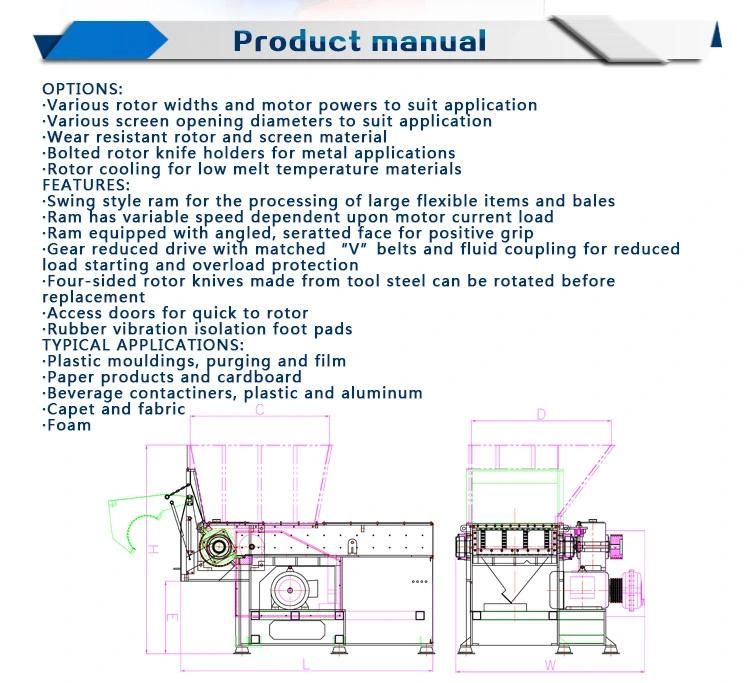

 S-600IS-800IS-1000IS-1200IS-1500IS-1800I
L (mm)1926mm2975mm2975mm  2975mm 3300mm 3300mm
W (mm)1590mm2250mm2450mm 2630mm2900mm4770mm
H  (mm)1904mm2460mm 2460mm 2460mm2750mm2900mm
C  (mm)1200mm 1630mm 1630mm1630mm1900mm2200mm
D  (mm)908mm 1450mm1650mm 1830mm2150mm2450mm
E (mm)642mm 855mm855mm 855mm920mm920mm
Rotor diameter (mm) Φ272mmΦ430mmΦ430mmΦ430mm Φ480mm Φ480mm
Rotor width (mm)600mm800mm 992mm 1192mm 1492mm1792mm
Motor power (KW)22kw37kw45kw55kw75kw90kw
Rotor speed (r/min)82r/min82r/min82r/min82r/min82r/min82r/min
Cutting chamber
 size (mm)
760x610x2531300x810x3761300x1000x3761300x1200x3761700x1500x4651700x1800x465
Screen mesh
size (mm)
Φ40mm or
customized
Φ40mm or
 customized
Φ40mm or
customized
Φ40mm or
 customized
Φ40mm or
customized
Φ40mm or
 customized
Rotor knife quantity
 (PCS)
28+4 pcs66+4 pcs84+4 pcs102+4 pcs126+4 pcs150+4 pcs
Bed knife quantity
 (PCS)
2x2 pcs2x2 pcs3x2 pcs3x2 pcs3x2 pcs4x4 pcs
Hydraulic ram motor
 (KW)
1.5kw1.5kw2.2kw2.2kw2.2kw3kw
Total weight(KG)2400kg3900kg4600kg5500kg7800kg10500kg
