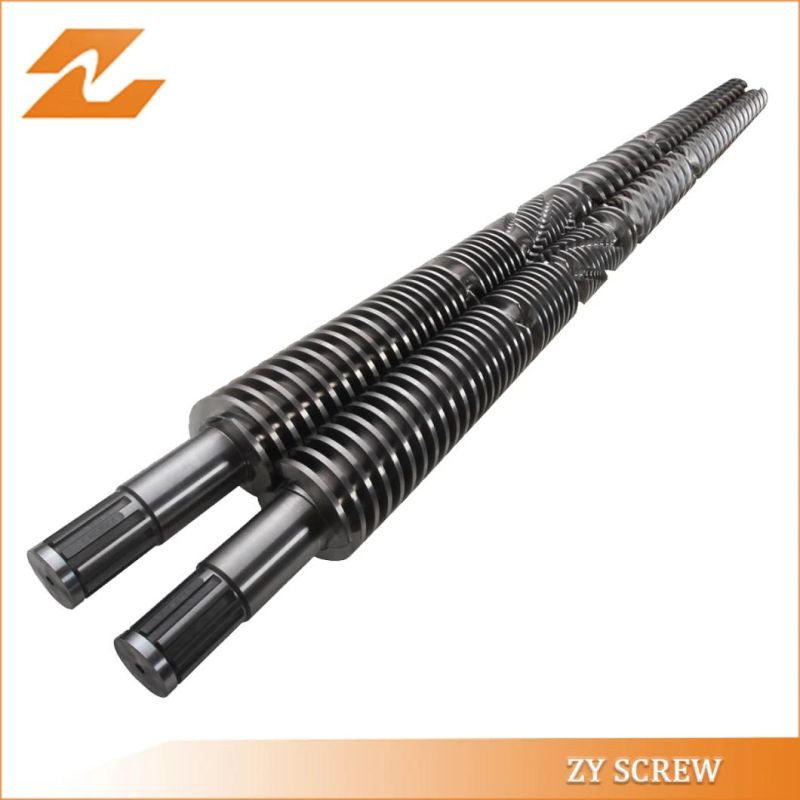

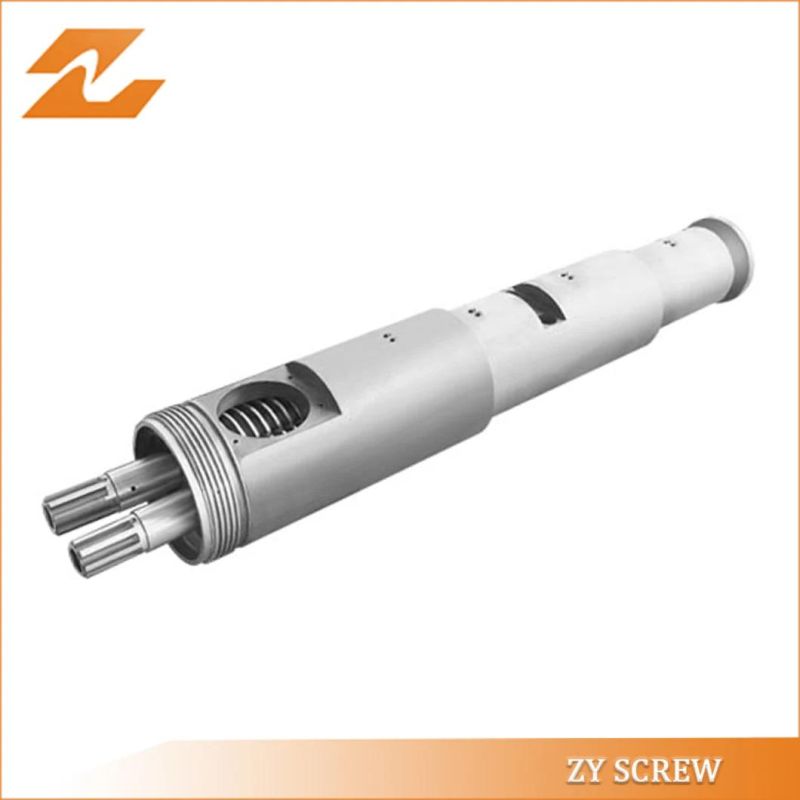

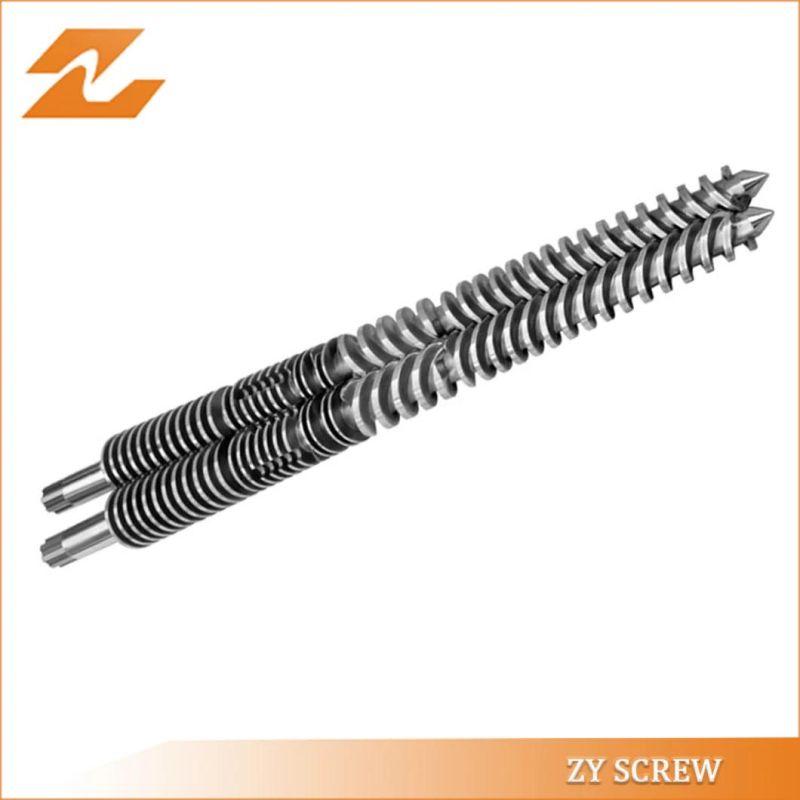

65/132 Conical Twin Screw and Barrel Extrusion Machinery Part
Zhejiang Zhongyang Screw Manufacturing Co., Ltd.- After-sales Service：Yes
- Warranty：12 Month
- Type：Pipe Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Model NO.：65,132
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Material：38CrMoAl, 40crmo...
- Transport Package：Film Wrapped in Wood Case
- Specification：ISO 9001: 2008 approved
- Trademark：ZHONGYANG
- Origin：China
- HS Code：84779000
- Production Capacity：100 Sets , Month
Description
Specification:
45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 70/135, 70/140, 75/150, 80/143, 80/156, 92/188
The above are standard specifications, we can customize according to customers' requirements.
The compression ratio of screws can be designed according to different products and ingredients.
Base Materials:
1)38CrMoAlA(JIS SACM645)
2)42CrMo(AISI 4140)
3)4Cr5MoSi V1 (JIS SKD-61)
4)9Cr18MOV
5)HPT
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: ≥ 950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Experienced manufacture, we will be the best choice.
