• Model NO.：YJ-PCDL
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Quality：High
• Efficiency：High
• Output：High
• Performance：Good
• Operation：Easy
• Maintenance：Easy
• Weight：About 2 Ton
• Running：Stable
• Color：as Per Standard
• Volt：220V, 380V, 415V, 440V
• Transport Package：Plastic Film, Wooden Pallet
• Specification：CE
• Trademark：Yuanjin
• Origin：China
• HS Code：84772090
• Production Capacity：50sets,Month

Basic Info.

Model NO. YJ-PCDL Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Quality High Efficiency High Output High Performance Good Operation Easy Maintenance Easy Weight About 2 Ton Running Stable Color as Per Standard Volt 220V, 380V, 415V, 440V Transport Package Plastic Film, Wooden Pallet Specification CE Trademark Yuanjin Origin China HS Code 84772090 Production Capacity 50sets/Month

Product Description

Competitive rate PC diffuser light tube extruding producing machine






Our Features and advantages in led light tube extrusion


(1) Newly developed online precise cutting technology, one-time cutting online, no need the second time cutting, cutting precision within 0.5mm, cut end neat, chipless, higher efficiency;

(2) Special screw for PC material, perfect plastication effect, to ensure the finished products without crystalized dot, without pulling mark, without vibration mark, with high light transmittance, and high transparency.


Simple introduction of PC diffuser light tube extruding producing machine


1. The machine is used to produce various T5, T8 LED PC tube, PC profile, PC lamp chimney, transparent LED lampshade, single color or double color led lampshade etc;

2. Applied materials: PC OR PMMA as per clients requirements;

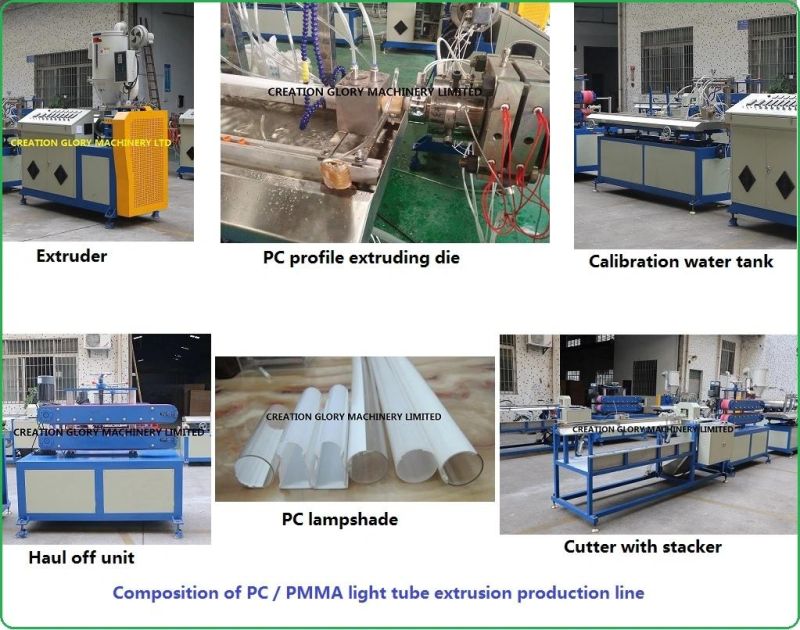

Composition & technical details of PC diffuser light tube extruding producing machine




MACHINE  PARTS	QUANTITY
MAIN EXTRUDER MACHINE	1 SET
EXTRUDING DIE	1 SET
VACUUM CALIBRATION TABLE	1 SET
TRACTOR MACHINE	1 SET
AUTO ONLINE PRECISE CUTTER AND COLLECTION STAND	1 SET

1.  Single screw extruder machine:


(1) Screw model: YJ45, YJ50, YJ55, YJ65 available for option; L/D: 28:1;

Separated type screw is adopted as it is especially suitable for transparent material mixing diffuser material for production, so as to lower down raw materials cost largely.

(2) Siemens motor drive, with enough motive power and quite stable in running; Temperature control meter: intelligent type; the precision could reach +/-1 degree;


2. Extruding die:


Special S136H mirror surface steel for dies, the surface of the extruding dies is mirror polished.


3. 3D calibration tank:


Stainless steel tank;
3D adjusting machine frame, with10-way vacuum, 10-way cooling water;
vacuum pump fixed outside;
the whole machine is compact and strong without vibration.

Length: 1.5m, 2m, 2.5m, 3m for option;

Vacuum pressure: 0.01~0.08MPA, adjustable;
Vacuum pump power 1.5KW;
Vacuum is stable and silent.


4. Belt type tractor machine:


Open-close, up-down adjusting;
belt workable length 1meter,constant stable tractor;
high wear-resistant foamed surface PU multi-wedge belt;
high precision frequency conversion controller;
tractor speed 0-15m/minute stepless adjustable.
Single motor or double motor available for option;
Power: 1.5~3KW.





5. Automatic online precise cutter with collection stand:


Innovative cutting technology;
Optical type length-setting device;
Solve the online-precise-cutting difficulty in this industry;
Online cutting precision: within 0.5mm;
Cut end neat, without powder and dust;
No need the second time precise cutting;
Fully touch screen control;
Originally created active servo tracing cutting platform.

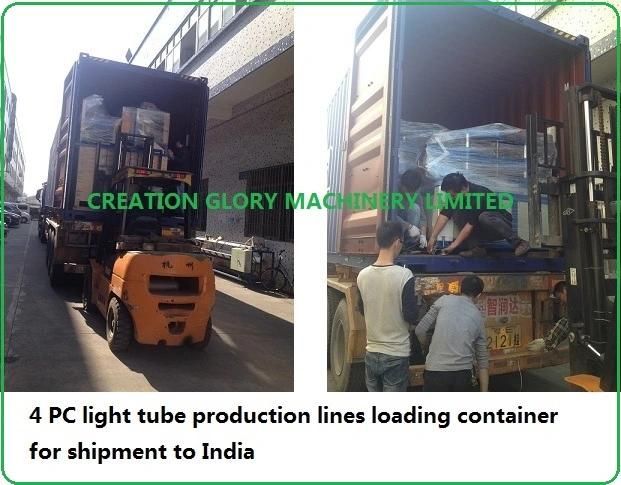

PC diffuser light tube extruding producing machine shipment:







How is your service system?




PRE-SALE	a. Detailed machine introduction; b. Suggest suitable turnkey solution as per clients requirements; c. Provide test production for reference;
IN PRODUCTION	a. Supply layout drawing to clients for preparation; b. Keep the clients be informed of the production status;
AFTER SALE	a. Send engineers to overseas for installation ,commissioning and training; b. Offer help if any need from clients like spare parts need etc; c. Supply necessary technical support at request;

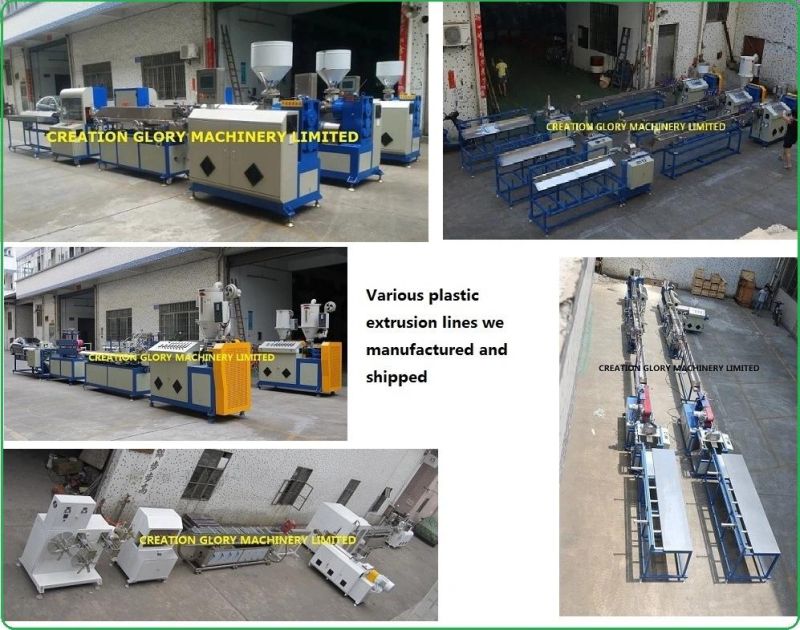

Why choose CREATION GLORY MACHINERY?


1. Technology:

Extrusion technology is critical in plastic product extrusion production, we own leading extrusion technology in producing various plastic products including pipe, profile, filament and strip, tape etc, so as to help our clients set up plastic extrusion whole plant for producing various plastic extrusion products successfully and stably;

2. Experience:

With our almost 20 years experience in plastic extrusion industry, we not only help our clients with design of whole extrusion production line, but also sourcing plastic raw materials suppliers, suggesting auxiliary equipments needed etc;

3. Professionality:

Specialized in plastic extrusion production line design and manufacturing for more than 10 years, we are serving lots of big and small companies in China and also over the world, including many listed companies.

4. Quality:

The quality of products is footstone of enterprise's constant development, always endeavoring to do much better, quality comes first, developing & innovative is our responsibilities;

We always care quality of each and every small part of the machines, and keep improving design and structure of whole line, so that our clients could get the production lines in good quality, with excellent performance, stable running and also with long life.

5. Honesty:

Working on plastic extrusion industry for more than 10 years basing on sincerity, we enjoyed good reputation in this industry, and we keep very good relationship with our suppliers, clients and partners all over the world.







FAQ


Q1: What is your guarantee of the machine?
A1: The guarantee period of our machine is 12 months;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container in nude packing.

We place and fix the machines well into container and check carefully before closing the container
so as to ensure everything is well for the shipment. We care each and every point so that our clients could receive the machines in good status.

Q3: What is delivery time of the machine?
A3: About 45 working days;

Q4: What is your payment terms?
A4:  30% advance payment by T/T upon order, balance 70% by T/T before shipment OR by L/C;

Q5: Which countries do you sell your machines to?
A5: Our plastic extrusion machines were sold to Russia, Ukraine, South Korea, Thailand, Malaysia, Vietnam, India, Bangladesh, Canada, USA etc countries.

Q6: Do you have instruction manual to guide us if i buy the machine?
A6: Yes, we supply detailed user manual for your reference. PLS read it for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q7: What is your service to overseas clients?
A7: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
