Plastic Automatic PP Pet HIPS Cup Glass Forming Thermforming Machine & Stacking Machine ...

Rui'an Hengfeng Machinery Co., Ltd.
  • Certification：CE, ISO, ISO9001
  • Column number：Four Column
  • Molding Method：Thermoforming
  • Automatic Grade：Automatic
  • Raw Material：PP, PS, Pet, PVC, PLA,etc
  • Driven Type：Electric, Pneumatic, Mechanical

Base Info

  • Model NO.：HFTF-70T
  • Shaping Mode：in Molding
  • Application：Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc
  • Computerized：Computerized
  • Max Forming Area：680* 320mm
  • Thickness of Sheet：0.35-2.5mm
  • Dimension(L*W*H)：12000*4000*3500mm
  • Transport Package：Sea-Worthy Packing
  • Specification：CE Certificate
  • Trademark：HENGFENG
  • Origin：China
  • HS Code：8477590000
  • Production Capacity：45 Cycles,Min

Description

Basic Info.

Model NO. HFTF-70T Shaping Mode in Molding Application Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc Computerized Computerized Max Forming Area 680* 320mm Thickness of Sheet 0.35-2.5mm Dimension(L*W*H) 12000*4000*3500mm Transport Package Sea-Worthy Packing Specification CE Certificate Trademark HENGFENG Origin China HS Code 8477590000 Production Capacity 45 Cycles/Min

Product Description

Plastic Automatic PP PET HIPS Cup/Glass Forming Thermforming Machine
Applicantion:
HFTF-70T Automatic Forming and Stacking Machine is suitable for PP. HIPS. PVC and PET sheet, which is special for high quality cups. and Servo motor for sheet feeding and plug system.

FEATURE:
Rapid mold changing device and easy maintenance
Stability and high speed movement is guaranteed by cam driving system
Screen digital setting and storage of machine parameter
Forming with 7bar air pressure,cutting in mould
More sanitary and labor-saving with automatic counting and stacking
Plug and feeding driven by Servo motor
For making plastic cup and suitable material such as PP,PS,PVC, PET,PLA, etc

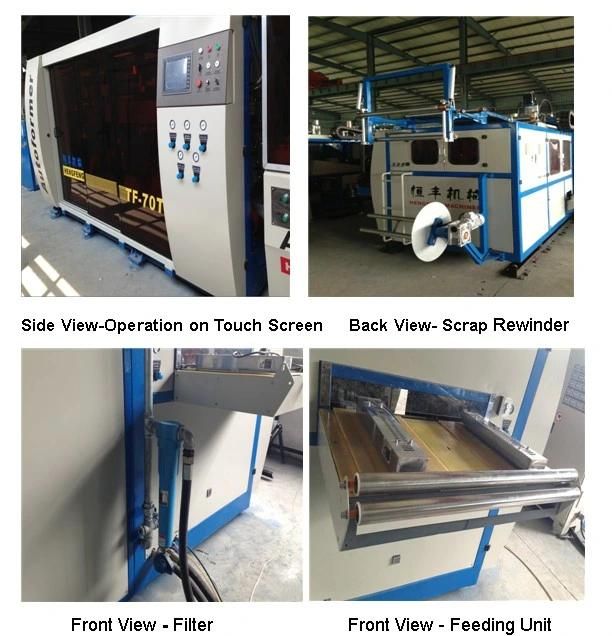

Plastic Automatic PP Pet HIPS Cup Glass Forming Thermforming Machine & Stacking Machine (HFTF-70T)
 Main Specification:
1- Max. Forming Area                   685×320mm
2- Max. Forming Depth                  ≤180mm
3- Clamping Force                         400KN
4- Sheet Width Range                 550-720mm
5- Sheet Thickness                       0.35-2.2mm
6- Max. Rolling Diameter                   Φ1500mm
7- Air Pressure                               0.7-0.85mpa
8- Water Consumption                         50L/min
9- Air Consumption                              3000L/min
10- Max.Dryer Speed                      42 Cycles/min
11- Power (Three Phase Four Wire)              3×380V+N+PE.50HZ
12- Heating Power                           130KW
13- Main Servo Motor power                 11kw
14- Feeding Servo Motor Power               4.4kw
15- Stretching Servo Motor Power      11kw
16- Machine Weight                          12500kg
17- Dimension                                12500×3650×3550mm
