• Model NO.：BP-8178-T
• Machine Weight：300kg
• Certification：CE, ISO9001:2008, UL, QS, GMP
• Transport Package：Polywood Wooden Case
• Specification：1000*600*700(W*D*H)mm
• Trademark：BAOPIN
• Origin：China
• HS Code：8477301000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. BP-8178-T Machine Weight 300kg Certification CE, ISO9001:2008, UL, QS, GMP Transport Package Polywood Wooden Case Specification 1000*600*700(W*D*H)mm Trademark BAOPIN Origin China HS Code 8477301000 Production Capacity 100 Sets/Month

Product Description

PLA HDPE LDPE PP PE plastic polymer nylon automatic monolayer lab benchtop mini film blowing machine

The mini film blowing machine structure is compact, simple operation, can be used for single and multi-layer blown film, can be applicable to all polymer dispersion research.

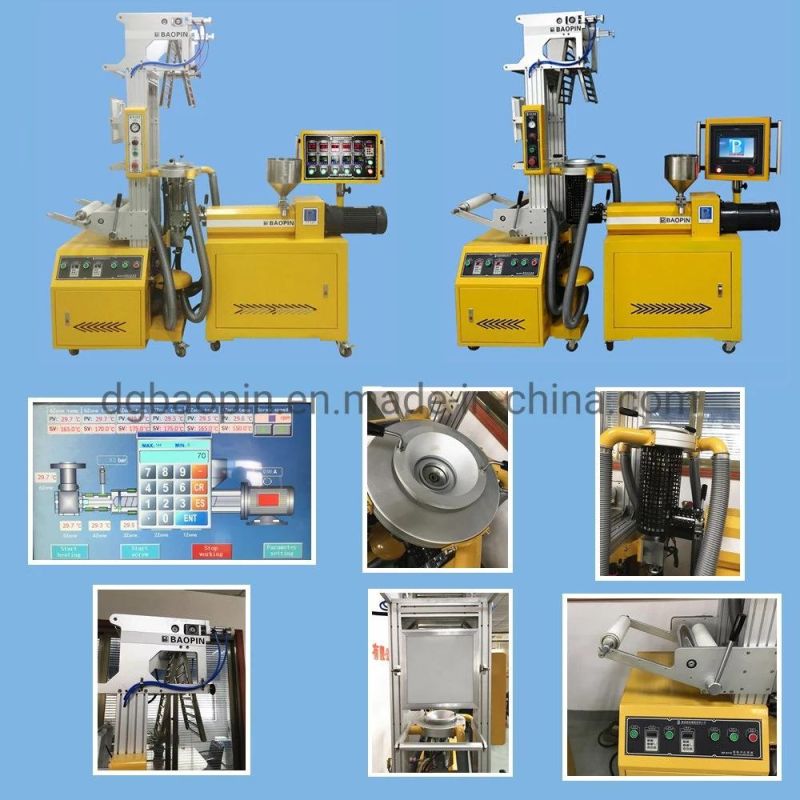

This mini film blowing machine consisted of a small single screw extruder and small film blowing tower. It is the best choice for quality control and testing the color distribution.

Parameters:
1. Single screw extruder

Screw diameter	Φ 20
Length diameter ratio	1:28
Screw speed	0 - 95 rpm frequency control

Screw/Feeding barrel material for mini film blowing machine:
38CrMoAl chromium-molybdenum steel. With the surface-layer processing of tempering, nitriding, chroming, polishing and super-precision grinding, the hardness HRC55~60, roughness Ra≤0.4μm, nitriding depth≥0.6mm.

Electric control system of mini film blowing machine:
High accuracy intelligent digital instrument control and display all of the process parameters, including temperature control, driving, pressure, interlocking spreading function.

2. Film blowing tower

Diameter of dies of mini film blowing machine	Φ 30
Driving rolling speed	0.5- 2 m/min adjustable
Maximum folded diameter of the film of mini film blowing machine	100 mm
Traction motor	50 W
Fan	0.15 KW
Rolling torque motor	2.5 N.m
Power supply	3 ∮, 50 HZ, 5 lines

Huffing air:
0 -5 bar compressed air for mini film blowing machine.

Cooling air:
20 L/min air blower flow for mini film blowing machine.




Features

1. This mini film blowing machine has compact design and a small body, not occupying too much indoor area.
2. The host and auxiliary machines are of easy assembly with few raw material. The maximum folded diameter of the thin film can reach200mm.
3. This mini film blowing machine is equipped with the C-type fast changing handpiece of easy operation and time & labor-saving test.
4. Single-layer or double-layer cooling vane and the closed-loop control of creasing width ensure reliable product quality.
5. The spiral circulation film blowing die of high performance is easy to clean and maintain.
6. The height of the filming blow tower can be adjusted arbitrarily to meet test requirements.
7. The extrusion, traction and rolling have the property of stepless speed regulating, ensuring requirements of film blowing technology to be met.
