High Speed ABA 3 Layer Pbat Bla PE HDPE Film Blowing Extrusion Machine Price
RUIAN TPLAST MACHINE CO.,LTD- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：800mm
- Screw Diameter：55mm
- Automation：Automatic
- Computerized：Non-Computerized
Base Info
- Model NO.：SJ-50,ABA800
- Machine Weight：3000kg
- Certification：CE, ISO9001:2008
- Screw Diameter (mm)：55
- Film Width(mm)：800
- Film Thickness(mm)：0.02-0.10
- Max. Extrusion Output (Kg/H)：100
- Main Motor：Siemens Brand
- Die Size(mm)：60,100 High Speed Type
- Inverter：LG Brand
- Temperature Controller：Omron Brand

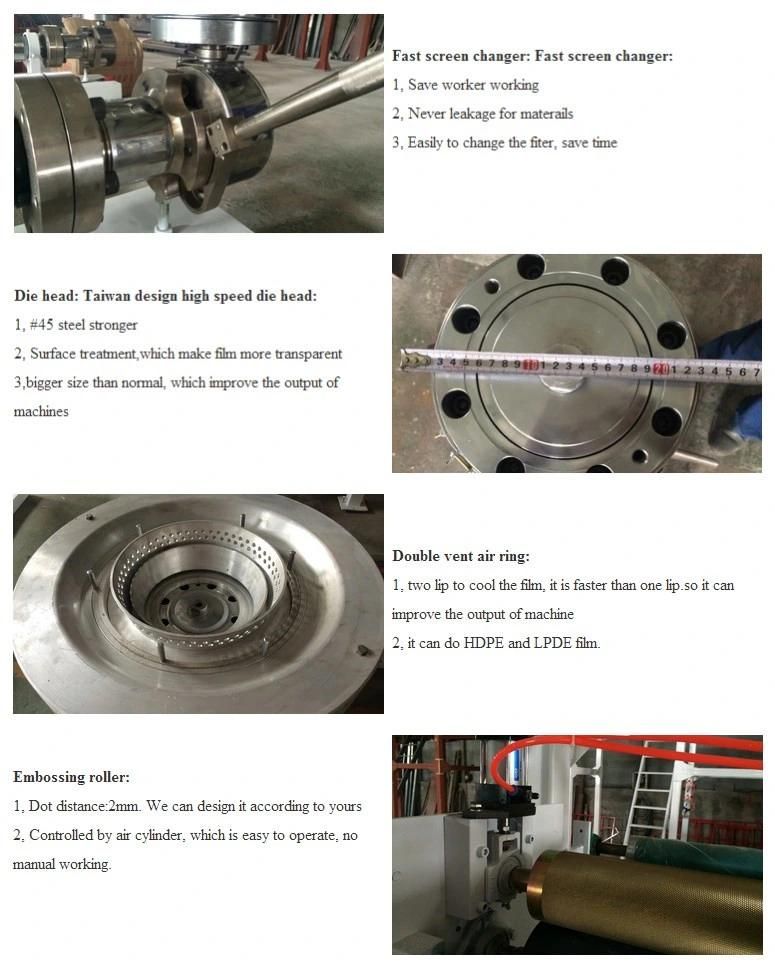

- Screen Changer：Yes
- Air Ring：Double Vent Air Ring
- Transport Package：Wooden Plate
- Specification：800mm
- Trademark：RuiGao
- Origin：Ruian Zhejiang China
- HS Code：847730900
- Production Capacity：20 Sets,Month
Description

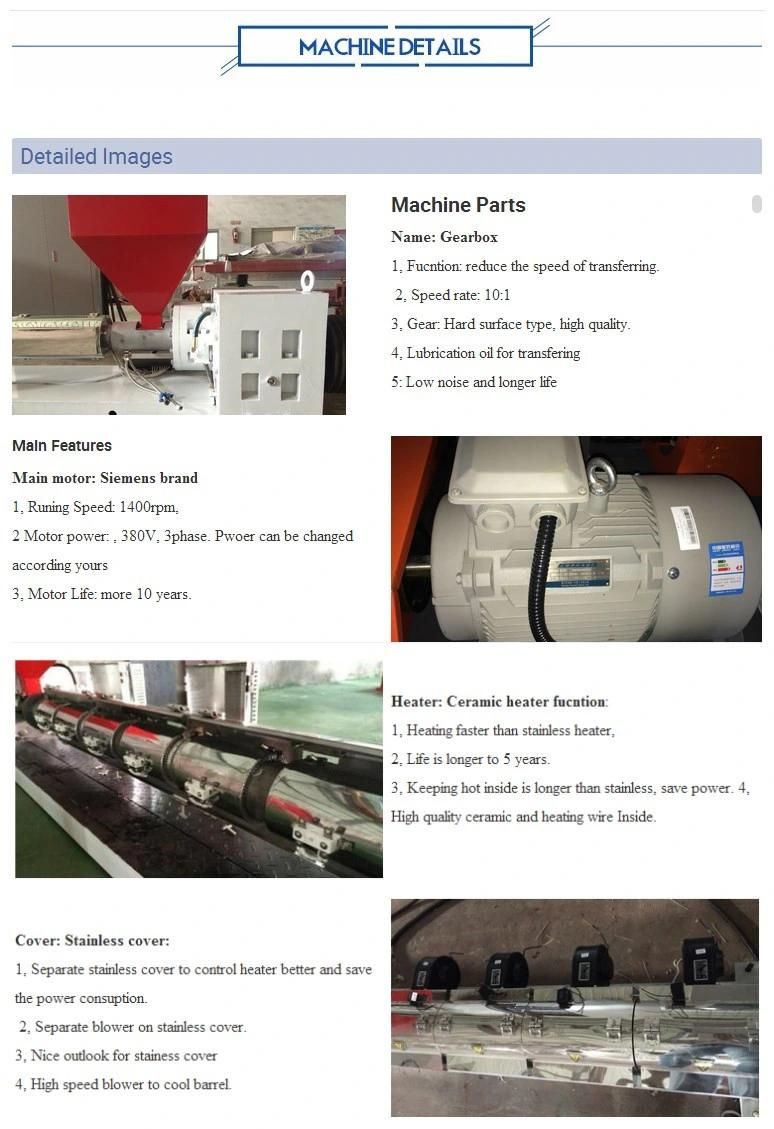

4, Motor with CE standard, more 10 years life, Siemens Brand.
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7, Temperautre Controller: Omron Brand
8, Inverter: LG Brand
9, Ceramic Heater: Heating faster and Keep warm longer
Main Technical Variables:
Main Details
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
You are welcome to contact with us, we will provide excellent quotation and high quality machine
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7, Temperautre Controller: Omron Brand
8, Inverter: LG Brand
9, Ceramic Heater: Heating faster and Keep warm longer
Main Technical Variables:
| Model | SJ-50/ABA800 | SJ--55/ABA1000 |
| Screw Diameter (mm) | 45/50 | 50/55 |
| Screw Length (L/D) | 30:1 | 30:1 |
| Film Width(mm) | 200-800 | 300-1000 |
| Film Thickness(mm) | 0.01-0.10 | 0.01-0.10 |
| Max.Extrusion Output(kg/h) | 80 | 100 |
| Cylinder Cooling (Kw) | 0.25*2 | 0.25*2 |
| Driving Motor(kw) | 11kw/15kw | 15KW/18.5KW |
| Temperature Control | 3/3 | 3/4 |
| Average Power-consume(kw) | 50 | 55kw |
| Die Size(mm) | 80/150 | 120/200 |
| Winding Speed(m/min) | 10-80 | 10-80 |
| Take-up Motor(kw) | 1.1 | 1.5 |
| Weight of machine(kg) | 3000 | 3500 |
| Cover Dimension(m) | 4.2*3.3*4.5 | 4.6*3.6*4.8 |
Main Details
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
You are welcome to contact with us, we will provide excellent quotation and high quality machine
