• Model NO.：LMSB80,156
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Width：1220mm
• Sheet Thickness：3-18mm
• Applications：Transportations, Architecture, Advertiment
• Extruder Model：Sj80,156
• T-Die Head：Jc-Times Brand
• Machine Dimenison：20m*2.5m*3.5m
• Delivery Time：70 Days
• Guaranteed Time：12 Months
• Transport Package：Wooden Pallets,Cases with Streching Films
• Specification：LMSB80,156
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：20 Sets,Per Year

PAR T1  THIS LINE CONSISTS OF (COMPULSORY)1SJF-700 Spring Feeding Machine1 set2SJ-80/156 Conical Twin Screw Extruder1 set3T-type die head with mold temperature controller1 set4SDX1250 Vacuum calibrating table1 set5Cooling frame + edge trimming units1 set6Embossing rollers1 set7SQY1250 Haul off machine1 set8SQB1250 Two edge saw cutting unit1 set9SQG1250 Cross saw cutting machine1 set10SFL1250 Stacker1 set PART 2  ACCESSORY MACHINE PARTS (OPTIONAL)11High speed hot and cold mixer1 set12Plastic crusher1 set13Plastic pulverizer1 set14Air compressor1 set15Industrial water chiller1 set  Machine TypeSY80/156-1400SY92/188-1700Product Width1220mm1500mmProduct Thickness2-30mm3-19mmExtruder SpecificationSJZ80/156SJZ92/188Max. Extrusion Capacity400kg/h550kg/hMain Motor Power75kw110kw


PART 3: ADVANTAGES OF PVC CRUST FOAMED PLATE

Sound separation, sound absorption, heat separation, temperature-keeping, etc. The material is incombustible and it is safe for use.

PART 4: APPLICATIONS OF THIS PRODUCT:

Transport industry, architecture decoration industry, advertisement industry, industrial application, construction mold plate etc.
 PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time60 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable6ContactMs Lilly Zhou (mob0086-15266238607)

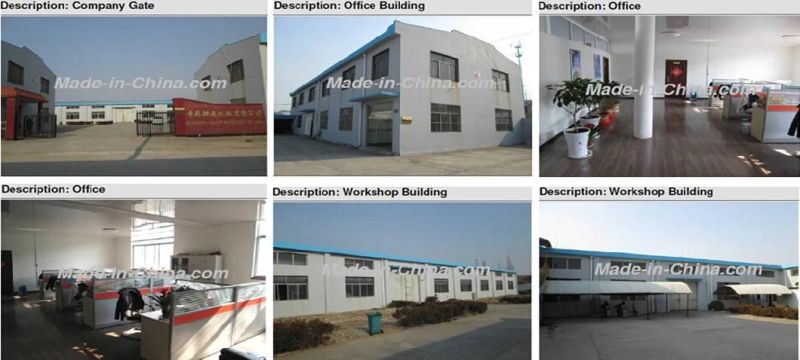

 PART 6 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 7 COMPANY CERTIFICATIONS:

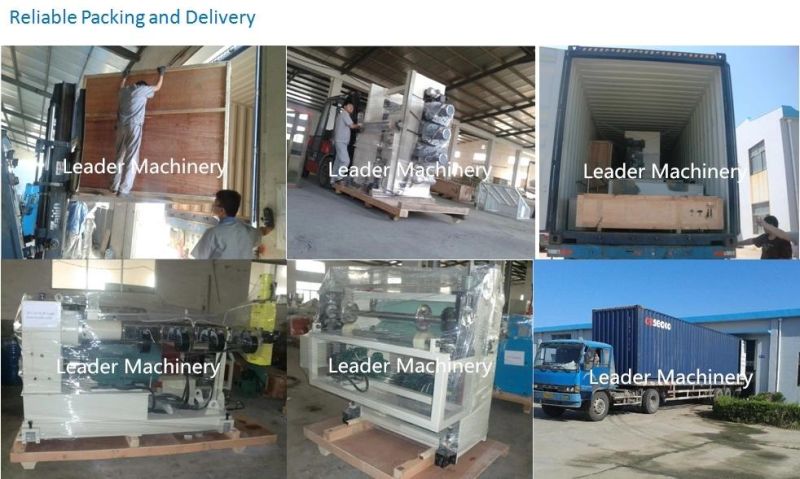

PART 8 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 9 COMPANY OVERSEA SHOWS

PART 9 OUR COOPERATED SUPPLIERS LIST

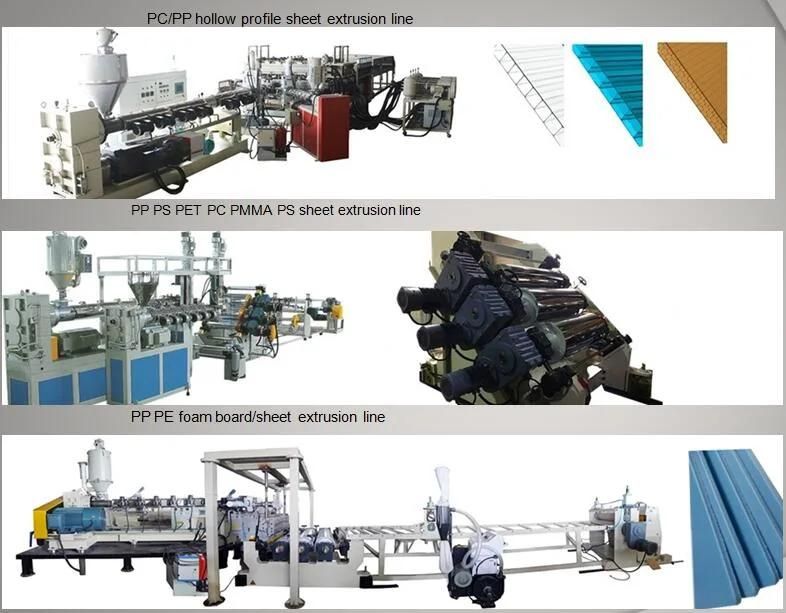

PART 11 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
