• Model NO.：SJ-50*3,RG1000
• Machine Weight：6500kg
• Certification：CE, ISO9001:2008
• Screw Diameter (mm)：65
• Film Width(mm)：1000-2500
• Film Thickness(mm)：0.02-0.15
• Max. Extrusion Output (Kg/H)：180
• Die Size(mm)：60,120 High Speed Type
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand
• Screen Changer：Yes
• Air Ring：Double Vent Air Ring
• Transport Package：Wooden Plate
• Specification：SJ-55*3,RG1200
• Trademark：RuiGao
• Origin：Ruian Zhejiang China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ-50*3/RG1000 Machine Weight 6500kg Certification CE, ISO9001:2008 Screw Diameter (mm) 65 Film Width(mm) 1000-2500 Film Thickness(mm) 0.02-0.15 Max. Extrusion Output (Kg/H) 180 Die Size(mm) 60/120 High Speed Type Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Screen Changer Yes Air Ring Double Vent Air Ring Transport Package Wooden Plate Specification SJ-55*3/RG1200 Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

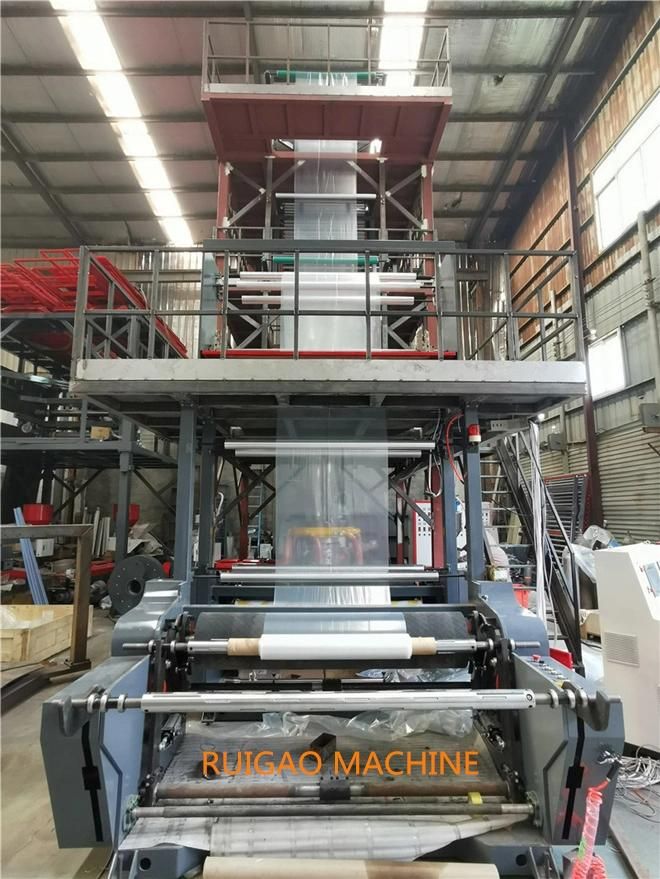

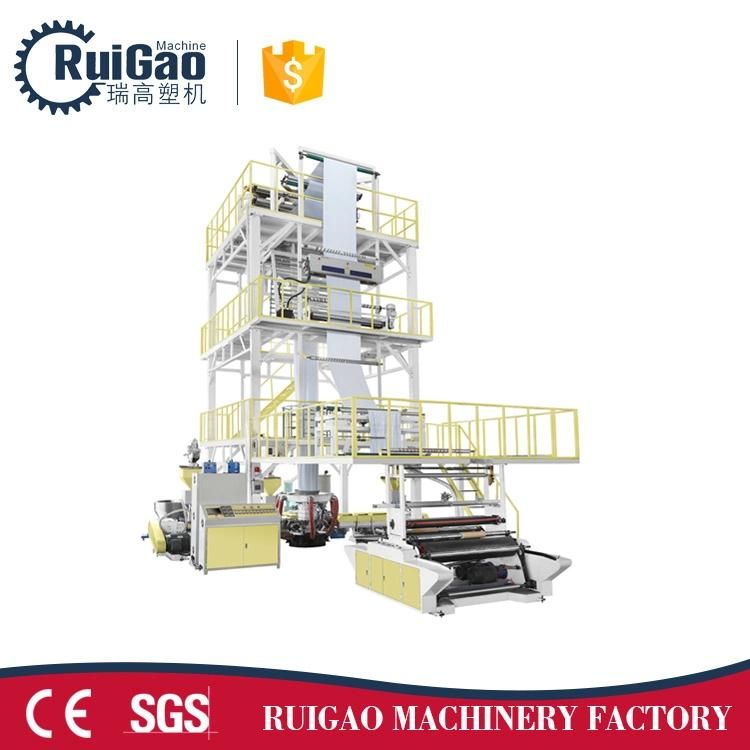

Taiwan Quality Film Blow Machine

Machine Introduction

plastic film extruder machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

 Machine Parameters

Model	SJ-50*3/MD1000
Screw Diameter(mm)	50/55/50
Screw Ratio(L/D)	30:1
Screw Speed(r/min)	110
Power of Main Motor(kw)	15/18.5/15
Range of Die(mm)	¢250
single-sided Thickness of Film(mm)	0.025-0.15
Max and min.Folding Width of Film(mm)	625-1000
Max output	150kg/h
Electric Total Capacity(kw)	Total power 120KW for hour Actual power consumption 78 KW
Weight of Machine(kg)	8000
Overall Dimensions (L*W*H)(m)	6.6*2.8*7

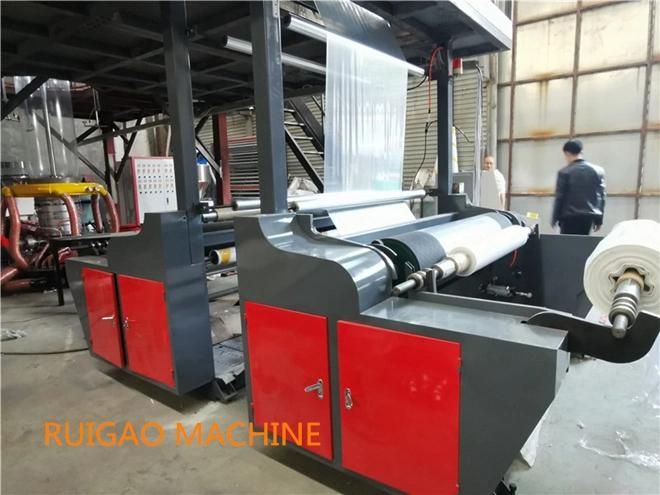

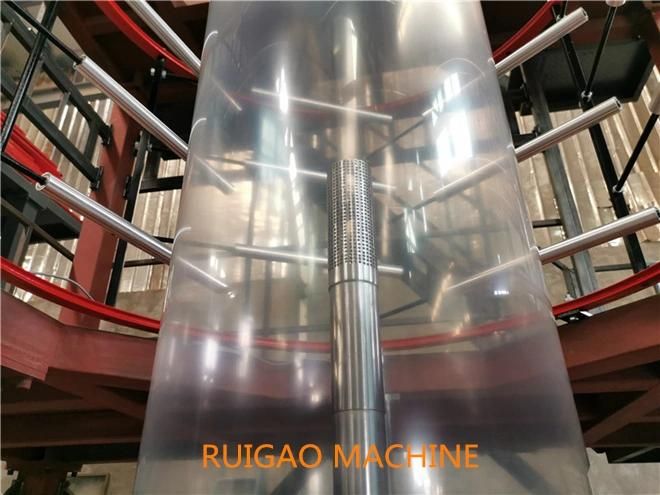

Machine Details






1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.



Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
