• Model NO.：XDC- Pipe Extrusion Line
• Condition：New
• Name：PE Solid Pipe Extrusion Line for Water and Gas Sup
• Electric Parts：Siemens
• Automatic：Full Automatic
• Extruder：Single Screw Extruder
• Extrusion Capacity：120-1000kg,H
• Extrusion Line Speed：2-20m,Min
• PPE Dia.：20-1200mm
• Transport Package：Wooden
• Specification：CE and ISO9000: 2010
• Trademark：xindacheng
• Origin：Qingdao, China
• HS Code：84778000
• Production Capacity：20sets,Year

Basic Info.

Model NO. XDC- Pipe Extrusion Line Condition New Name PE Solid Pipe Extrusion Line for Water and Gas Sup Electric Parts Siemens Automatic Full Automatic Extruder Single Screw Extruder Extrusion Capacity 120-1000kg/H Extrusion Line Speed 2-20m/Min PPE Dia. 20-1200mm Transport Package Wooden Specification CE and ISO9000: 2010 Trademark xindacheng Origin Qingdao, China HS Code 84778000 Production Capacity 20sets/Year

Product Description

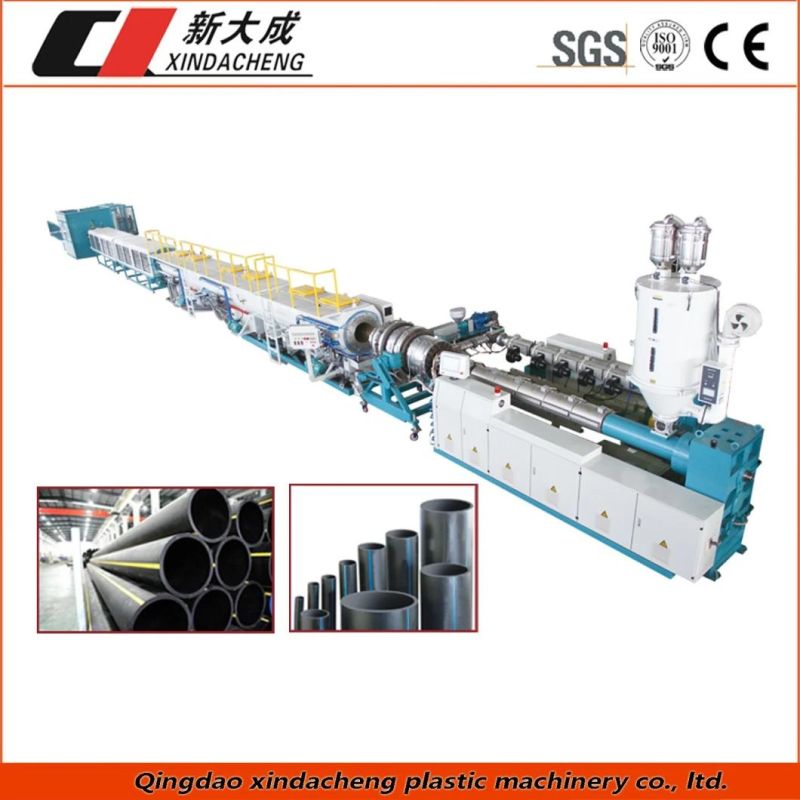

PE / HDPE Pipe Extrusion Line
Technical parameter:

Type	Pipe Spec(mm)	Extruder	Max.output(kg/h)
XDC-PE63	φ20-φ63	SJ-45/30 SJ-25/25	120
XDC-PE160	φ63-φ160	SJ-60/30 SJ-25/25	300
XDC-PE250	φ75-φ250	SJ-75/30 SJ-25/25	400
XDC-PE450	φ160-φ450	SJ-90/30 SJ-25/25	600
XDC-PE630	φ315-φ630	SJ-120/30 SJ-25/25	800
XDC-PE800	φ450-φ800	SJ-150/30 SJ-25/25	1000
XDC-PE1200	φ710-φ1200	SJ-150/33 SJ-25/25	1300

1. Pipe range: Φ 16-Φ 800mm
2. Output: 80kg/h-850kg/h
3. Production speed: 0.1-15m/min

Process flow:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing

Application:
Water and gas supply, micro&sprinkler irrigation system, sewerage pumping and effluent disposal system.

Properties & Advantages:
The pipes produced by this line have excellent hardness and flexibility. Their diameters vary from 16mm to 1200mm. The line consists of control system, extruder, die, vacuum calibration unit, hauling-off and planetary cutting system and stacker.

Product description:

Xindacheng Plastic Machinery Company depends on design production experience of many years, join together the domestic and international actual circumstance, developed full-automatic production line which from extruder including all automation units and peripherals, whole production line realizes automatic control from charging to finished product.

The tube sizing:

Sizing sleeve with the entrance water curtain is applicable to the HDPE, LDPE and PP etc..

On the front end of butterfly type sizing sleeve carrying entrance water curtain there is a closed inside room, which is applicable to the small tube extrusion specially.



Mould:

Standard series:  10mm - 1600mm spiral allotment type or skep types flow divide body.

The best design of the low melting temperature causing small tube internal stress and smooth inside and outward appearance.

High flexibility is applicable to all polyolefin material multi-layer co-extrusion form.



The vacuum sizing water tank:

The water pump of high power and spraying head of special design bring high efficient spraying cooling.

On the section of sizing sleeve establish dense and intensive spraying heads.

The percolation unit with the bypass pipeline improved the stability of the equipments and reduce maintenance (pipe-ine and spray head is blocked due to impurity).

Have the high and low water level control levels.

Three-dimensional adjusting.

Tractor machine:

Changing frequency speed adjusting system guarantee synchronous hauling off.

By proportion valve and gas pressure control to regulate precisely contact pressure.

By the central motor drives all bedrails to attain highly synchronous result.

The automatic tube wall thickness increases and the length measuring device may be chosen.

Sawing machine:

Blade type machine

The planet type incising machine

The circle cut type incising machine

Have the set dimension and automatic cut function.

Following cut and complete synchronous.

Low noise and high protection design.

Vivid and dependable roller type moves.

Extruder:

PLC or temperature gauge control.

High extrusion capacity, low melt temperature.

Special screw design insure the high-efficiency and high yield.

Bevel gear design of high hardness and low noise brings dependable performance with long service life.

Adoption direct current speed regulation, the frequency variable speed adjusting and the electromagnetism speed.
