Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid ...

LX Plastic Machinery Co., Ltd.
  • Certification：CE
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Forming Area：800mm*600mm Max.,750*400mm Max.
  • Forming Depth：120mm Max. ,180mmmax.

Base Info

  • Model NO.：LX3122HF-IM-C203
  • Dry Run Speed：40cycles,Min Max.
  • Film Thickness：0.2-2mm
  • Sheet Width：800mm Max.
  • Suitable Material：PP PS Pet PVC BOPS
  • Air Pressure：0.7MPa
  • Production Range：Container, Clamshell ,Tray and Lid
  • Automaticity：Forming, Cutting, Stacking and Conveying
  • Cooling Water Consumption：13 Liters,Min 15° - 20°c
  • Transport Package：Plastic Film with Anti-Rust Oil
  • Specification：1200*2600*2500mm
  • Trademark：LXPLASTICS
  • Origin：China
  • HS Code：8477409000
  • Production Capacity：20sets,Year

Description

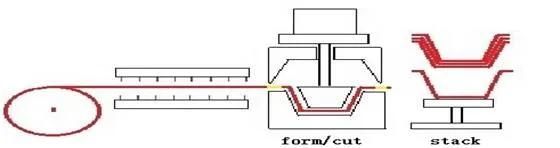

Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid Vented Clamshell Thermoforming Forming Making Machine Trim-in-place  IM-2in1

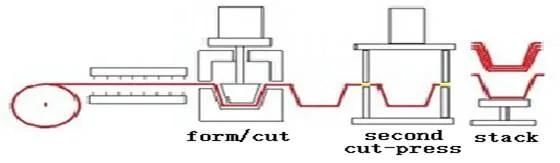

Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid Vented Clamshell Thermoforming Forming Making Machine  Trim-in-place with second cut-press  IM-3in1 (optional)

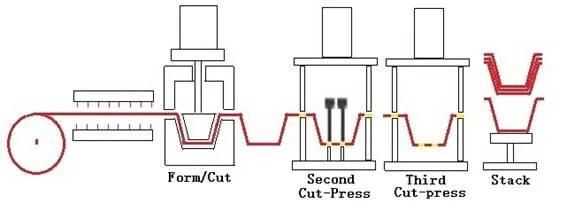

Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid Vented Clamshell Thermoforming Forming Making MachineTrim-in-place with second cut-press and third cut-press IM-4in1 (optional)
Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid Vented Clamshell Thermoforming Forming Making Machine    Service
Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid Vented Clamshell Thermoforming Forming Making Machine
Plastic Fruits Clamshell Packing Box Egg Tray Water Coffee Milk Cup Container Dish Lid Vented Clamshell Thermoforming Forming Making Machine
