• Model NO.：PET-QX500
• Item：Pet Bottle Flakes Crushing Washing Production Line
• Voltage：3 Phase 380V 50Hz or as Requested
• Delivery Time：30-60 Working Days
• Warranty：One Year
• Color：Grey or as Requested
• Capacity Range：300, 500, 1000, 1500, 2000 Kg,H
• Feeding Material：Pet Bottle and Flakes
• Final Product Size：18-22 mm
• Process：Crushing, Washing, Drying
• Humidity：3-5 %
• Transport Package：Wooden Case
• Specification：International Standard
• Trademark：chenxing
• Origin：Zhangjiagang of Jiangsu
• HS Code：8477900000
• Production Capacity：30, 000sets,Year

raw materialPET bottles and flakesCapacity500kg/hfinal products describe1.Max. moisture content:3-5%
2.Packing density:0.3G/CM3
3.Finished product size:18-22mm
1.2. Workshop:workshopsize(M*M*M): 50(L)×15(W)×5(H);
Crane: equipment displacement (customers)Power380V/50HZ,3PhasesWires and cables (customer supplied)Cabinet-connection to the power supply, all devices and connections between the electrical cabinetsWater supply (customer supplied)Equipment supply
1.3. Energy consumptionTotal installed power146KW
 (Actual consumption for the total power 70%-80%)Water flow10-12t(can be recycling use)
pressure: 0.6MpaSupply heatTemp.: 170 ºC,
Pressure output flow: 0.7MpaPeople3-6person
1.4 Main business item:ProjectPET bottles recycling lineTerms of payment30% T/T as the prepay, the rest should be paid before delivery time.Delivery timeAbout 50-60 working days after receiving the depositWarranty1year

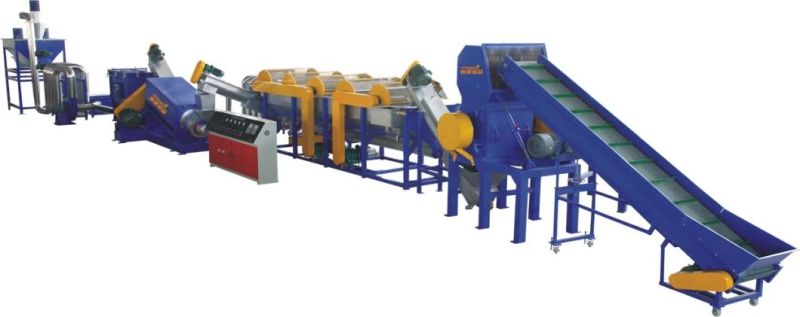

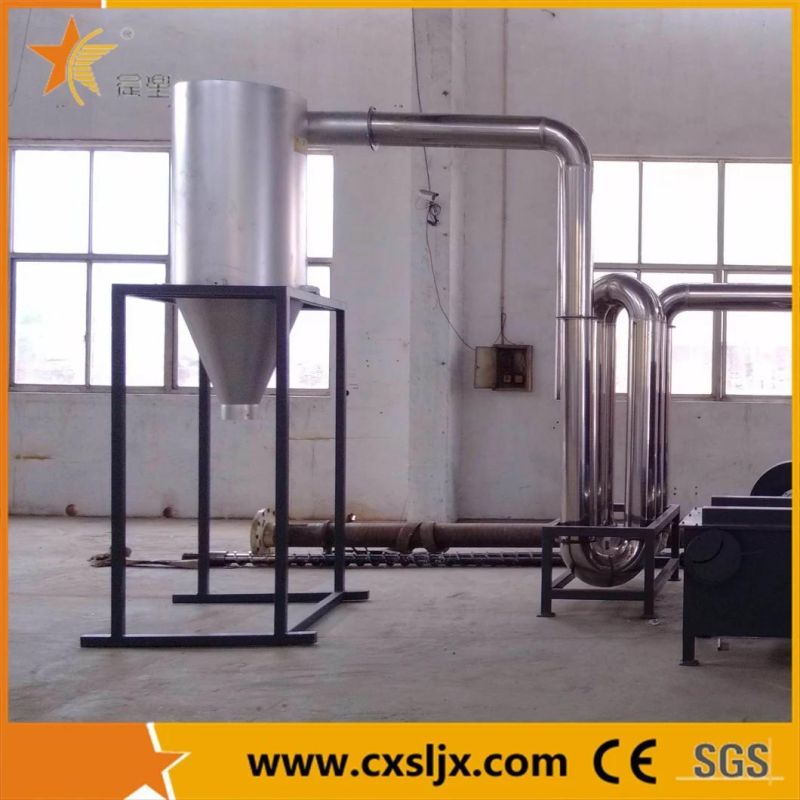

Machinery listNo.ProductionQuantity1Belt conveyor   1set2Crusher     1set3Screw loader1set4Steamer1set5Screw loader1set6Friction washing1set7Poaching tank1set8Screw loader1set9Poaching tank1set10Screw loader1set11Dewatering machine1set12Pipe drying system and silo   1set13Electric appliance1set

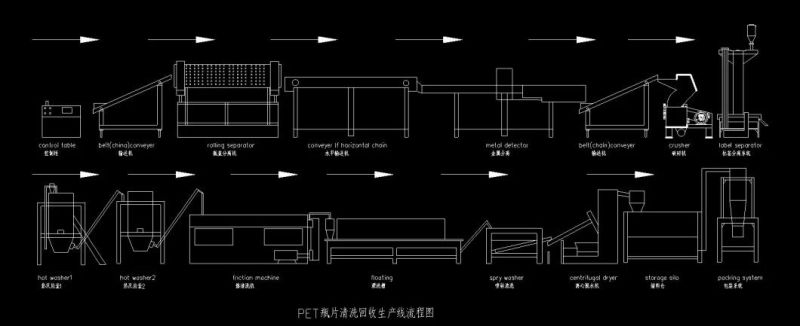

Flow Chart:



Picture reference
