• Model NO.：ABLB45
• Application：Bottles,Jars,Jerry Cans,Gallons,Containers
• Max. Product Volume：2L
• Die Head：1,2,3
• Suitable Material：PE,PP,PVC
• Auto-Deflashing：Available
• Auto-Lubrication：Available
• Operator Needed：1
• Delivery Time：35 Working Days
• Send Engineer for Training：Avaialble
• Guarantee Period：1 Year
• Transport Package：Flim Packaging
• Specification：ISO9001
• Trademark：Apollo
• Origin：JiangSu
• HS Code：84773000
• Production Capacity：500~600PCS,H

Basic Info.

Model NO. ABLB45 Application Bottles,Jars,Jerry Cans,Gallons,Containers Max. Product Volume 2L Die Head 1/2/3 Suitable Material PE/PP/PVC Auto-Deflashing Available Auto-Lubrication Available Operator Needed 1 Delivery Time 35 Working Days Send Engineer for Training Avaialble Guarantee Period 1 Year Transport Package Flim Packaging Specification ISO9001 Trademark Apollo Origin JiangSu HS Code 84773000 Production Capacity 500~600PCS/H

Product Description

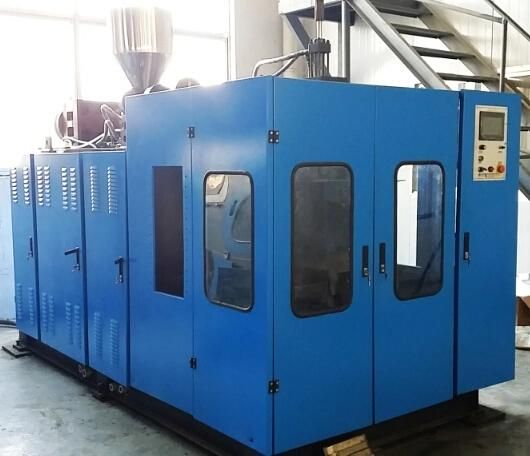

Full-automatic extrusion blow moulding machine:
Automatic blow molding machine for making HDPE or PP detergents bottles,shampoo,liquid soap
cosmetical,household package,jars,jerry cans up to 2L.

The features of this machine:

(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 2L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.

Technical Parameters: ( ABLB45 )Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so onMax volume1000mLOutput capacity360~400 pcs/hSize2.8×1.9×2.3(M) Weight3.8T systemSpecificationParametersNotePlasticizion systemSummarizeHigh efficient low power consumption plasticizion system, transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw45mm,L/D ratio 24, 38CrMoALA Cooling system available Plasticization60Kg/HHDPEHeating Zone3-4 Aluminum HeaterAutomatic heatingHeating power5KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) Cooling Fan3-4zone         Automatic coolingExtrusion systemSummarizeHigh-grade alloy steel, center feeding  Die head number1  Center distance of die heads/ Max die mouth80mm Heating zone3-4   Stainless steel heating cycle Heating power2~4KW Clamping systemSummarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system   Clamping force32KN Template distance90~400mm Max mould size290X350mm Mould materialHigh grade 50# steel Electric systemSummarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
systemOperate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module  Movement controlJapanese Mitsubishi, Chinese/English
Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient  Oil pump motorThree phase asynchronous motor (220V,60HZ)  Oil pumpImported double pump 5.5kw ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.6Mpa Air displacement0.6M3/min Electromagnetic valve Taiwan AIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow60L/min Water pressure0.3-0.6MPa

The main components of the machine. ( ABLB45 )

electronic parts NameTraderMicro computer control systemJapanese MITSUBISHI  Temperature ControllerJapanese MITSUBISHI MODULEAuxiliary RelayOMRON contactorSchneider from FranceElectric motorThree phase 220V SIEMENSPower SourceTAIWAN MEANWELLTransducerDELTATouch ScreenJapanese MITSUBISHIhydraulic parts NameTraderOil pumpTAIWAN HIGH-TECHValveJAPAN YUKENOil pump and connectionJAPAN YUKENSealed partHALLITEair control system NameTraderCylinderAIRTACAir ValveAIRTAC

Max. Product volume	2L
Out put capacity	5 00~600 pc s /h
Screw diameter	45 mm
Screw L/D ratio	24: 1   L/D
Screw drive power	10 KW
Screw heating capacity	2.6 KW
No. of heating zone	3 zones
Output of HDPE	35 KG/H
Oil pump drive power	4.8 KW
Clamping force	32 KN
Max. size of mold	80-350 mm
Mold stroke	250 X 320 mm
Max. die diameter	80 mm
Blowing pressure	0.6 mpa
Air Volume	0.4 M³ /MIN
Cooling water pressure	0.3mpa
Water consumption	30 L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton


The main components of the machine:

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO
