• Model NO.：HXM630I PVC
• Structure：Horizontal
• Plastic Type：Thermoplastic
• Plasticizing Way：Screw Type
• Clamping Way：Hydraulic & Mechanical
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Energy Saving：Servo Energy Saving
• After Sales Service：Engineers Avaiable to Service Machine
• Voltage：According to Countries
• Showroom Locate：Malaysia,Russia,Turkey,Uzberkistan
• Condition：New
• Machine Weight：28.2ton
• Transport Package：Standard Packing
• Specification：9.22*2.87*2.61M
• Trademark：HIGHSUN
• Origin：China
• HS Code：8477101090
• Production Capacity：7000sets,Year
• Package size per unit product：937.00cm * 219.00cm * 248.00cm
• Gross weight per unit product：28000.000kg

Basic Info.

Model NO. HXM630I PVC Structure Horizontal Plastic Type Thermoplastic Plasticizing Way Screw Type Clamping Way Hydraulic & Mechanical Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Energy Saving Servo Energy Saving After Sales Service Engineers Avaiable to Service Machine Voltage According to Countries Showroom Locate Malaysia,Russia,Turkey,Uzberkistan Condition New Machine Weight 28.2ton Transport Package Standard Packing Specification 9.22*2.87*2.61M Trademark HIGHSUN Origin China HS Code 8477101090 Production Capacity 7000sets/Year

Packaging & Delivery

Package size per unit product 937.00cm * 219.00cm * 248.00cm Gross weight per unit product 28000.000kg

Product Description

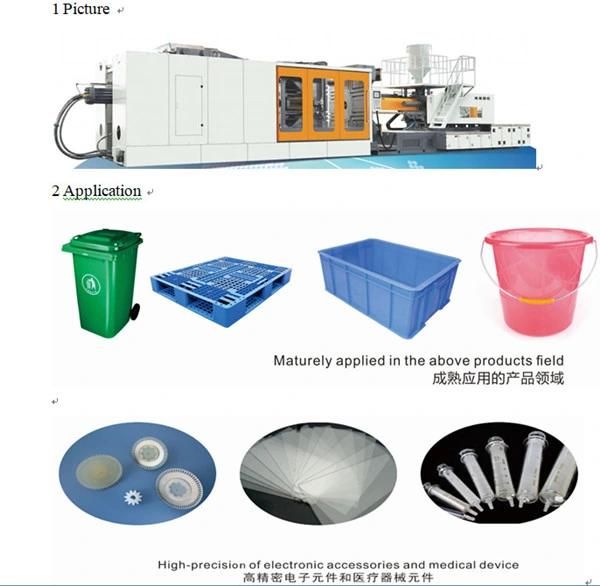

HIGHSUN PVC fitting machine, clamping force:218-1100T

1. Adopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking;
2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;
3. Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience;
4. Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.

		HX(*)630PVC
Injection Unit
Screw diameter	mm	80
Screw L/D ratio	L/D	21.3
Injection capacity in theory	cm³	2110
Injection weight(PVC)	g	2532
Injection pressure	MPa	168
Injection rate	g/s	558
Plasticizing capacity	g/s	74
Screw speed	rpm	130
Clamping Unit
Clamping force	KN	6300
Moving mould-plate stroke	mm	870
Max.Mould height	mm	900
Min.Mould height	mm	350
Space between tie-bars	mm	900x850
Hydraulic ejector force	KN	200
Hydraulic ejector stroke	mm	260
Ejector number	n	17
Other
Pump pressure	MPa	16
Motor/Driving power	KW	30x2
Heating capacity	KW	28.85
Machine dimension	m	9.22*2.87*2.61
Machine weight	t	28.2
Oil tank capacity	L	1156
