HDPE Large Diameter Gas and Water Supply Pipe Extrusion machinery

Qingdao Zhenxiong Mechanical Equipment Co., Ltd.
  • Product Type：PE Water-supply Pipes
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：ZX
  • Voltage：380V 50Hz
  • Weight：20t
  • Power(W)：120kw
  • After-Sales Service：Engineers Available to Service Machinery Overseas
  • Transport Package：Standard Packaging
  • Specification：CAPACITY
  • Trademark：ZX
  • Origin：China
  • HS Code：84778000
  • Production Capacity：15 Set,Sets Per Year

Description

Feature:1. Single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h
 2. The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
 3. Diameter range is 16 mm-800mm, which can be changes inch standard to meet client's special requirment.

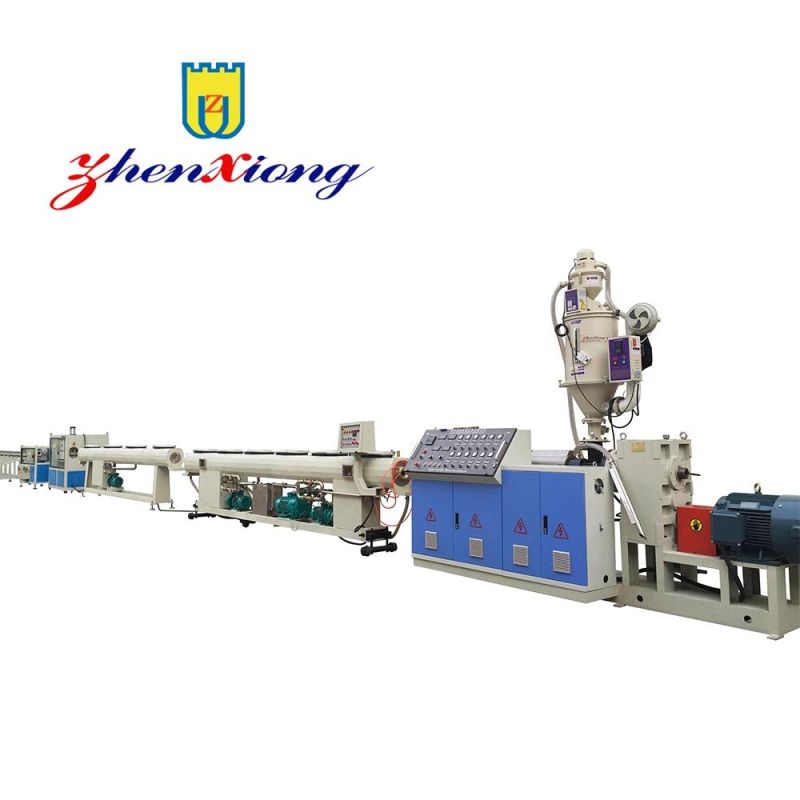

 HDPE Large Diameter Gas and Water Supply Pipe Extrusion machinery

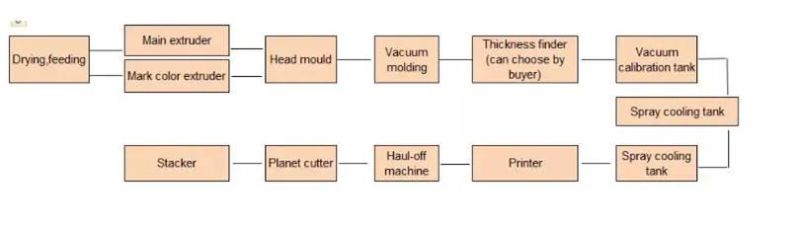

 Work Flow of PE Pipe Production Line:

HDPE Large Diameter Gas and Water Supply Pipe Extrusion machinery
Specifications:
  Type  Diameter(mm)  Extrufer  Capacity(kg/h)  Power(kw)
  PE-63  φ 20-φ 63  SJ65/33  100-150  100
  PE-110  φ 20-φ 110  SJ65/33  150-200  130
  PE-160  φ 63-φ 160  SJ65/33  200-250  145
  PE-250  φ 75-φ 250  SJ75/33  250-350  210
  PE-315  φ 90-φ 315  SJ75/33  250-350  260
  PE-450  φ 160-φ 450  SJ90/33  450-550  380
  PE-630  φ 315-φ 630  SJ120/33  700-900  530
  PE-800  φ 450-φ 800  SJ120/33 or 150/33  1000-1300  600
  PE-1000  φ 630-φ 1000  SJ150/33  1000-1300  650
  PE-1200  φ 800-φ 1200  SJ90/33, 120/33 or 150/33  1000-1500  960
  PE-1600  φ 1000-φ 1600  SJ120/33 or 150/33  1000-1700  1300


1.Payment terms:T/T,Westem Union,PayPal
2.Payment Condition:30% deposit in advance. 70% balance before delivery.
3.Delivery time:depends on detailed machine
4.Packing:Wooden case with plate.
5.Shipment:By Sea.
