PP/PS/Pre/ABS Sheet Extruder Plastic Sheet Extruder
Qingdao Huashida Machinery Co., Ltd.- Type:Profile Extruder
- Plastic Processed:PE
- Product Type:Profile Extrusion Molding Machine
- Feeding Mode:One Feed
- Assembly Structure:Integral Type Extruder
- Screw:Single-Screw
Base Info
- Model NO.:HSD
- Engagement System:Full Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Don′t Exhaust
- Automation:Automatic
- Computerized:Computerized
- Product Width:Max 3000mm
- Product Thickness:0.1-30mm
- Transport Package:Standard Package
- Specification:ISO9001: 2008
- Trademark:HSD
- Origin:Qingdao
- HS Code:8477109000
- Production Capacity:30 Units,Year
Description
Basic Info.
Model NO. HSD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Product Width Max 3000mm Product Thickness 0.1-30mm Transport Package Standard Package Specification ISO9001: 2008 Trademark HSD Origin Qingdao HS Code 8477109000 Production Capacity 30 Units/YearProduct Description

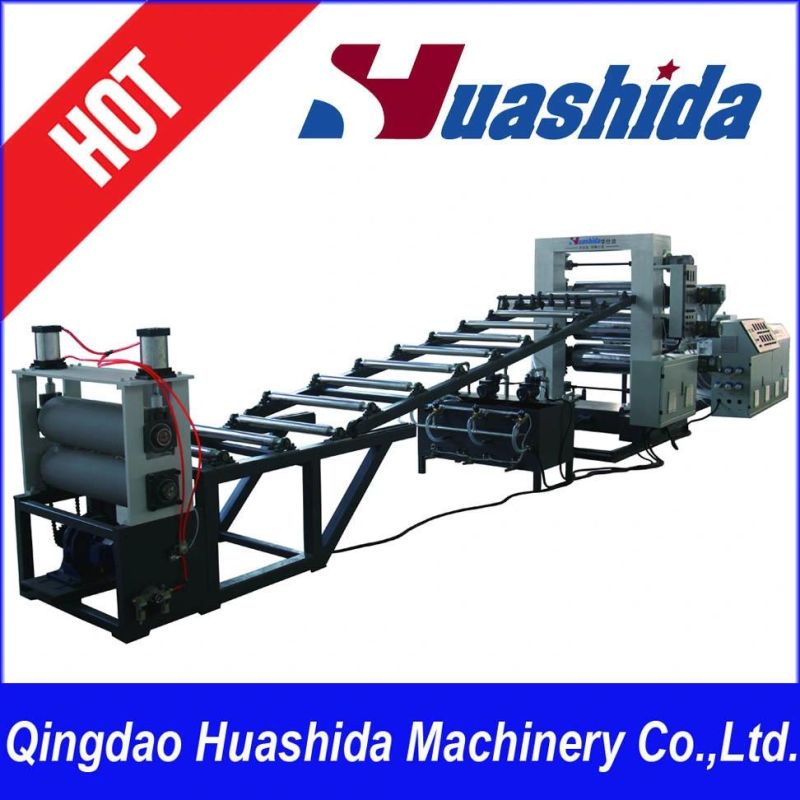

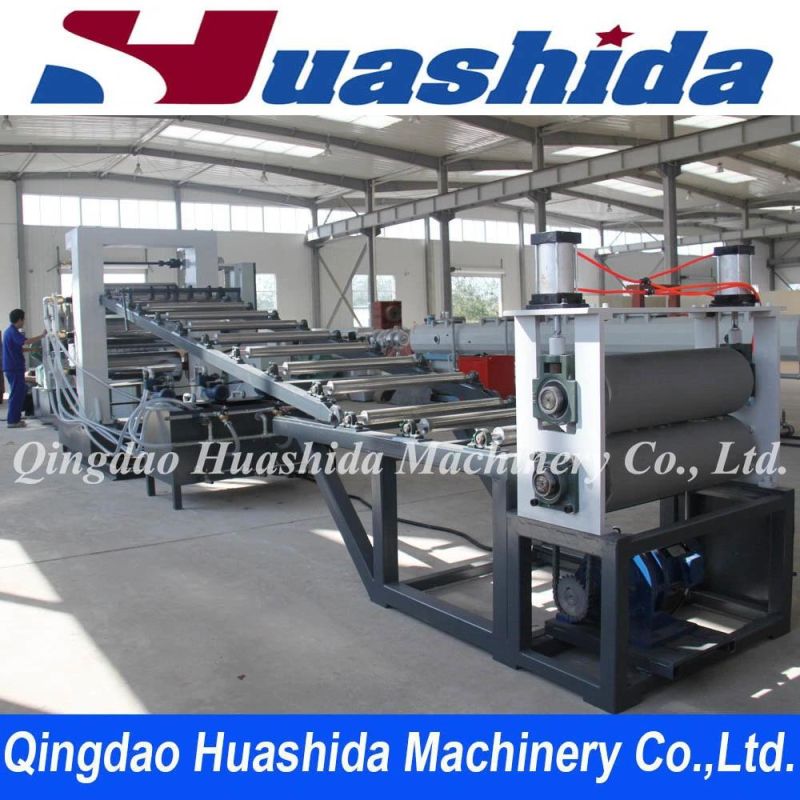

Pp/Ps/Pre/Abs Sheet Extruder Plastic Sheet ExtruderThe sheet extrusion line is the complete, high performance, reliable sheet extrusion line. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm single extruder to produce just the capacity what you need.
The single screw extruder with good motor, digital controls, vacuum venting, screen changer, gear box, and a flexible lip die. The extrusion line also can be equipped with the PLC/PCC control system,
The sheet take-offs (Three rolls calendar) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.
Character of the PE,PP board:
1.Low density,good sanitaton performance
2.Erosion resistance and heat resisitance
Application:
ABS board is widely used in refrigerator industry such as the fridge drawer and gallbladder,Ps board is manily used in semi-conductor electron, computer communication.
Extruder | Sheet Width | Sheet Thickness | Capacity | Total Power | Dimension |
SJ65/30 | Max. 800mm | 0.2-3mm | 150Kg/h | 100Kw | 18× 2× 2.5 |
SJ90/30(33) | Max. 1200mm | 3-15mm | 280-300Kg/h | 150Kw | 24× 2× 2.5 |
SJ120/30(33) | Max. 3000mm | 0.5-2.0mm | 500Kg/h | 250Kw | 20× 4× 2.5 |
