• Model NO.：HSD
• Condition：New
• Pipe Range：63-250mm
• Usage：Industrial
• Transport Package：Standard Package for Export
• Specification：ISO9001: 2008
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：63-250mm

Basic Info.

Model NO. HSD Condition New Pipe Range 63-250mm Usage Industrial Transport Package Standard Package for Export Specification ISO9001: 2008 Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 63-250mm

Product Description

                         Pipeline Plastic Machine Hdpe Pipe Production Extruder

Product description:
Water supply pipe machine is applicable for extrusion of PE, PP, PB, PERT, ABS etc...
This water supply pipe machine mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and bracket.
The machine production line is controlled by the PLC computer, easy and convenient to operate.

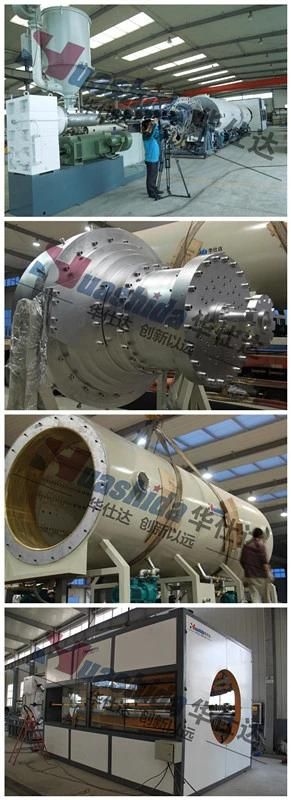

The complete extrusion consists of following items:
Single screw extruder
Co- extruder: Manufacturing marking line on pipe or multilayer of pipes
Die head
Vacuum tank: Due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: Due to diameter, the numbers of cooling tank can be one, two or three
Haul-offs: Due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
Cutter: Due to diameter, it can be designing of no-scraps cutter or planetary cutter
Coiler/Tipping chute

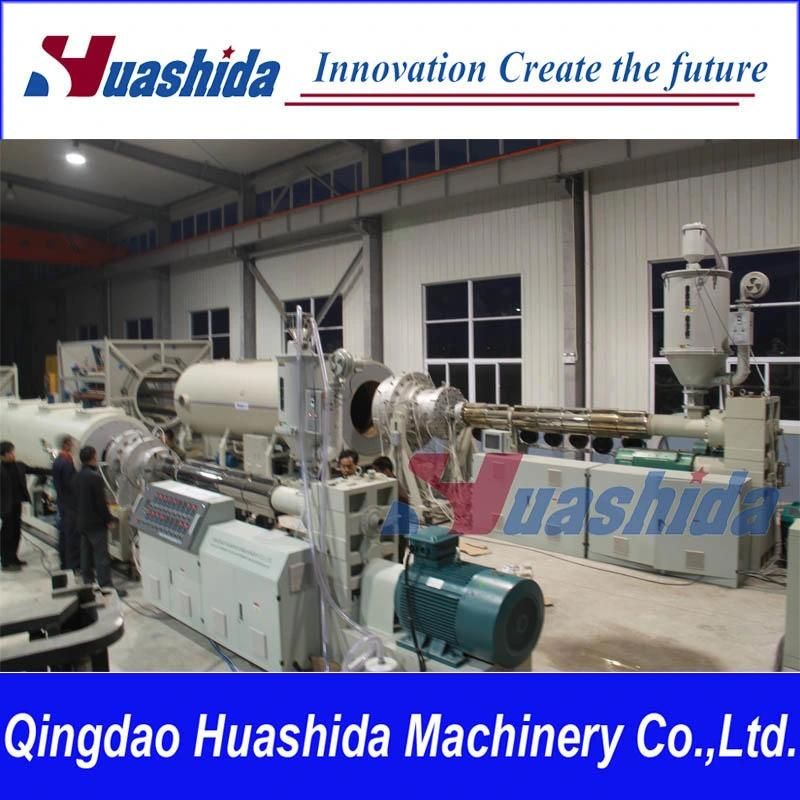

Simple introduction of PE pipe production line:
Pipe production line is mainly used to produce pipe material whose raw materal is mainly PE resin
1. Man-machine interface operation, high automation;
2. Adopts special screw and have good plasticize result;
3. Adopts complex screw die head, effec-tively set rid of remembering function ofmaterial;
4. Vacuum calibration, constant temperature control, no stress for Pipes.
5. Adopts co-extrusion die head and adds Marking line for pipes.

Product parameters:

Style	SPEG-250
Pipe Size(mm)	Φ 63-Φ 250
Extrusion Capacity(KG/H)	450
Total installation Power(KW)	210
Overall Dimension(M)	36x1.8x3
Total Weight(T)	14.5
