• Model NO.：400
• Computerized：Computerized
• Certification：CE, ISO9001:2008

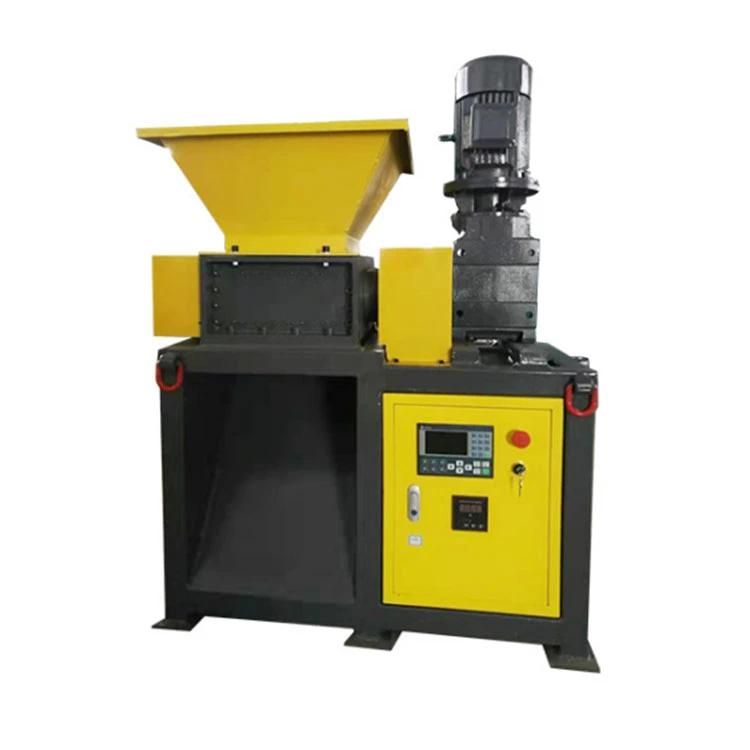

• Name：Njwg Automatic Mini Double Shaft Shredder Machine
• Motor：4kw
• Reducer：1set
• Main Shaft：60mm
• Blade Size：180*15
• Blade Qty：26PCS
• Feeding Port：500*600*300mm
• Capacity：300-500kg,H
• Weight：800kg
• Blade Material：55sicr,9crsi,SKD11
• Transport Package：Wooden Case
• Specification：1120*600*1480mm
• Trademark：WANGUO
• Origin：China
• HS Code：8479820090
• Production Capacity：50

Product introduction       Shredder can be used to tear hard to break plastic, rubber, large tire, large nylon material, rubber head material, car bumper, large fishing net, large pipe, fiber, paper, wood, electrical parts, cable, PET bottle, cardboard, circuit board, wood, plastic barrel and other solid objects.
       The shredder is also called metal shredder, double axis shredder, wood shredder, tire shredder plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubbershredder,Aluminum shredder.
       The main function of the equipment is to cut and extrude large pieces of materials and large-diameter metal materials which are not convenient for transportation into pieces that meet the requirements.Product features
   1  Double cutter shaft mechanism, using multi blade and multi claw cutters, and cooperating with cutter shaft for multi angle change, saving labor and strong cutting force, showing strong crushing ability.
2  The motor is driven by the gearbox transmission system, which makes it a powerful operation with low speed and high torque to achieve   the crushing effect.
3 Large transmission wheel, made of special steel, hardened by heat treatment, long service life.
4  The gearbox adopts oil inlet pulley, which has smooth operation, low noise, large torque and long-time operation resistance.
5 Low speed and high torque design, provide low noise and less dust, improve good working environment.


Model300*180400*180500*200600*200Motor3KW-4=1set4KW-4=1set7.5KW-4=1set11KW-4=1setReducerJK77=1setJK87=1setJK97=1setJKA107=12setElectric control cabinetPLC protection systemPLC protection systemPLC protection systemPLC protection systemInput speed16turns/M17turns/M15turns/M15turns/MInput torque1696Nm2176Nm4574Nm24960NmInput shaft diameter(mm)6060mm70mm85mmBlade specification(mm)180*12180*15200*20200*20Number of blades25262520Chassis size(mm)500*500*300500*600*300600*700*400940*680*500Size(mm)850*500*13001120*600*14801200*600*15501550*660*1800FAQ
1)How about the quality of machines?
Our machines adopt advanced technology. Moreover, we carry out strict supervision during productionand make sure every finished product with high quality.

2)About the delivery time?
Generally, it will be about 20-35 days days after your deposit, which also will be on basis of your order.

3)As for the warranty?
We provide 12 months for warranty.

4)Which kind of payment is available for us?
T/T, L/C and Western Union are common for us.

5)How about the service?
Provide overseas installation, debugging and training the relating work.
