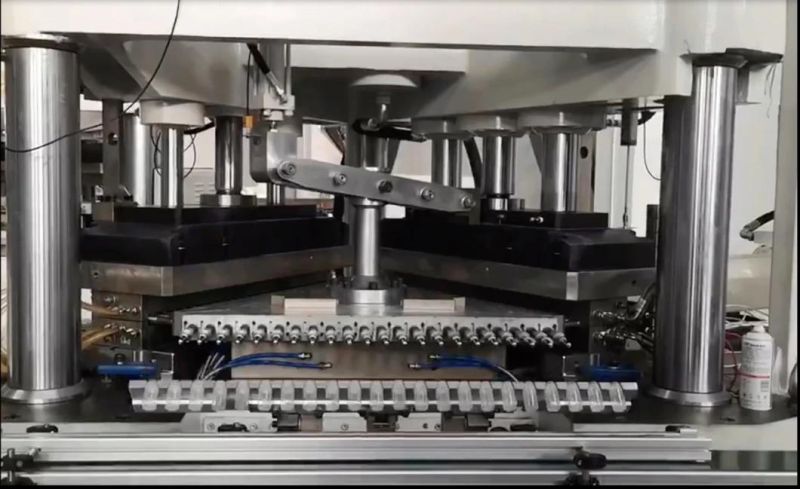

22 Cavity Injection Blow Molding Machine
Zhang Jia Gang Stone Mechanical Equipment Co., Ltd.- Type：Stretch Blow Molding Machine
- Raw Material：HDPE,PP
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：STIBM95S
- Transport Package：Standard Export Package
- Specification：5ml-300ml
- Trademark：STONEPACK
- Origin：China, Zhang Jia Gang
- HS Code：8477302000
- Production Capacity：100set,Year
Description
Technical Parameters Preform system Unit STIBM95S Screw diameter mm 65 Screw L/D L/D 23:1 Shot volume cm3 660 Injection weight(HDPE) g 625 Max.Screw speed rpm 10-235 Heating capacity KW 12.6 No.of heating zone Qty 3+N Clamping system Clamping force of preform KN 1008 Clamping force of blowing KN 221 Opening stroke of mold planten mm 160 Lifting H of rotary table mm 80 Max.Platen size(L×W) mm 900×480 Min.mold thickness(H) mm 280 Heating capacity of mould KW 8 Stripping system Stripping stroke mm 260 Dry cycle sec 3 Driving system Motor power KW 26+26+3 Hydraulic pressure Mpa 14 Product range Suitable bottle range ml 5-800 MAX.bottle height mm ≤220 Max.Dia.of bottle mm ≤100 Other Min.air pressure Mpa 1 Discharge rate of compressed air m3/mm ≥1 Water flowage m3/h 6
()Total rated power with mold heating KW 75.6 Dimension(L×W×H) M 5.0×2.0×2.6 Net weinght ton 12
()
| Name | Brand | |
| 1 | Electro-Hydraulic system | ++ INOVANCE controller+motor+SUMITOMO pump :++Or TECHMATION controller+PHASE motor+ECKERLE pump |
| 2 | Hydraulic motor | INTERMOT OR STF |
| 3 | Hydraulic valve | YUKEN |
| 4 | Seal Kit | COG,DINGZING,HALLITE |
| 5 | Accumulator | OLAER |
| 6 | Oil cooler | DELTA |
| 7 | High-pressure hose | EATON orCONTITEC orPARKER |
| 8 | Air Valve | SMCFESTO |
| 9 | Pneumatic connector | CAMOZZI |
| 10 | Control system | PLC+ OMRON+MCSG |
| 11 | A.C. Contactor | SCHNEIDER |
| 12 | Relay | , OMRON or SCHNEIDER |
| 13 | Promixity switch | OMRON |
| 14 | Linear Scale | GERFAN |
