Plastic Extruder for Five Layer PP Sheet
Rui'an Hengfeng Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PP, PS
- Product Type：Granulating Extruder
- Feeding Mode：Multiple Feed
- Assembly Structure：Integral Type Extruder
- Screw：Multi-Screw
Base Info
- Model NO.：HFSJ40,30A-100,33B-80,33C-700A
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Screw Diameter：40mm
- Screw L/D：30: 1
- Barrel Heating Power：3kw,Section; X; 4section
- Barrel Screw Material：38crmoala
- Screwheating Treatment：Nitrogen Hardness Hv850 Depth0.5-0.7mm
- Barrel Heating Treatment：Nitrogenhardneshv950 , Depth 0.5-0.7mm
- Heater：Castingaluminum Heater
- Maindriving Motor：15kwacmotor
- Controller：Japanyaskawainvertor
- Screw Rev Speed：0_120 Rpm
- Transport Package：Sea-Worthy Packing
- Specification：CE Certificate
- Trademark：HENGFENG
- Origin：China
- HS Code：8477209000
- Production Capacity：450kgs,Hr
Description
Extruder A:1Screw Diameter Φ 40mm origin: Zhoushan 2Screw L/D 30: 1 3Barrel Heating Power 3kw/section X 4section 4Barrel Screw Material 38CrMOALA 5Screw Heating Treatment Nitrogen Hardness≥ HV850 , Depth0.5-0.7mm 6Barrel Heating Treatment Nitrogen Hardness≥ HV950 , Depth 0.5-0.7mm 7Heater Casting Aluminum Heater 8Main Driving Motor 15kw AC motor 9Controller Japan Yaskawa invertor 10Screw Rev Speed 0_120 rpm 11Barrel Cooling Method Fan cooling 12Gear Box Hard tooth surface gear box Origin: Zhoushan 13Output 40kgs 14Hopper Capacity 250KG 1Screen Changer Manual 2Filter Material 38CrMoala 3heater material Ceramic 4Heating Power 4 KW 5Control zone 1 Section 6Filter Diameter Φ 70mm 1 Screw Diameter Φ 100mm origin: Zhoushan 2 Screw L/D 33: 1 3Barrel Heating Power 5 kw/section X 5section 4Barrel Screw Material 38CrMOALA 5Screw Heating Treatment Nitrogen Hardness≥ HV850 , Depth0.5-0.7mm 6Barrel Heating Treatment Nitrogen Hardness≥ HV950 , Depth 0.5-0.7mm 7Heater Casting Aluminum Heater 8Main Driving Motor 75 kw ACmotor 9Controller Japan Yaskawa inverter 10Screw Rev Speed 0_100 rpm 11Barrel Cooling Method Fan cooling with 240W 12Gear Box Hard tooth surface gear box Origin: Zhoushan 13output 250 kgs 14dryer 200kgs 15Sprial Autoloader 800kg/h 1Screen Changer Automatic Hydraulic Screen changer 2Screen changer Material Special alloy-steel 3Pressure Sensor 1Set 4Heating Power 5 KW 5Filter Diameter Φ 120mm 1 Screw Diameter Φ 80mm origin: Zhoushan 2 Screw L/D 32: 1 3Barrel Heating Power 4 kw/section X 4section 4Barrel Screw Material 38CrMOALA 5Screw Heating Treatment Nitrogen Hardness≥ HV850 , Depth0.5-0.7mm 6Barrel Heating Treatment Nitrogen Hardness≥ HV950 , Depth 0.5-0.7mm 7Heater Casting Aluminum Heater 8Main Driving Motor 35 kw ACmotor 9Controller Japan Yaskawa inverter 10Screw Rev Speed 0_100 rpm 11Barrel Cooling Method Fan cooling with 240W 12Gear Box Hard tooth surface gear box Origin: Zhoushan 13output 150 kgs 14dryer 200kgs 15Sprial Autoloader 600kg/h 1Screen Changer Automatic Hydraulic Screen changer 2Screen changer Material Special alloy-steel 3Pressure Sensor 1Set 4Heating Power 5 KW 5Filter Diameter Φ 120mm

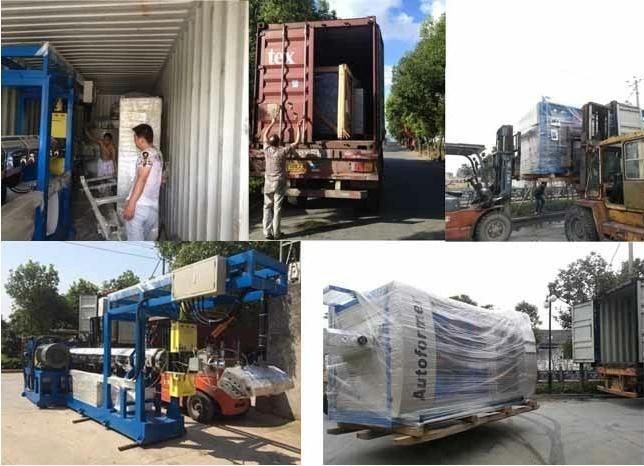

shipping packaging:
contact person:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
shipping packaging:
Our company
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.
