• Certification：ISO9001:2008
• Customized：Customized
• Transport Package：20,40 Gp
• Origin：China
• HS Code：84778000
• Production Capacity：100 Sets Per Year

Basic Info.

Certification ISO9001:2008 Customized Customized Transport Package 20/40 Gp Origin China HS Code 84778000 Production Capacity 100 Sets Per Year

Product Description

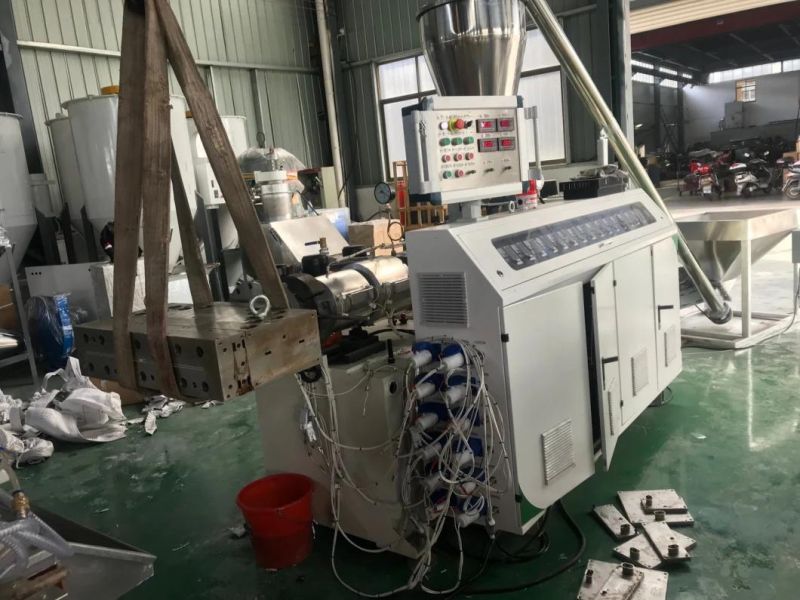

PVC/WPC Profile Panel Board Ceiling Extrusion Machine

Questions for Buyers
Pls think about the following questions and then send your messeage. And we will offer you our quotation ASAP.
1. Could you tell me what is the material? PVC/ WPC?
2. Could you tell me the width and thickness of the board? Or could you send me some pictures about it
3. Do you have requirement to the capacity?

Discription:

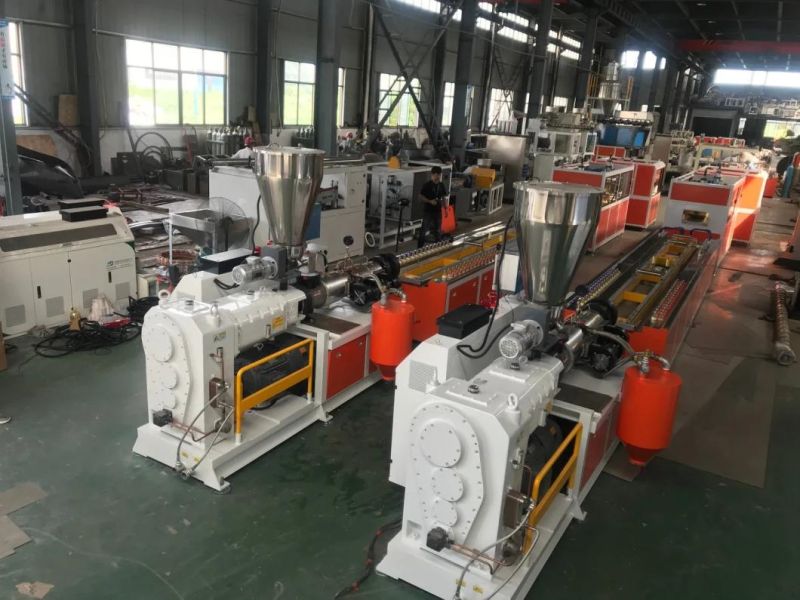

YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.


Feature:

1. Capacity of main frame can be optionally chosen from 60-700 kgs/hour.
2. With different molds, it can products different kinds of profiles.
3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is           large.
4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating         so as to meet demand of high speed extruding.
5. Movement speed and drawing speed of cutting machine keep synchronous.
6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can                  conduct automatic cutting with fixed length.
7. Powder & dust suction device can be provided.
8. The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.
9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.


Main technical parameters:

Model	YF180	YF240	YF300	YF400	YF500	YF600
Max. Width of product(mm)	180	240	300	400	500	600
Extruder model	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJSZ80/156
Max. Extrusion capacity (kg/h)	150	250	250	250	350	350
Extruder power	22	30/37	30/37	30/37	55	55
Cooling water(M3/H)	5	7	7	8	10	12
