PVC Plastic Pipe Extrusion Line Mixier Cutter Line

Zhangjiagang Kangju Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：2 Years Free Spare Parts
  • Type：Pipe Extruder
  • Plastic Processed：PVC
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：Multiple Feed

Base Info

  • Model NO.：SJZ 50-38
  • Assembly Structure：Integral Type Extruder
  • Screw：Twin-Screw
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized

Description

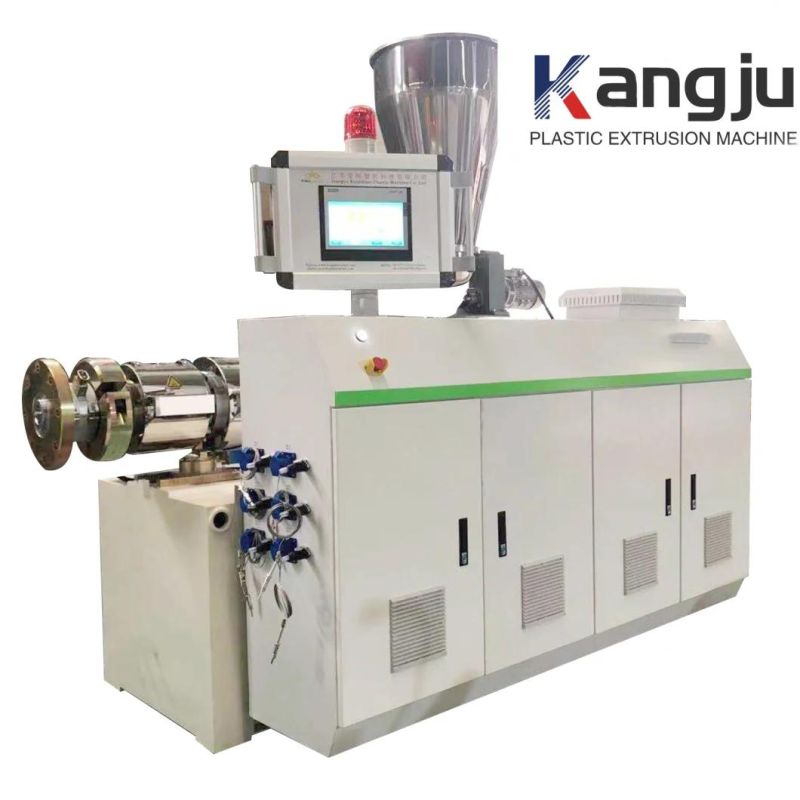

PVC Plastic Pipe Extrusion Line Mixier Cutter LineTwin Screw Extruder
1.Siemens PLC
2.Quality Screw and Barrel
3 Air Cooled Ceramic Heater
4 High Quality Gearbox and Distribution Box
5 Better Cooling of Gearbox
6 Advanced Vacuum System
7 Easy Cable Connection

 Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to
lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing

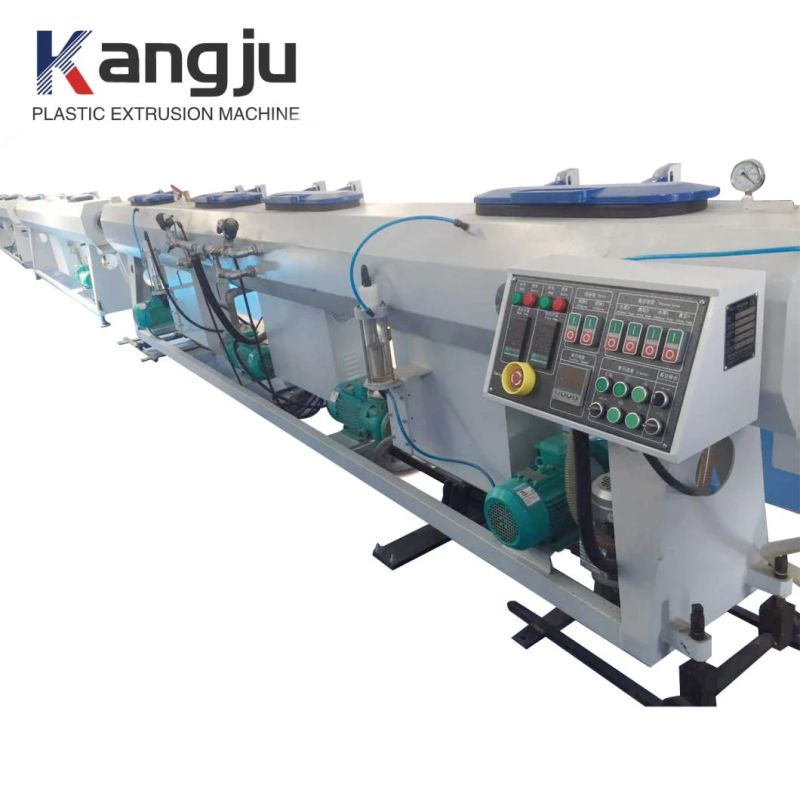

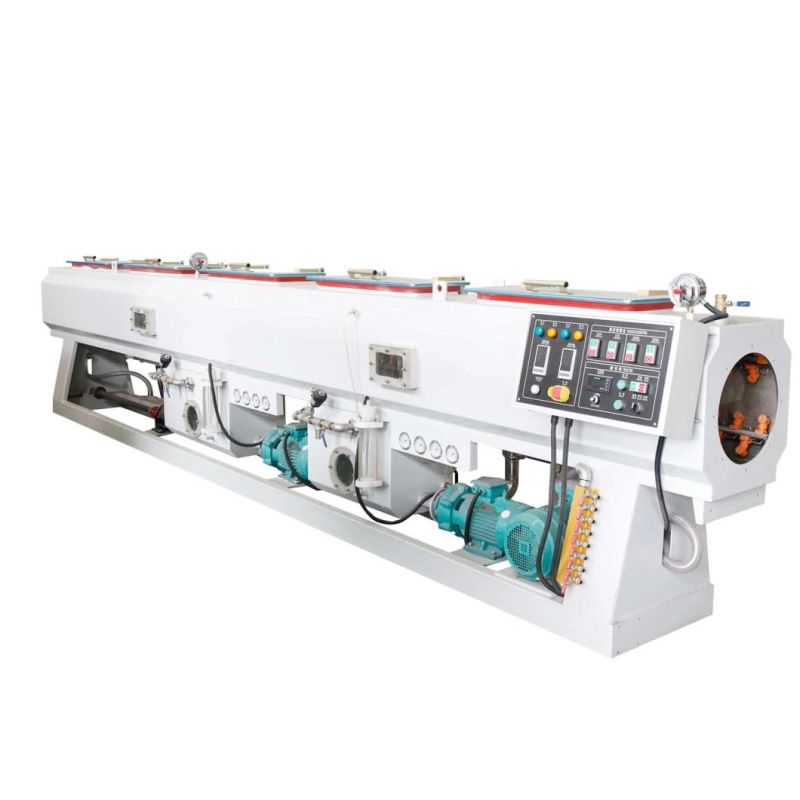

effect and high capacity.PVC Plastic Pipe Extrusion Line Mixier Cutter LinePVC Plastic Pipe Extrusion Line Mixier Cutter LineCooling Tank
1 Pipe Clamping Device
2 Water Tank Filter
3 Quality Spray Nozzle
4 Pipe Support Adjusting Device
5 Pipe Support Device

Cooling tank is used to cool pipe further.

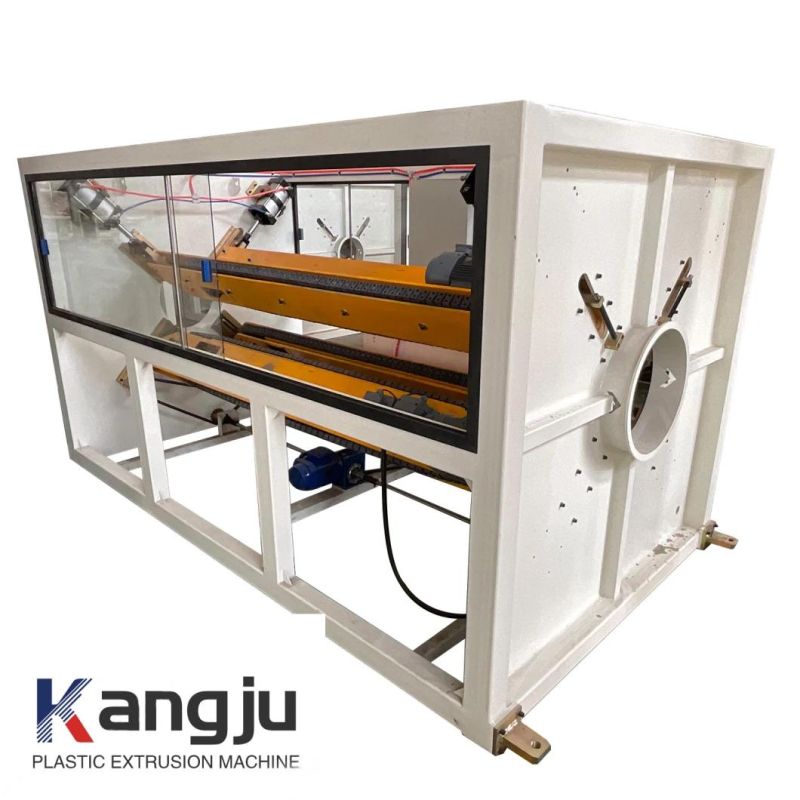

  Haul off unit
1 Pipe Clamping Device
2 Water Tank Filter
3 Quality Spray Nozzle
4 Pipe Support Adjusting Device
5 Pipe Support Device

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed,
also avoid deformation of pipe during traction.
 PVC Plastic Pipe Extrusion Line Mixier Cutter Line PVC Plastic Pipe Extrusion Line Mixier Cutter LineCutter
1 Aluminum Clamping Device
2 Advanced Hydraulic System
3 Dust Collection System

Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut.

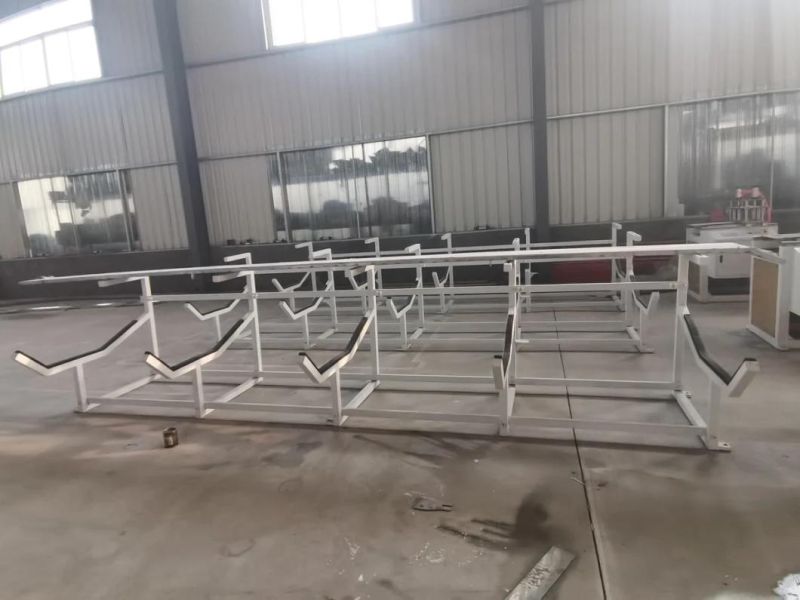

  Stacker
1 Pipe surface protection
2 Central Height Adjustment

To support and unload pipes. Length of stacker can be customized.

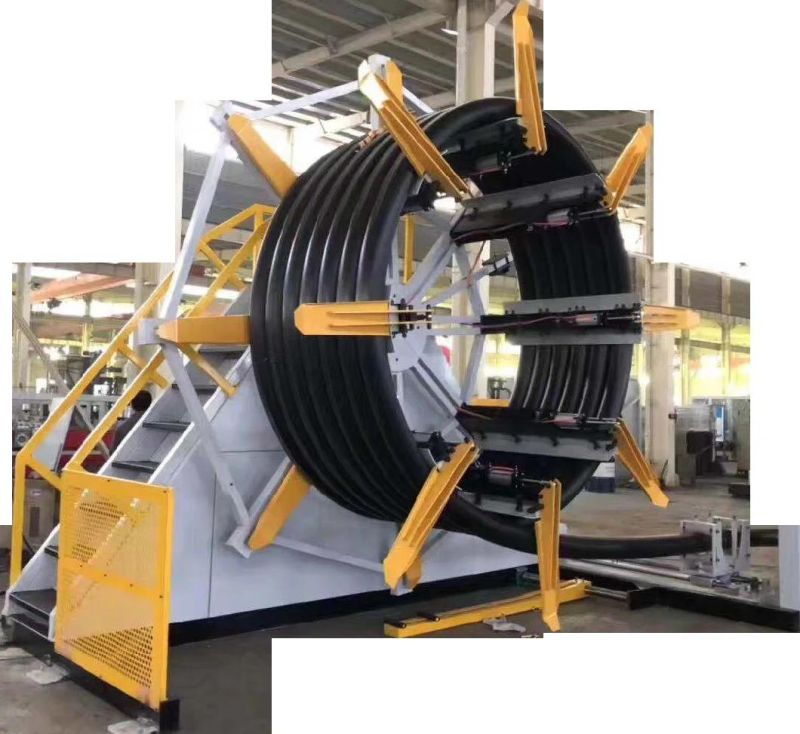

 PVC Plastic Pipe Extrusion Line Mixier Cutter Line PVC Plastic Pipe Extrusion Line Mixier Cutter LineCoiler
Use for servo motor

To coil pipe into roller, easy for storage and transportation. Usually used for pipe below size 110mm. Have single station and
double station for choice.

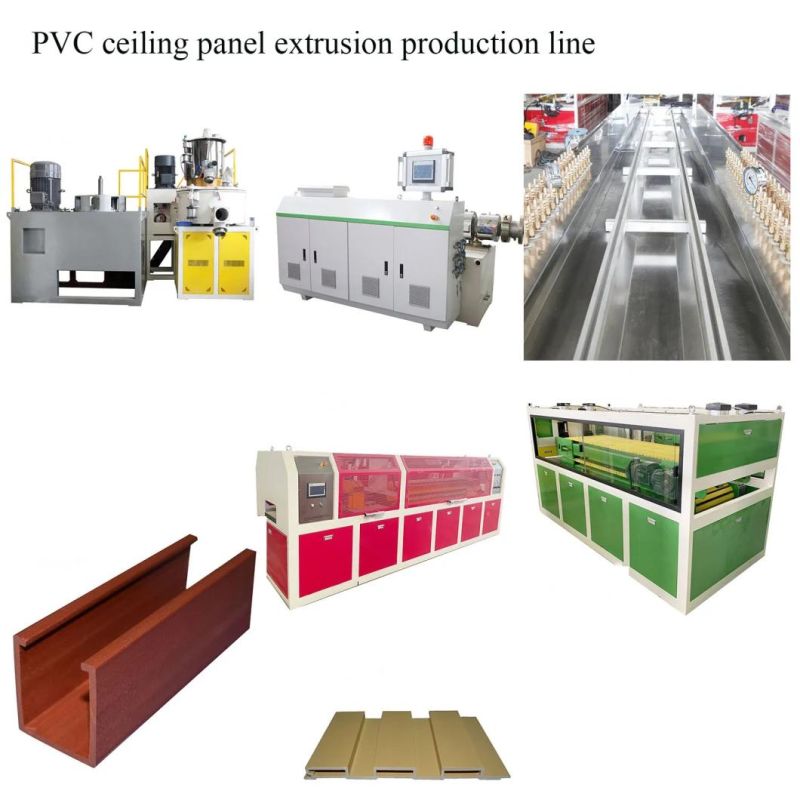

 PVC Plastic Pipe Extrusion Line Mixier Cutter LinePVC ceiling panel sheet extrusion production line.
