• PVC Ceiling Production Line：Ceiling Machine
• PVC Ceiling：Profile Production Line
• Inverter：ABB
• Motor：Weg
• Wall Cladding：300mm Width
• Capacity：300kg,Hr
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84778020
• Production Capacity：300kg,Hr

Basic Info.

PVC Ceiling Production Line Ceiling Machine PVC Ceiling Profile Production Line Inverter ABB Motor Weg Wall Cladding 300mm Width Capacity 300kg/Hr Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84778020 Production Capacity 300kg/Hr

Product Description

Plastic WPC(PE/PP) wood grain hollow decking board profile extrusion/extruder making machinery

Through market combination and our technology innovation, Midtech pleased to provide
Energy saving (less 15% power consumption- high effiency motor& special type of heating),
High standard (Bimetallic & PLC Intelligence- longer screw working life),
Reliable quality (vertical gearbox by SKF bearing)

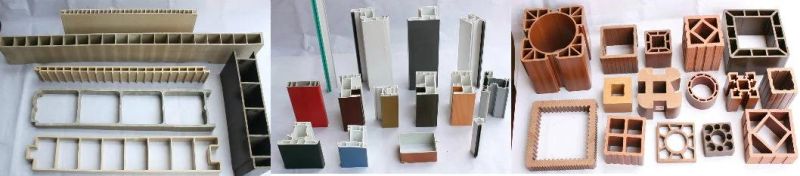

Extruder and whole set PVC profile, soft-hard co-extrusion profile, foam profile extrusion, multi layer co-extrusion, PE+ wood (WPC) solutions










Technical data

Model/data	Max width	Extruder model	Motor power	Max capacity
MT180	180mm	MT51/105	22kw	120kg/h
MT240	300mm	MT65/132	37kw	260kg/h
MT600	600mm	MT80/156	55kw	400kg/h
MT800	800mm	MT92/188	90/100kw	650kg/h

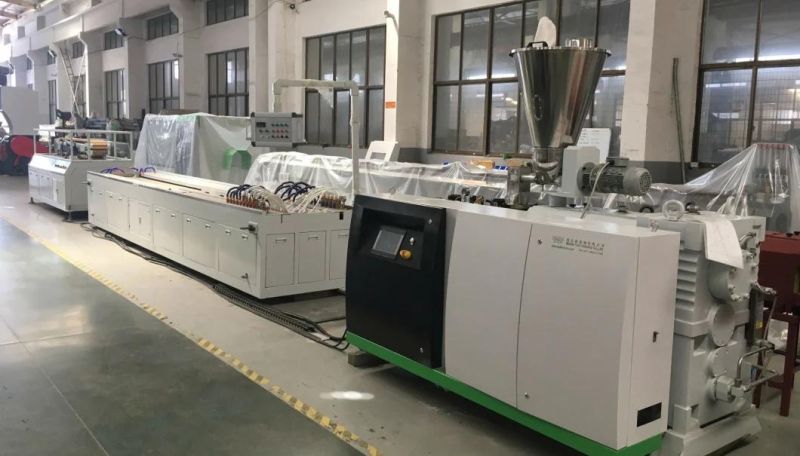

Work flow and detailed information:

Feeder	• To feed material into extruder;

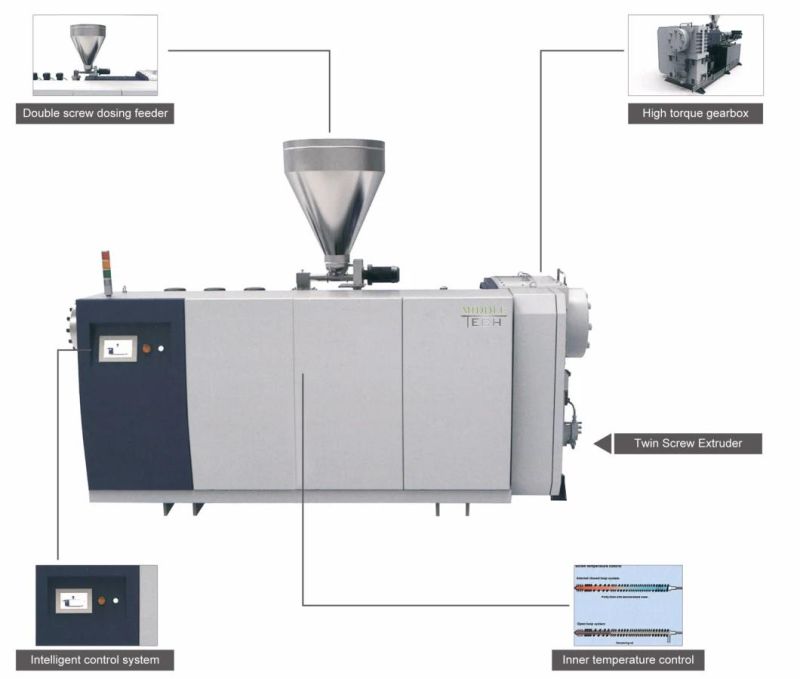

Extruder	•World famous brand electrical component: Siemens, Schneider, ABB etc;  • High torque gearbox with adopts NSK/SKF bearing;  • Siemens/WEG original motor achieved global after service;  • Bimetallic screw and barrel;  • Intelligent PLC controlling system with human-friendly interface.

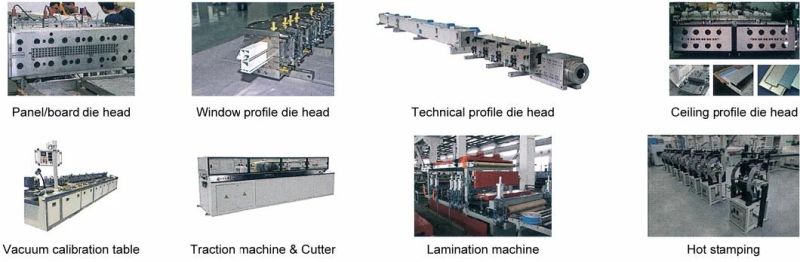

Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile
Calibration table	• Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Hot stamping machine	• Decorative pattern and film protection of product surface

Why choose us
♦ Specified screw design and material application for high percentage CaCO3
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines: 18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru...



If you need any support, please don't hesitate to contact us on
