• Model NO.：HGTJ401
• Effective Work Scope：1200mm*2200mm*190mm( Can Be Changed)
• Process Capacity：6-30m,Min
• Glue Width：1.5-8mm, 8-30mm
• Transport Package：Plastic Pakage in Container
• Specification：CE, ISO9001, SGS
• Trademark：HGIT
• Origin：China
• HS Code：842489
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. HGTJ401 Effective Work Scope 1200mm*2200mm*190mm( Can Be Changed) Process Capacity 6-30m/Min Glue Width 1.5-8mm, 8-30mm Transport Package Plastic Pakage in Container Specification CE, ISO9001, SGS Trademark HGIT Origin China HS Code 842489 Production Capacity 200 Sets/Year

Product Description

Waterproof Polyurethane Foam Sealing Equipment

1. Model: HGTJ401

2. Effective stroke: 2200mm*1200mm-190mm(Zaxis adjustable)

3. Amount of output: 1-4g/s

4. Strip width: 1.5-30mm

5. Control System: Germany Beckhoff System (It has the functions of remote monitoring and service)

6. Process: FIPFG

7. Cleaning Method: Water Cleaning

8. Color: According to the customers' requirements

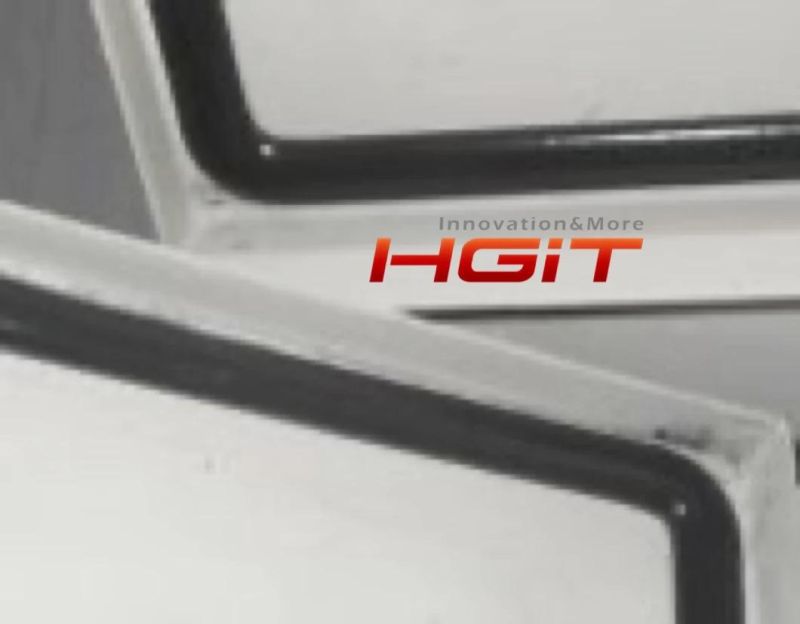

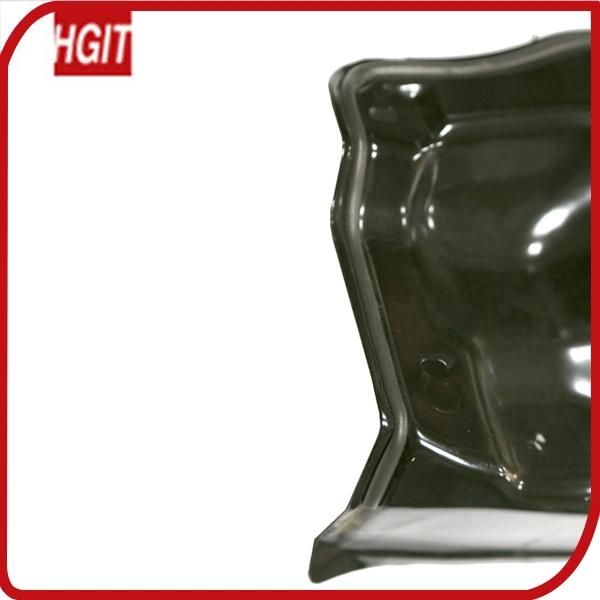

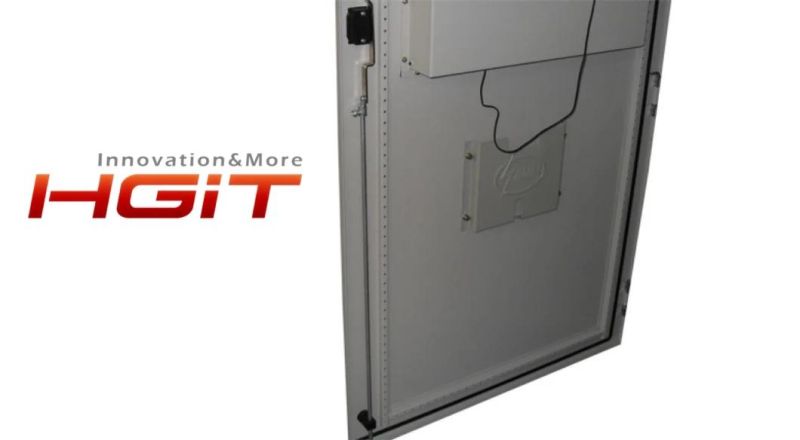

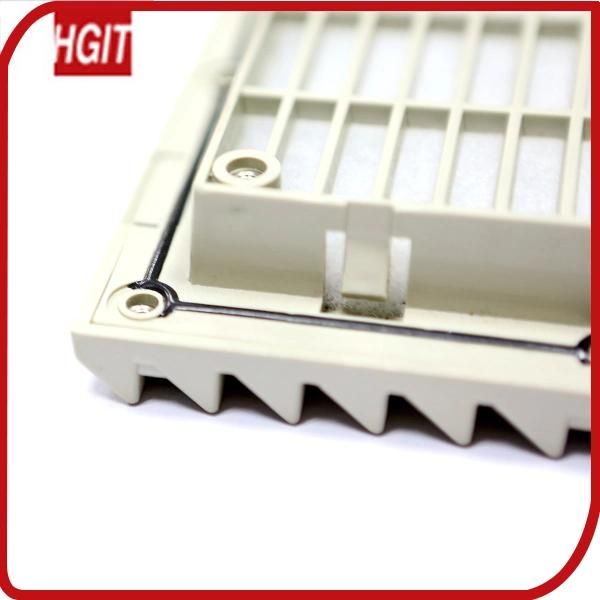

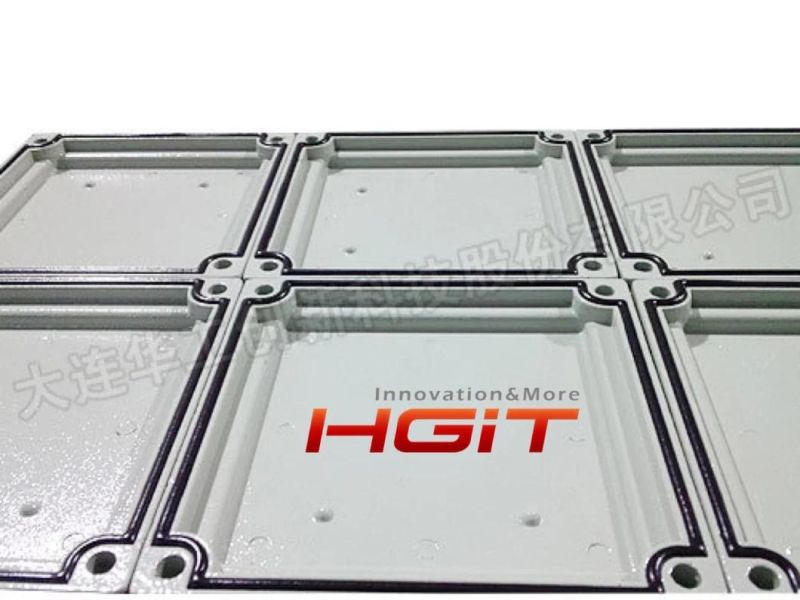

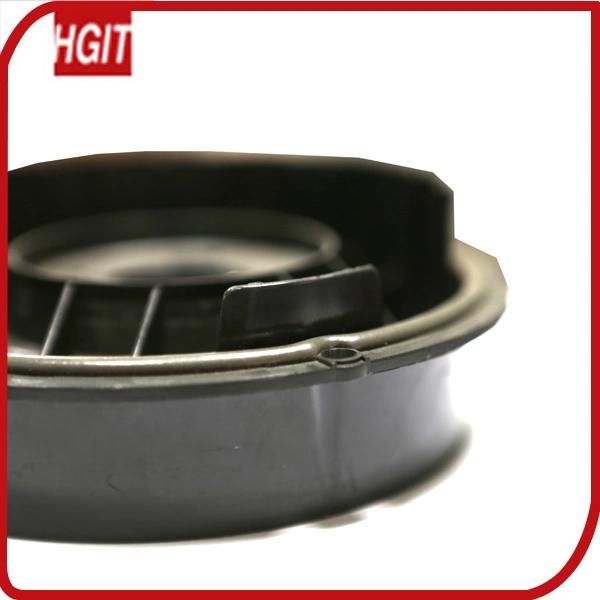

9. Application: Cabinets, Lighting, Automobile, Electronics, Filter, Battery etc.

10. Service: Excellent After-sale Service, if you have any question about the seal machine, we will arrange the after-sale service to maintain at once, and we have special test lab for mixing head and glue test

11. Certification: CE&ISO

12. Process details:
Foam machine is foamed directly onto the part by using FIPFG (formed-in-place foam gasket) technology, This technology replaces the traditional method of tape affixed, and the surface crust uniform and excellent flexibility. Widely used in enclosure, lighting, and automobile industries. At present produced by HGIT brand of automatic foam machine in a leading position in China.
