• Model NO.：Polyamide Insulator Extruder Machine
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Name：PA 66 GF 25 Profile Making Machine
• Color：Custom-Made
• Motor：Siemens
• Inverters：ABB
• Handle：PP Pet Plastic
• Core Part：Pplyamide Extrusion Machine Tools
• Feeding Type：Vacuum Conveyor
• City：Zhangjiagang
• Screw Type：38CrMoAl
• Material Transfer：Screw Loader
• Machine Material：Hard Steel
• Cutting Type：Shear
• Temperature Control：Omron
• Contactor：Schneid
• Apply：PA 66 Thermal Break Profile Produce
• Transport Package：Sea Packing
• Specification：125kg,h
• Trademark：WEDO
• Origin：China
• HS Code：847780000
• Production Capacity：10 Sets

Basic Info.

Model NO. Polyamide Insulator Extruder Machine Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Name PA 66 GF 25 Profile Making Machine Color Custom-Made Motor Siemens Inverters ABB Handle PP Pet Plastic Core Part Pplyamide Extrusion Machine Tools Feeding Type Vacuum Conveyor City Zhangjiagang Screw Type 38CrMoAl Material Transfer Screw Loader Machine Material Hard Steel Cutting Type Shear Temperature Control Omron Contactor Schneid Apply PA 66 Thermal Break Profile Produce Transport Package Sea Packing Specification 125kg/h Trademark WEDO Origin China HS Code 847780000 Production Capacity 10 Sets

Product Description

Polyamide Insulator Extruder Machine, PA 66 GF 25 Insulator Strip Extrusion Machine, Polyamide 66 Glass Fiber 25 Thermal Break Strip Production Machine

Product Description of Polyamide 66 PA66 GF25 Polyamide profile thermal break strip extrusion making machine
The utility model mainly uses the special screw to make the polyamide nylon 66 and the glass fiber obtain good plasticization, and the extrusion die/tool extruded into a thermal insulating strip, which is widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.
PA66+GF pellets after drying machine into the hopper into the barrel, screw and pellets contact with the rotation of the screw forced to promote the spiral groove die direction. Because the screw barrel gap is small, the granular material is hot body under great pressure in the forward process; the temperature of the electric heating ring body is plasticizing nylon thermosol. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling process and become adiabatic adhesive tape products.

Photos of Polyamide Insulator Extruder Machine, PA 66 GF 25 Insulator Strip Extrusion Machine, Polyamide 66 Glass Fiber 25 Thermal Break Strip Production Machine
 over view of PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine
Mold tools of PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine

mold tools proudce of PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine

the mold tools of PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine

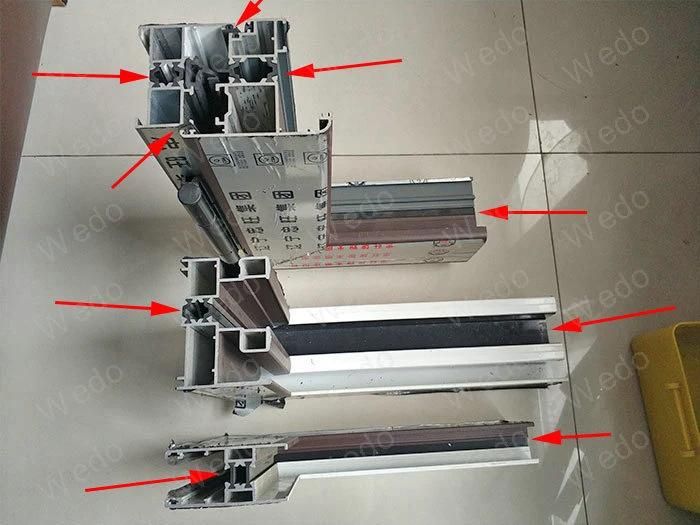

the thermal profile strip installed after PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine

Material and the product of PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine

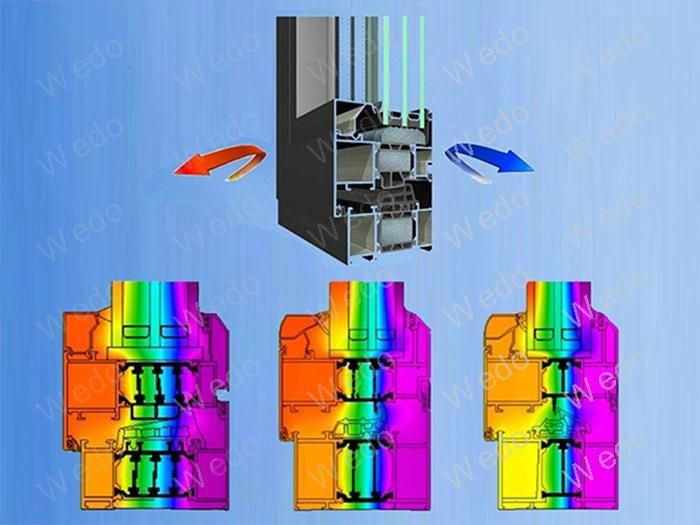

The PA thermal break profile strip bars function


Why use polyamide strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminum profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product.

"Wear a process" heat insulation material - the current domestic thermal insulation strip is polyamide 66+GF25 (Polyamide66, commonly known as nylon 66+25% glass fiber)
1 main materials                                   PA66+GF
2 density (g/cm3)                                  1.3
3 tensile strength                                   (N/mm2 = 110)
4 elastic modulus (N/mm2)                        900
5 thermal conductivity (W/m2.k)                0.3
6 hot deformation temperature (ºC)           250

Application of polyamide strip:
1. Used for thermal break aluminum window, door, curtain and walls
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving

PA66 GF25 Polyamide Nylon Strips Thermal Break Profile Bar Extrusion Making Production machine including:

1, Raw material loading device(automatic)

2, Raw material drying device

3, Main thermal break strip extruder

4, Polyamide strip moulds / tools

5, Multiple polyamide strip collector

6, Control cabinet




Wedo Produce steps:
Wedo have a fully step for the Polyamide Insulator Extruder Machine, PA 66 GF 25 Insulator Strip Extrusion Machine, Polyamide 66 Glass Fiber 25 Thermal Break Strip Production Machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in Polyamide Insulator Extruder Machine, PA 66 GF 25 Insulator Strip Extrusion Machine, Polyamide 66 Glass Fiber 25 Thermal Break Strip Production Machine




Any further about the Polyamide Insulator Extruder Machine, PA 66 GF 25 Insulator Strip Extrusion Machine, Polyamide 66 Glass Fiber 25 Thermal Break Strip Production Machine, polyamide thermal break strip machine, please contact us timely we will give your professional fully support.
