Waste HDPE LDPE LLDPE PP PE Film PP Woven Bag Pet Bottle Plastic Recycling Washing Machine
Zhangjiagang Jorbin Machinery Co., Ltd.- Material Processed：Film
- Plastic Type：PP PE Pet PVC Film
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：CE, SGS
Base Info
- Model NO.：JB300
- Capacity：300kg,H
- Material：Ss204,SS304, Ss315
- Application：Plastic Film
- Humidity：Less Than 5%
- Bulk Density：0.3G,Cm3
- Dimension：50(L)×8(W)×5(H)mm
- Consumption：6t Water
- Pressure：0.6MPa
- Manpower：2-3 Person
- Delivery Time：45 Working Days
- Washing Material：PP PE Film Bottles, Pet Bottles Flakes
- Water Need：10t
- Power：200kw
- Guarantee：1 Year
- Customized：Customized
- Transport Package：Film Packing and Wood Base or Wood Case
- Specification：final scrap size50-80mm
- Trademark：JORBIN
- Origin：Zhangjiagang City
- HS Code：8477800000
- Production Capacity：10sets,Year
Description

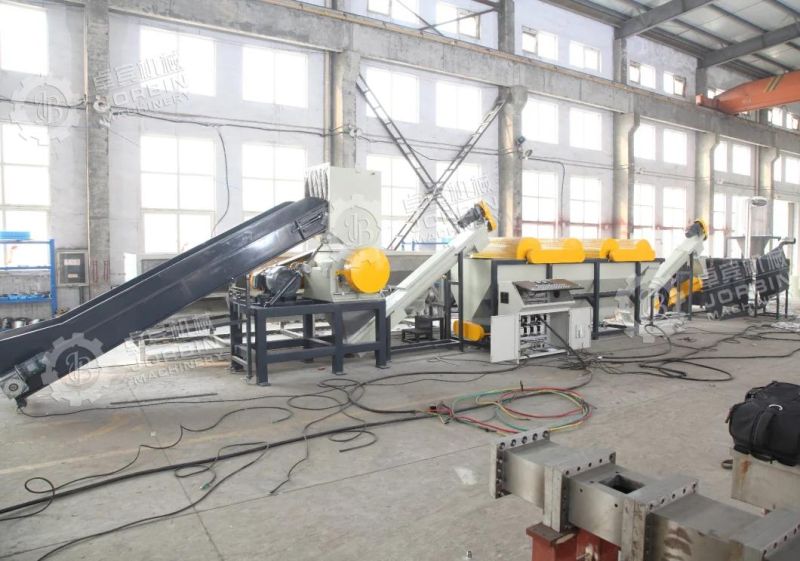

Total machine line Machine line
More photoes in the factory

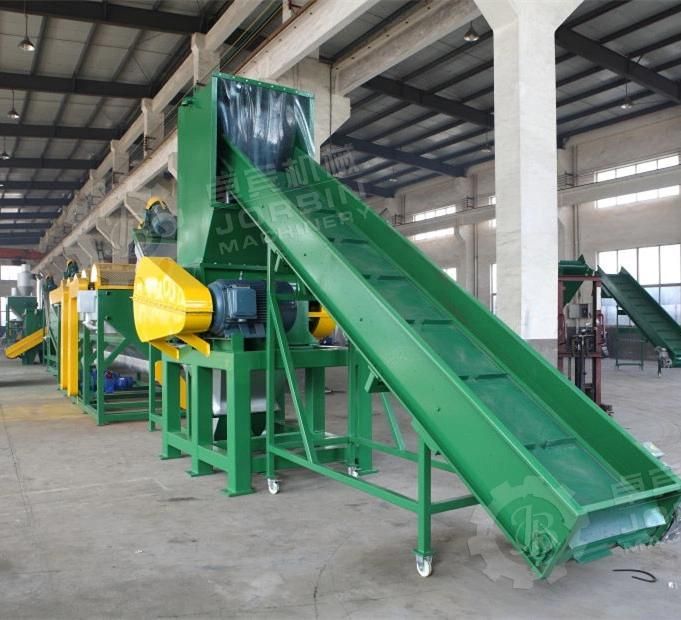

Belt conveyer send to crusher to crush the material into small pieces. belt conveyer:690*4500mm, 2.2KW,rv90,with inverter, after crush,the material will send into the floating machine by rotary charger

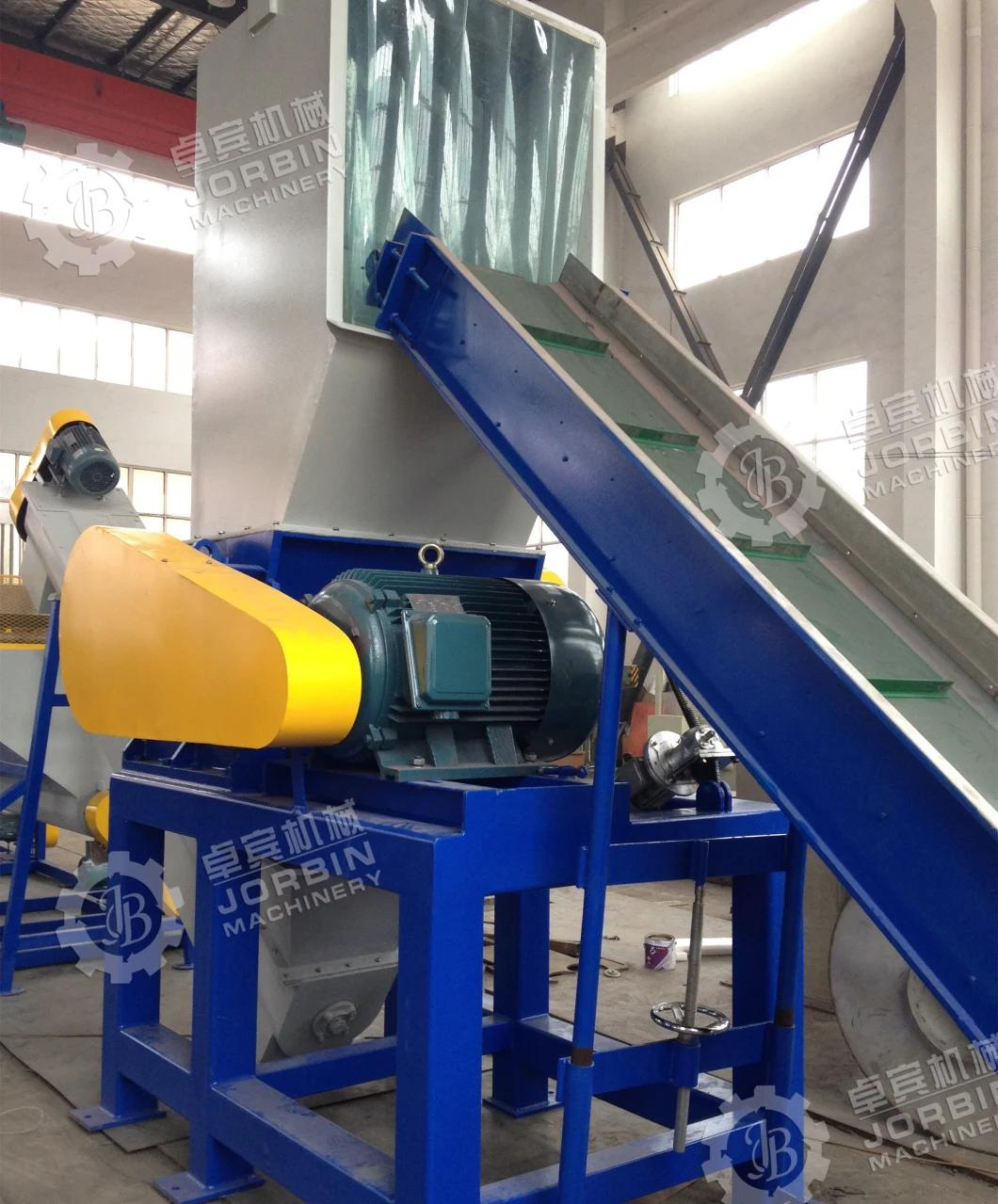

Crusher
Machine line
Dewater and dry system

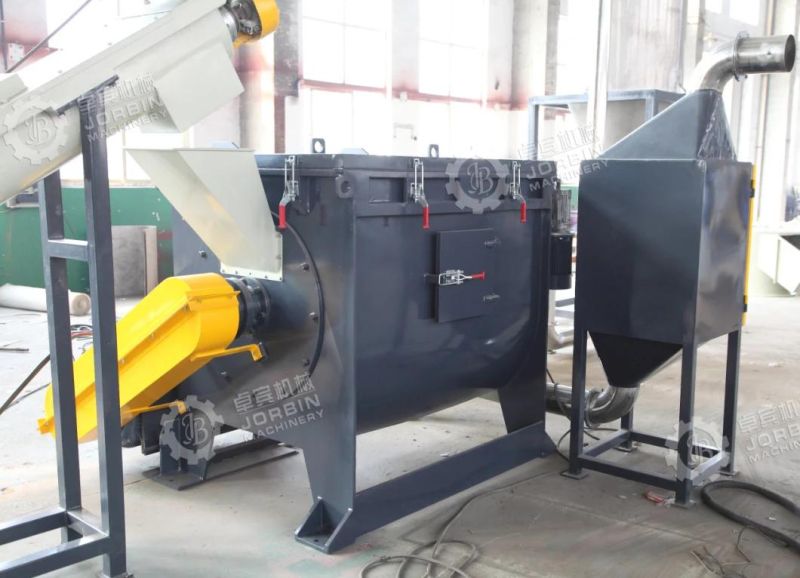

Dewater machine

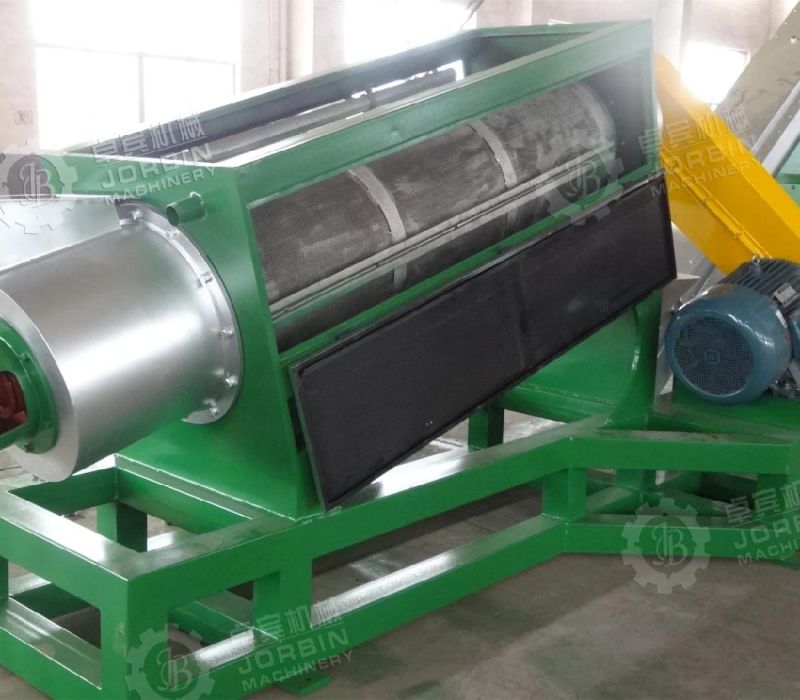

Friction machine
Water tank
Dirty fillm to be washed
Final clean film pieces
Machine all parts:
| No | Name | Qty |
| 1 | Belt conveyer | 1 |
| 2 | SWP-800Crusehr | 1 |
| 3 | Rotary charger | 1 |
| 4 | Floating tank | 1 |
| 5 | Rotary chareger | 1 |
| 6 | Dewater | 1 |
| 7 | Pipe dry system | 1 |
| 8 | Silo | 1 |
| 9 | Electric cabinet | 1 |
1. We supply below necessary documents with the machine:
- Machine layout
- Electricity diagram
- Machine certificate
- General manual book/maintenance book
2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468
