• Model NO.：LSJ-105,35
• Computerized：Computerized
• Certification：CE, ISO9001:2008, GOST
• Customized：Customized
• Condition：New
• Board Width：1050mm,60mm
• Board Thickness：6-30mm
• Board Density：1.2g,cm3
• Board Application：Roofing Panel, Skylight Board
• Main Extruder Model：Sj-105,35 Single Screw Extruder
• Co-Extruder Model：Sj-35,25 Single Screw Extruder
• Installed Power：220W
• Extrusion Capacity：200kg,H
• Machine Dimension：30m*10m*5m
• Transport Package：Wooden Plate with Vacuum Film
• Specification：LSJ0-105,35
• Trademark：Leader Machinery
• Origin：Qingdao of China
• HS Code：8477209000
• Production Capacity：20sets,Year

Basic Info.

Model NO. LSJ-105/35 Computerized Computerized Certification CE, ISO9001:2008, GOST Customized Customized Condition New Board Width 1050mm,60mm Board Thickness 6-30mm Board Density 1.2g/cm3 Board Application Roofing Panel, Skylight Board Main Extruder Model Sj-105/35 Single Screw Extruder Co-Extruder Model Sj-35/25 Single Screw Extruder Installed Power 220W Extrusion Capacity 200kg/H Machine Dimension 30m*10m*5m Transport Package Wooden Plate with Vacuum Film Specification LSJ0-105/35 Trademark Leader Machinery Origin Qingdao of China HS Code 8477209000 Production Capacity 20sets/Year

Product Description

PRODUCT INTRODUCTION:
PC hollow structure board extrusion machine, newly designed and developed by our
company is specially used to produce PC hollow structure boards, also called PC-U shaped inline lock-gusset board, which is connected by the polycarbonate or aluminum fittings with its own fastening system
but to drilling, which can prevent dust and drain off water effectively. U-shaped inline lock-gusset sheet is
characterized by low cost and quickly installation, widely used in the roof and the cladding with graphic or
bending design.

BOARD SPECIFICATIONS:
Board Width: 1040 (1050)mm, 600mm
Board Thickness: 6-10mm, 8-12mm, 12-20mm, 22-30mm
Board Structure: 2-wall R structure, 4-wall R structure, 5-wall X-structure, 7-wall R structure
Board Weight: 1.8-2.2kg/m2,  2.0-2.4 kg/m2,  2.4-3.6kg/m2,  3.8-4.5kg/m2

 MAIN TECHNICAL DATA FOR MACHINES

Main extruder screw diameter	105mm
L/D	35:1
Main motor power	110kw
Co-extruder screw diameter	35mm
L/D	25:1
Co-extruder motor power	7.5kw
Installed power	220kw
Extrusion capacity	200kg/h
Machine dimension	30m*10m*5m
Board width	1050mm, 600mm
Board thickness	6-30mm
Board density	1.2g/cm3


BOARD APPLICATIONS:
 Agriculture field: Greenhouse, Garden centers, Agricultural dinning halls, fish ponds etc.
 Construction field: skylights and rooflights, public facilities, conservatories, residential, walkways and bridges,
canopies and bus stops, walls etc.

 BOARD FEATURES:
1) Excellent load capacity
 2) Free expansion
 3) Easy and fast to install
 4) 100% leaking-proof
 5) Lower U value
 6) Suitable for bending design
 7) 2 sides UV protected
 8) Solar control ability

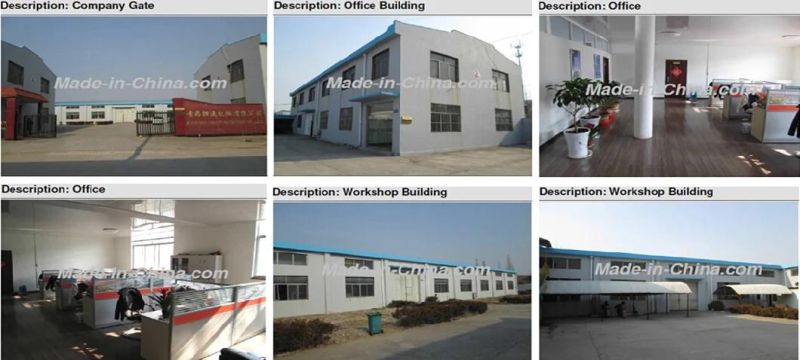

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 6 COMPANY CERTIFICATIONS:

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:

PART 9 OUR COOPERATED SUPPLIERS LIST



OTHER KINDS OF PLASTIC SHEET/PANEL EXTRUSION LINES:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
