• Model NO.：LMSB-150,36
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Dimension(L*W*H)：40m*10m*3m
• Model Number：Lmsb120,33 or Lmsb150,33
• Application：HDPE Geomembrane, HDPE Impermeable Membrane
• Sheet Width：1000-8000mm
• Sheet Thickness：0.4-3mm
• Transport Package：Wooden Cases and Wooden Pallet
• Specification：LMSB-150,33 with CE ISO SGS GOST certification
• Trademark：Qingdao Leader Machinery
• Origin：Qingdao, Shandong, China
• HS Code：8477209000
• Production Capacity：50 Lines Per Year

1. single screw extruder
This extruder can be vacuum-exhausted type according to the different materials.
The screw and barrel are specially designed according to different materials.
Main electrical parts adopts ABB,Omron,RKC, Siemens, Eurotherm, high precision.
Extruder can be Siemens PLC touch screen controlled.
 2. T-tye die head and hydraulic exchanging units
 Brand: JC-times brand

Material: 1.2311 germany steel, high quality die steel

hydraulic exchanging unit is single plate, double position, non-stop, no leakage, stable performance.3. Three roller calendar
This calandering system can be vertical, oblique, horizontal according to the mateial attributes.
With rollers thermocontoling machine installed.

The space between three rollers can be adjsuted manually and automatically.4. Cooling rollers with edge trimming units
cooling rollers can be 4m, 6m, 8m,10m according to products specification and customers' need.

edge cutting unit and slitting device can be installed.5. Haul off machine6. Twin position coiler: it is suitable for the thin sheet, like 0.2-2mm
 7. Knife cutting machine-guillotine: suitable for under 10mm thickness sheet. It can be controlled by motor or hydraulic cutting

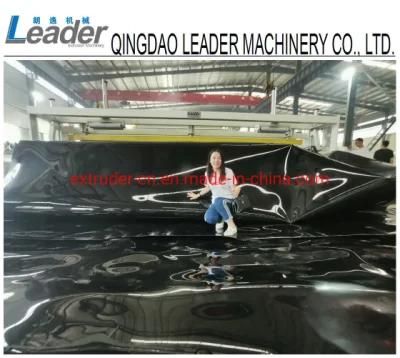

Introduction of HDPE Geomembrane
Geomembrane with impermeable plastic film as a substrate, and non-woven geotextile composite made of impermeable material, its performance depends on impervious impermeable plastic film performance. At present, the application of impermeable plastic film at home and abroad, mainly polyvinyl chloride (PVC) and polyethylene (PE), EVA (ethylene / vinyl acetate copolymer), also designed to use the tunnel applications ECB (ethylene-vinyl-modified bitumen blend geomembrane), which is a flexible material polymer chemistry, the proportion of small, strong extension, the ability to adapt to high deformation, corrosion resistance, low temperature, frost performance.

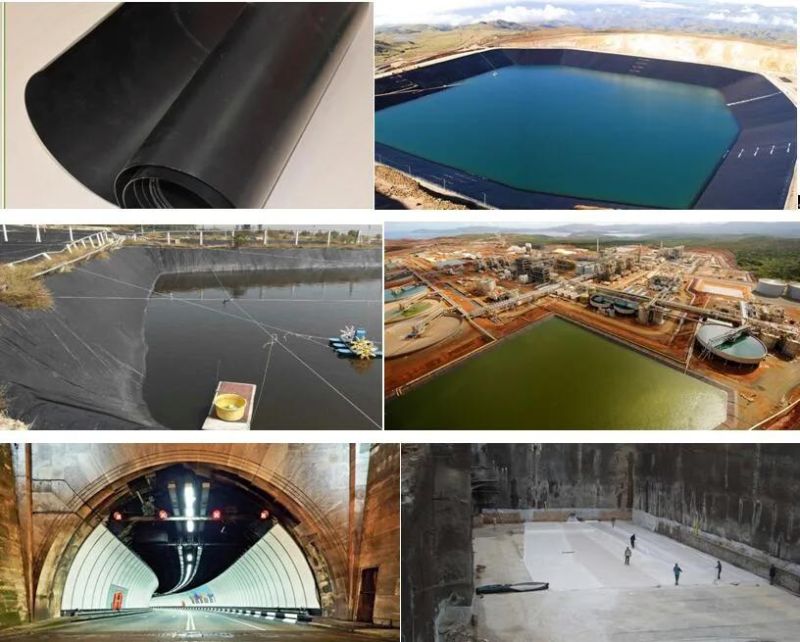

Main applications
1, HDPE geomembrane for environmental protection, sanitation: such as landfills, sewage treatment plants, power plants regulation pool, industrial, hospital and solid waste;
2, LDPE impervious membrane suitable for water projects: such as rivers, lakes and reservoirs dam seepage, sealing, reinforcement, drainage of seepage, vertical heart wall, slope protection, etc;
3, HDPE impermeable membrane in municipal works: subway, underground engineering building, green roofs, roof garden, sewage pipe seepage;
4, polyethylene impermeable membrane suitable garden: artificial lakes, rivers, reservoirs, golf course pond bottom, slope, green lawn waterproof, etc;
5, high-density polyethylene geomembrane for petrochemicals: chemical plants, refineries, tank seepage, chemical reaction tank, sedimentation tank lining, secondary lining, etc;
6, polyethylene geomembrane for mining: washing pools, heap leaching pool, the ash field, dissolving tanks, sedimentation tanks, yard, tailings seepage and other backing;
7, low density polyethylene film suitable transportation facilities: road base reinforcement, culverts impermeable;
8, LDPE impervious membrane suitable for agriculture: reservoirs, water tanks, water storage pond, irrigation systems seepage;
9, HDPE film suitable aquaculture: intensive, factory farming pond, ponds, lined ponds, sea cucumber circle slope, etc;
10, high-density polyethylene impermeable membrane suitable Salt: salt crystallization pool, brine pool thatch cover, salt film, plastic thatch film Salt.


PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:



PART 6 OUR RELIABLE SUPPLIERS:


PART 7 COMPANY CERTIFICATIONS:


PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:



PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

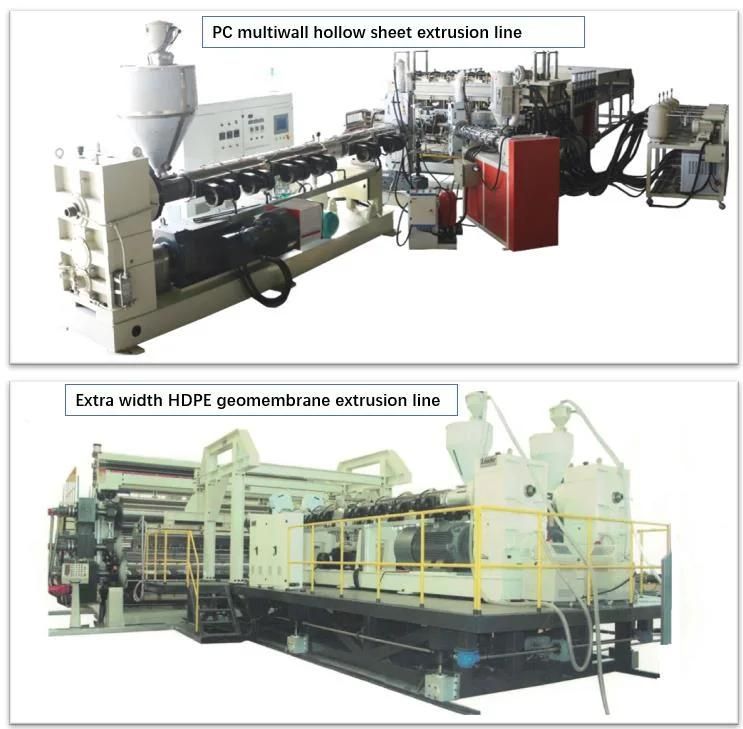

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
