Tape Winder for Making Yarn
Zhejiang Sanlong Universal Machinery Co., Ltd.- Transport Package:in Nude
- Trademark:SANLONG
- Origin:Wenzhou
Base Info
- HS Code:84778000
- Model NO.:SJ-ST Series
- Production Capacity:Winding Spindles Number 112--540
Description
Basic Info.
Model NO. SJ-ST Series HS Code 84778000 Production Capacity Winding Spindles Number 112--540Product Description

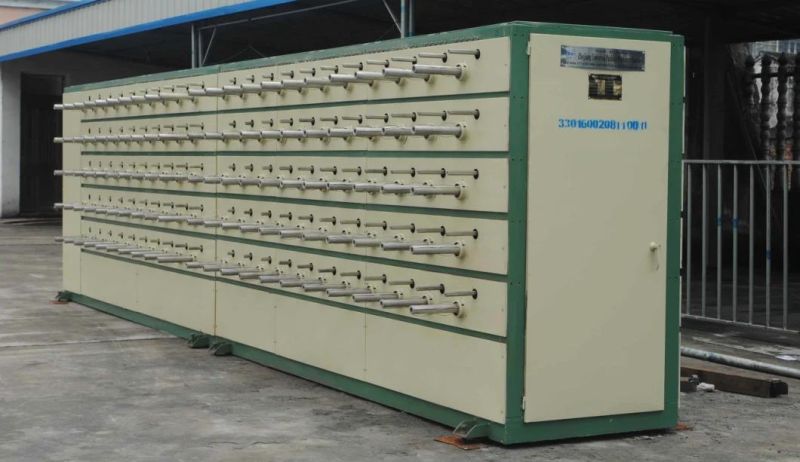

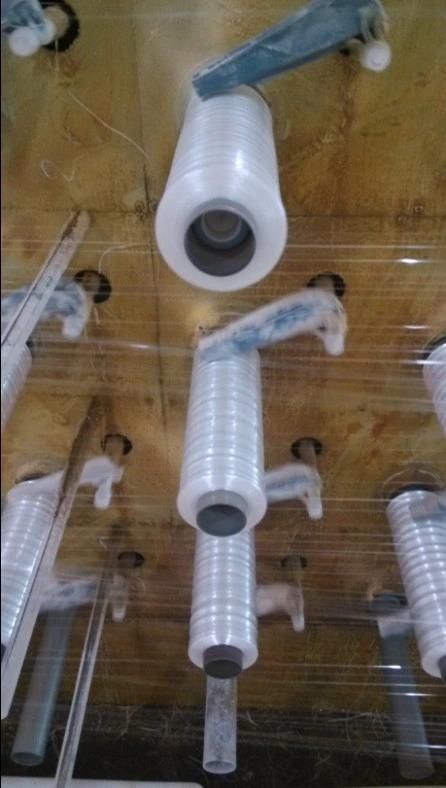

This machine is newly researched and designed by our factory based on the model of combined cam, it winds up the plastic tape by the back and forth movement of the swinging stem driven by the cam.It takes less effort and it runs more stable. With less friction factor and longer durability, the prime motor is 60% less in requirement of power consumption. It adapts to bobbins of Dia. 38*230mm, and it is the ideal mate of SJ-L series plastic tape extruder.
Item Type | Winder Layers | Spindle Number | Bobbin Winding Width (mm) | Winding-Tape Diameter (mm) | Line Speed (r/min) | Prime Motor Power (kw) | Gross Motor Power (kw) | Installation Dimension (L × W × H) (mm) | Weight (kg) |
SJ-ST220/5 | 5 | 220 | 200 | ≤ 100 | 50-160 | 2.2 | 15.5 | 6200×1450×1560 | 3500 |
SJ-ST260/5 | 5 | 260 | 200 | ≤ 100 | 50-160 | 2.2 | 18.5 | 7200×1450×1560 | 4200 |
SJ-ST300/5 | 5 | 300 | 200 | ≤ 100 | 50-160 | 2.2 | 20.2 | 8200×1450×1560 | 4800 |
SJ-ST380/5 | 5 | 380 | 200 | ≤ 100 | 50-160 | 3 | 25.8 | 10300×1450×1560 | 5800 |
SJ-ST420/5 | 5 | 420 | 200 | ≤ 100 | 50-160 | 3 | 28.2 | 11200×1450×1560 | 6300 |
SJ-ST480/5 | 5 | 480 | 200 | ≤ 100 | 50-160 | 3 | 31.8 | 13000×1450×1560 | 7100 |
SJ-ST520/5 | 5 | 520 | 200 | ≤ 100 | 50-160 | 4 | 35.2 | 13400×1450×1560 | 7600 |
SJ-ST580/5 | 5 | 580 | 200 | ≤ 100 | 50-160 | 4 | 38.8 | 15300×1450×1560 | 8400 |
SJ-ST620/5 | 5 | 620 | 200 | ≤ 100 | 50-160 | 4 | 41.2 | 16200×1450×1560 | 9000 |
