• Model NO.：PET R1T
• Voltage: 220V-440V,3 Phase：Other:with The Special One We Also Can Do
• Transport Package：Standard
• Origin：Made in China

Basic Info.

Model NO. PET R1T Voltage: 220V-440V,3 Phase Other:with The Special One We Also Can Do Transport Package Standard Origin Made in China

Product Description

1000kg/h PET Bottle Crushing & Washing Line
     Depending on the state of the materials, we are able to recommend a machine with output ranging from 200-2500kg/h for your usage
The Detailed parameter :

1. Conveyor	Effective Conveying Length:4500mm Motor Power: 1.5kw Conveying Width: 600mm Function: Send the raw material to the label removing machine

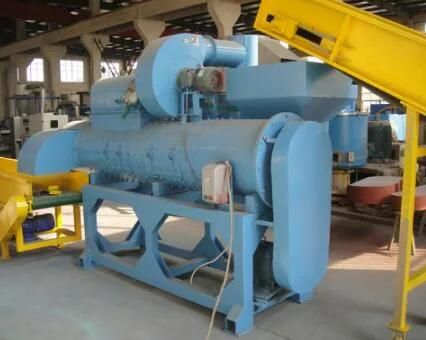

Label Removing Machine	Diameter of rotor: Φ500mm Effective length of machine: 3000mm Motor power:15kw Feeding port size(W*L):800*800mm Blower power:4kw Label off rate:≥98%

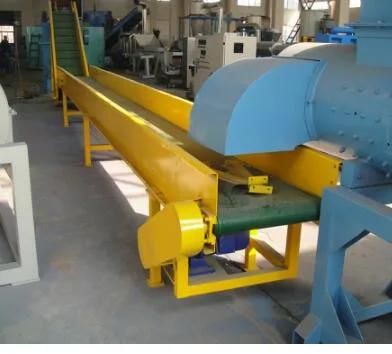

Sorting conveyor belt	Effective transmission length:6000mm Conveyor belt width:800mm Motor power:2.2kw P.S:Sorting variegated bottle, get rid off PVC and not-PET bottles.

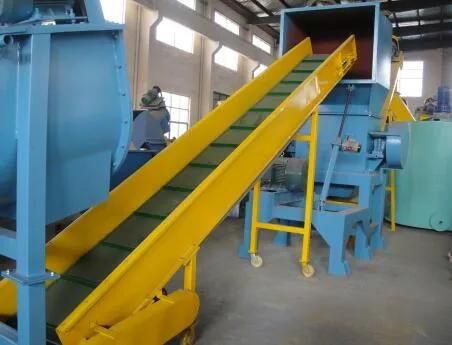

4. Feeding conveyor belt	Motor power:3kw Width oL the conveyer belt :800mm Conveyor belt effective length:7000mm delivery speed :10-20m/min P.S: Through the strap type conveyor to send the material into the crusher.
5 PC1200 Crusher (with water)	Motor power:55kw Dimensions of working room:1200×560mm Rotor speed:500rpm Movable blade quantity:12pieces Fixed blade quantity:6 pieces Blade material:9CrSi Sieve hole diameter:20mm Crushing ability:1000kg/h Have urgent overload prevent switch. P.S: Crushing the materials into small pieces through cutting of movable blades and fixed blades. Under the action of water spray , crushing produces friction to make the material finish washing preliminarily.
6. Screw feeder	Motor power:3kw Screw diameter:Φ350mm Screw rotate speed:75rpm Sieve hole diameter:Φ3mm P.S: The dirth water separates in the promotion and discharges into the sewage pool from the down mouth.
7. Hot Washer ×2sets	Stirring Motor :7.5kw Barrel diameter :Φ2000mm Cylinder height:2000mm Heating power: 90kw There is thermal insulation material around the outside wall, inside install  coil steam heating. P.S: Through adding the caustic soda(above 85ºC) into the pot body to soak and stir to make the dirt and glue of the surface of the bottle flakes separate and dissolve.

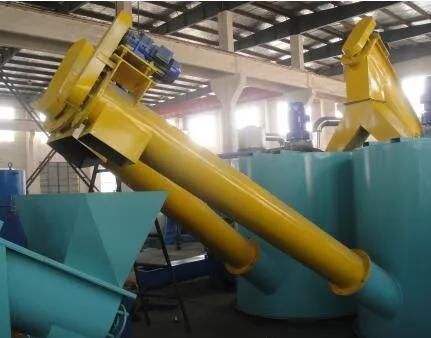

8. Screw feeder ×2sets	Motor power:3kw Screw diameter:Φ300mm Screw speed:75rpm P.S: Put the materials into the friction cleaner through the spiral promotion.
9. Friction cleaner	Motor: 22kw Screw: ф500mm Screw Rotating Speed: 900rpm Effective Length: 3000mm The parts contacted the raw material are made of stainless steel. Function: This machine has the self dirt-draining function; Removal oil and paper label on the film; The material was original clean by this facility. Working Principle: With the high speed rotating screw, the sand and soil dirt could be separated.
Rinse tank	Washing Roller Motor : 3kw*2 Dirt Collecting Motor: 3kw Dirt Draining Motor: 3kw Length: 6000 mm Width: 1500 mm High: 2200 mm
Screw Feeder	Motor power:3kw Screw diameter:Φ350mm Screw rotate speed:75rpm Sieve hole diameter:Φ3mm
12. Dewatering Machine	Motor Power: 18.5kw Rotor diameter:Φ650mm Rotor speed: 2000rpm Function:Make the materials dry by high-speed rotating, and send the dry materials to the drier hopper.
13. Mixing& Dryer	Mixing motor power: 3kw Blower power: 1.5kw Heating power: 36kw Capacity:  1000kg Barrel body diameter: Φ1300mm Dimensions: 1500 * 1500 * 3500mm
14. Electric control box	Electric cabinet one set, electrical equipment adopts Siemens and Domestic famous company; Japan RKC Intelligent temperature control instrument digital display; NS transducer; have Emergency brake switch, each part of the equipment operation state shows in the  instrument

Welcome to visit our website ,and tell us if you want get the one or the whole line .Thanks
