• Model NO.：TSE-65
• Computerized：Computerized
• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Model No：Tse 65
• Capacity：200-300kg,H
• Screw Design：Double
• Voltage：220V,380V
• Color：Requiremet
• Export Markets：Global
• Material：PP PE PVC Pet PC
• Keywords：Twin Screw Extruder
• Motor：Siemens
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：kairong
• Origin：Nanjing, Jiangsu
• HS Code：8477209000
• Production Capacity：300 Set Per Year

Basic Info.

Model NO. TSE-65 Computerized Computerized Customized Customized Certification CE, ISO9001:2008 Condition New Model No Tse 65 Capacity 200-300kg/H Screw Design Double Voltage 220V/380V Color Requiremet Export Markets Global Material PP PE PVC Pet PC Keywords Twin Screw Extruder Motor Siemens Transport Package Wooden Case Specification CE, ISO9001 Trademark kairong Origin Nanjing, Jiangsu HS Code 8477209000 Production Capacity 300 Set Per Year

Product Description

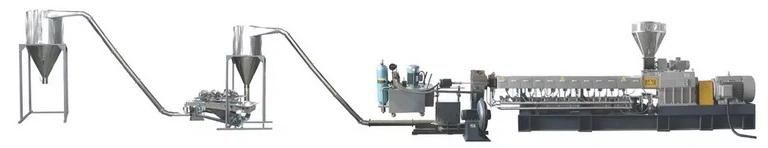

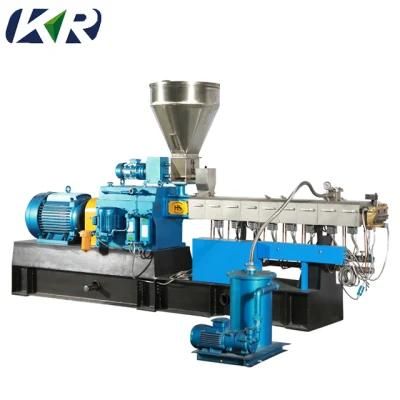

CaCO3 Filler Masterbatch Twin Screw Pelletizing Machine
Description:
The machines are designed by suing the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode
of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted
according to different materials properties and requirements in consideration of the versatility in each general
applications.
Co-rotating parallel twin-screw extruder is widely used in general plastic, engineering plastic and thermal plastic
rubber, etc polymer materials such as filling, reinforcing, toughening, etc blending modification, as well as the
special fiber and special adhesive, etc processing fields

Parameter Table:

Mode	Diameter  (mm)	L/D	Speed (r/min)	Power(kw)	Capacity (kg/h)
TSE-40B	41	32-52	600	45-55	100-160
TSE-65B	62.4	32-64	600	90	250-350
TSE-75B	71	32-64	600	132	350-550
TSE-75D	71	32-64	600-800	200-250	600-800
TSE-95B	93	32-64	600	315	800-1200

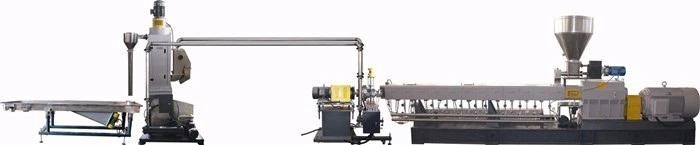

1.Strand Extruders for Filling/Compounding and Reinforcing
Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation-crosslinkable
compounds, optical fibre protection compounds, heat-shrinkable polymer compounds.
Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds, etc.

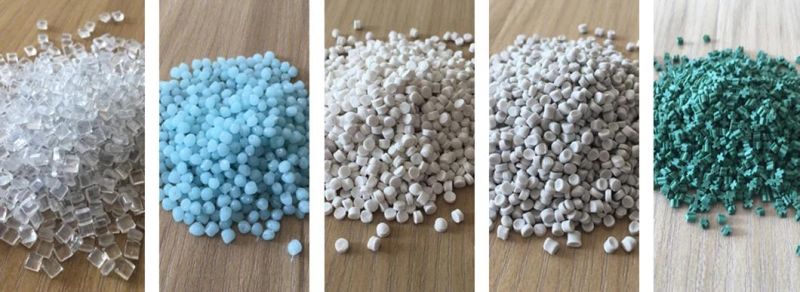

High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other
processing aids.
Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.
The twin screw strand extruder also fit for PET bottles/ flakes recycling.

2. Water Ring Extruders for Filiing/Compounding/Modificating
PE, EVA etc. Filled with CACO3,talc,TIO2,carbon black etc.
Cable sheath, cable insulation compoundes of LDPE,HDPE,LLDPE,or MDPE;
Radiation-crosslinkable, heat-shrinkable cable compounds;
PPR pipe compounds, PE compounds for crosslinked pipes;
TPR, TPU thermoplastic elastomers; EVA and hot-melt adhesives;
Color concentrations of PE,ABS, PS,EVA,etc;
Flame retardant master batches of ABS,PS,EVA,etc;
Master batches with PE,PP,PS,etc carriers for degradation applications.

3.Air-cooling Extruders
Enforcing modification:PE,EVA etc.+CaCo3,Talc, TiO2,Carbon black.
Degradable master batch: PE,PS etc.+starch,additive etc.
Anti-flame master batch: PE, EVA etc.+Sb2O3, Mg(OH)2,AI2(OH)3 etc.

4. Underwater Extruders
1.The main material is PE+CaCO3
2.The metering feeders are equipped with single screw, twin screw, hollow screw, forced feeding ,side-feeding, etc
3.Different requirementsof feeding, such as power, pellet, lump and luqid material.

5.Single Screw / Two Stage Single Screw Recycling Extruder Machine
The single screw extruder fit for clean PP/PE film or PP/PE/ABS flakes recycling, not for compounding masterbatch
make.the final end product could be used to make plastic carrying bags or new film.
