• Model NO.：LSJ-120,30
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Name：PP Stationery Foam Board Extrusion Machine
• Sheet Size：1260mm*2-6mm
• Sheet Application：Stationery, Packing, Containers, Handbags etc.
• Processing Technology：T-Die Head and Three Roller Calendars
• Extruder Model：Sj-120,30 Single Screw Extruder
• Max Capacity：250kg,H
• Guaranteed Time：12 Months
• Machine Dimension：24m*3.5m*2.8m
• Transportation：1 Set of 40gp+1 Set of 20gp Containers
• Transport Package：Wooden Pallets or Cases with Stretching Films
• Specification：LSJ-120,30
• Trademark：Leader Machinery
• Origin：China Qingdao
• HS Code：8477209000
• Production Capacity：20 Sets Per Year

Machine model
Main dataLSJ-65/30LSJ-90/30LSJ-120/30Extruder modelSJ-65/30SJ-90/30SJ-120/30T-die head with750mm950mm1350mmThree roller calendars360mm400mm450mmSheet width400mm-600mm600mm-800mm800-1200mmSheet thickness0.8-3mm0.8-3mm0.8-3mmSheet Density0.4-0.7g/cm30.4-0.7g/cm30.4-0.7g/cm3Main electrical partsSiemens PLC controlled, ABB inverter, Omron thermocontroller,  contactorInstalled power110kw150kw180kwDimension22m*2.5*2.7m25m*2.8m*2.8m28m*3m*3m
 PART 3 PRODUCTION FLOWS:
Vacuum feeding machine>single screw extruder>hydraulic exchanger>T-die head>three roller calendars>
thermoforming machine>cooling frame and edge cutting units>2 rubber rollers haul off machine>cutter-guillotine
or twin position winder>material conveying able>stacker

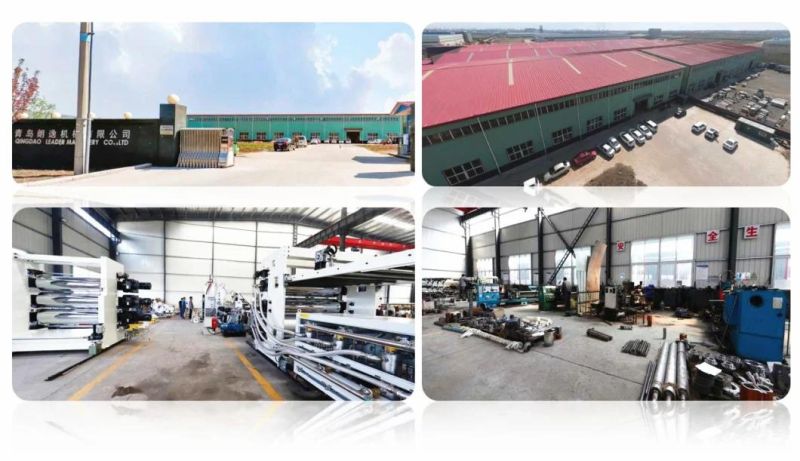

COMPANY INFORMATION AND MAIN PRODUCTS:



COMPANY CERTIFICATION:

COMPANY OVERSEA TRADE SHOWS:

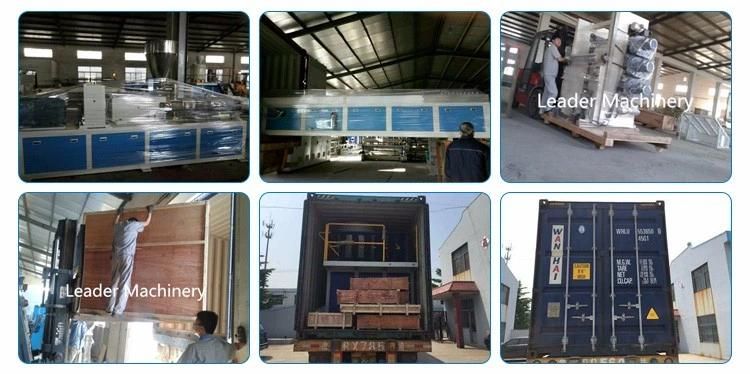

MACHINE PACKING AND DELIVERY:
