• Machine Weight：1.5t
• Extrusion Capacity：70kg,H
• Rotation Speed of Screw：10-110r,Min
• Single-Sided Thickness of Film：0.006-0.10mm
• L/D Ratio of Screw：1:28-30
• Transport Package：Package
• Specification：SGS
• Trademark：Chengheng
• Origin：China
• HS Code：8477300000
• Production Capacity：80sets,Month

Basic Info.

Machine Weight 1.5t Extrusion Capacity 70kg/H Rotation Speed of Screw 10-110r/Min Single-Sided Thickness of Film 0.006-0.10mm L/D Ratio of Screw 1:28-30 Transport Package Package Specification SGS Trademark Chengheng Origin China HS Code 8477300000 Production Capacity 80sets/Month

Product Description

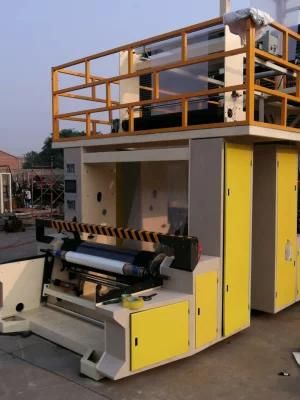

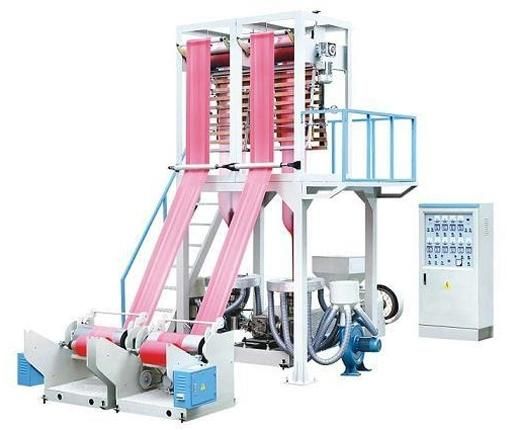

Name:CHSJ-2A LDPE, HDPE Double-Head Film Blowing Machine for Making Vest Bag



Purpose & Feature
This machine set is used to blow Low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to produce various vest bags and flat-rim bags widely used for packaging in the food industry, clothing industry, and textile industry, etc.
Both the cylinder and the screw of the extruder are made of superior alloy steel through nitration and precision finishing with the optimal hardness and corrosion resistance. Scientifically designed, this machine set has two heads for one extruder with many advantages as high production capacity, good economic returns, environmental protection and energy efficiency.

Model	CHSJ-2A55	CHSJ-2A60	CHSJ-2A65
Diameter of screw	55mm	60mm	65mm
L/D ratio of screw	1:28-30	1:28-30	1:28-30
Rotation speed of screw	10-110r/min	10-110r/min	10-110r/min
Extrusion capacity	46kg/h	55kg/h	70kg/h
Maximum folding diameter of film	550mmx2	650mmx2	750mmx2
Single-sided thickness of film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Main motor power	15KW	18.5KW	22KW
Total power	2226	30Kw	35Kw
Machine weight	2800kg	3200kg	3800kg
Overall dimension (L*W*H)	4800*2200 *3000mm	5000*2400 *3200mm	5200*2600 *3400mm

Who are we :
We are special produce full production of plastic bag, including film blowing machine, bag making machine,
printing machine ETC.

About us:
1) All Our Machines with CE certificate
2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
5) Guarantee for two year , Long Life Services



Packing and shipping

Machines will Packed with stretch Film
If need ,  wooden case as option
Delivery date: 30 work days after receipt of down payment.
Shipment from tian jin  port ,China By Sea


Warm Noted:


Are you a factory or Trading Company
   We are a factory with experienced exporting products. We also help clients
   To look for products which they can not sure of.

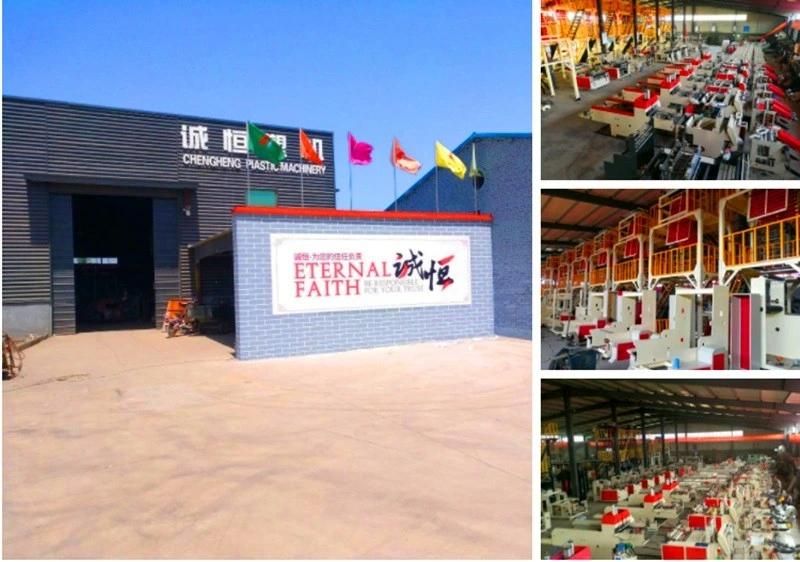

Where is your factory Located
  Our Factory Located in Ningjin  City ,Hebei Province ,China .
  It is about 2 hours by plane from Shanghai,  about 3 hours by air plane from
  guangzhou .
  We are pleasured to pick up you when you arrived .




How you work if I am not come to China
   Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .





IF Have more questions , Contact with me !!!
THE ENDING ...........THANKS FOR YOUR READING
