High Speed Automatic Multiple Layer 1500mm Extrusion Stretch Cling Film Making Machine for ...

Zhejiang Pinbo Plastic Machinery Co., Ltd.
  • After-sales Service：Life Time
  • Warranty：1 Year
  • Type：Plastic Extruder
  • Plastic Processed：LDPE ,LLDPE
  • Product Type：Stretch Film Machine
  • Feeding Mode：Multiple Feed

Base Info

  • Model NO.：PB-L65,90,65X1850
  • Assembly Structure：Separate Type Extruder
  • Screw：Multi-Screw
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Vlotage：Customized
  • Power (Kw)：180kw
  • Screw Diameter：90mmx1, 65mmx2
  • Screw L/D Ratio：30:1
  • Output (Kg/H)：180 - 280kgs
  • Weight：15t
  • Package：Plastic Film Wrapping
  • Inverter：Delta Taiwan
  • Transport Package：Standard Packing
  • Specification：L12500,W5500,H3800
  • Trademark：PYM
  • Origin：Zhejiang Province Wenzhou City
  • HS Code：84778000
  • Production Capacity：200sets,Year

Description

Model No.PYM-65/90/65*1850Screw Diameter65/90/65mmScrew L/D30:1Screw Speed50-150rpmLayer StructureABC/ACBCAFilm materialPEFilm Width1500mm/3*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power130KWCapacity180-300Kg/hTotal weight13.5TDimension13.5M*3.5M*3.5MProduct Advantages
  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability
  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
  • Optional full automatic thickness gauge

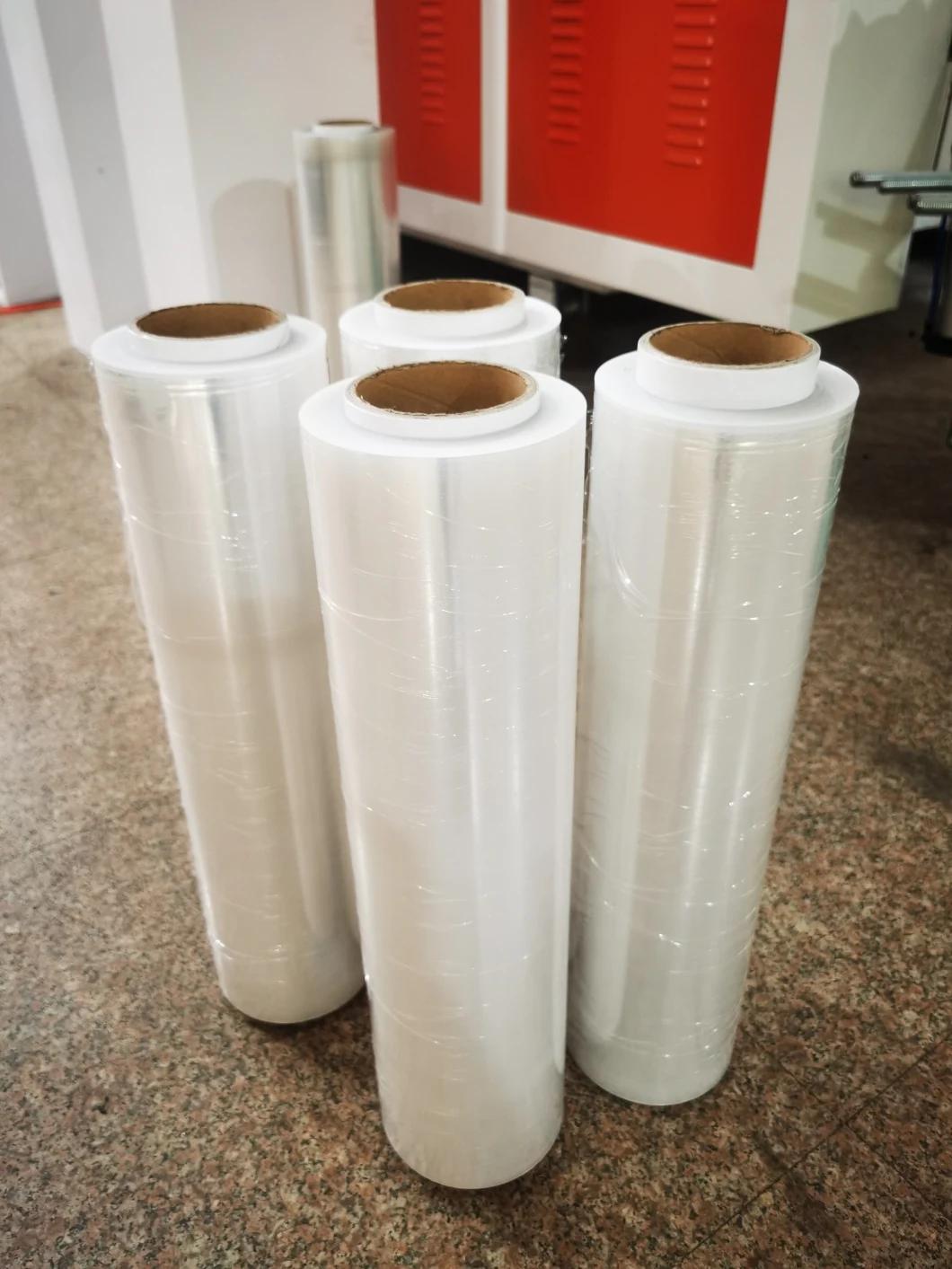

  • Excellent stretch film rolls quality for both hand use rolls and stretch use rolls
Machine details:

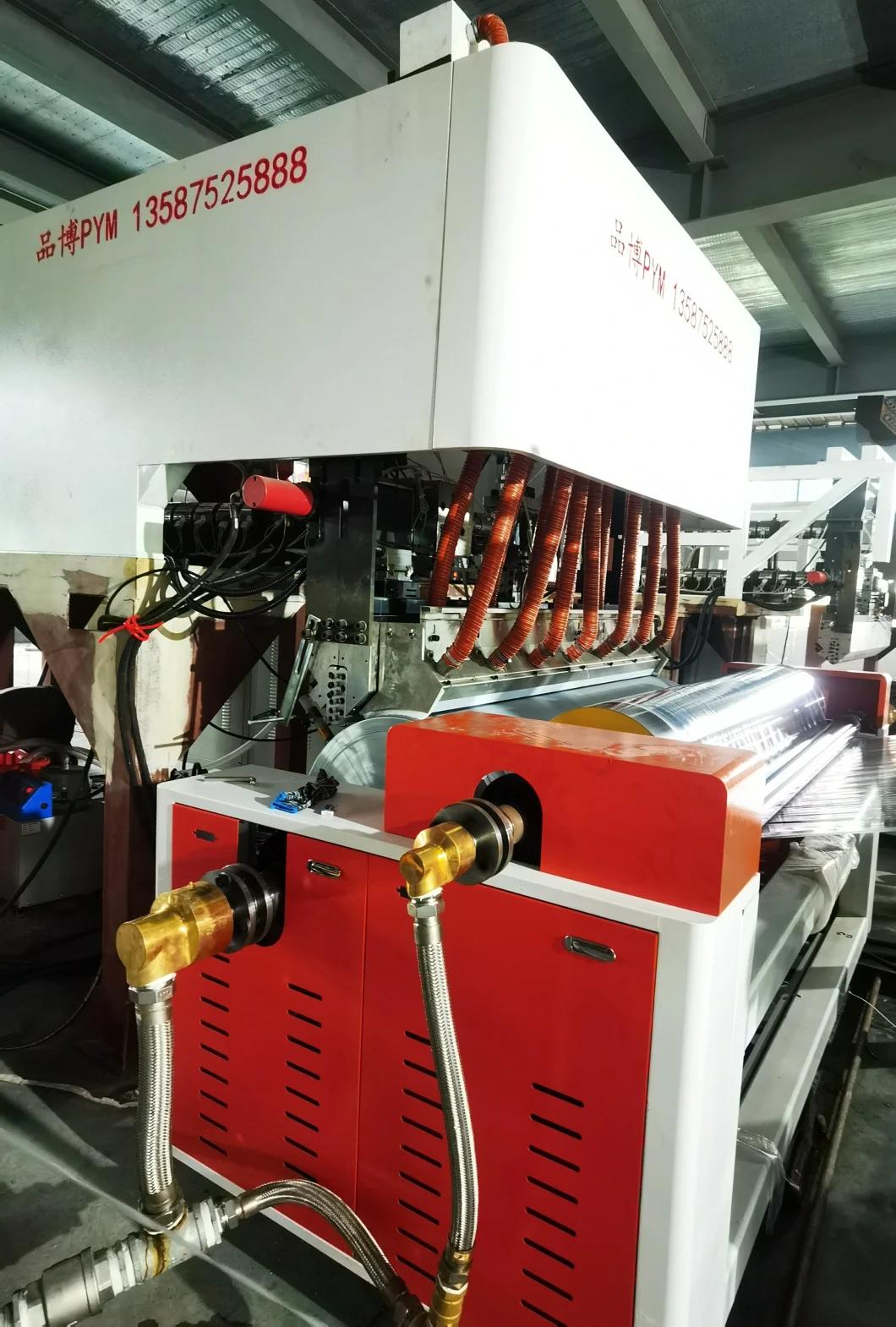

T-Die with vacuum system:
High Speed Automatic Multiple Layer 1500mm Extrusion Stretch Cling Film Making Machine for Plastic Film Extruder Line

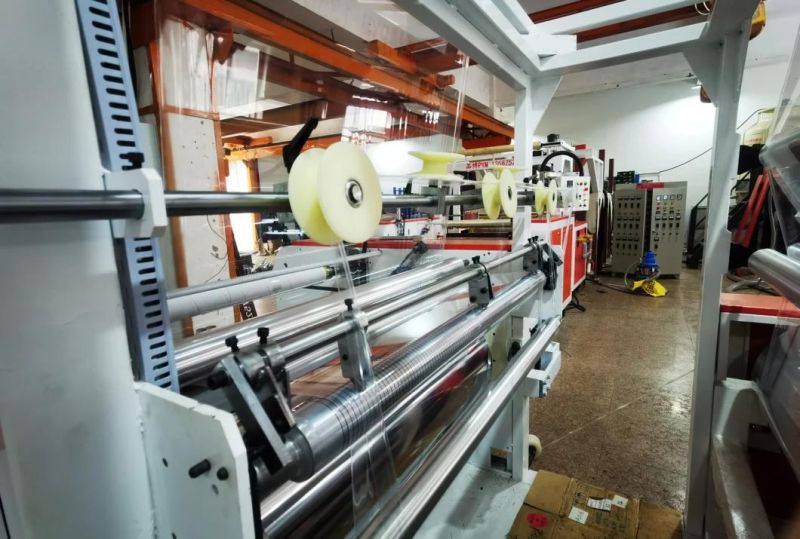

Edge film trimming guiding roller:
High Speed Automatic Multiple Layer 1500mm Extrusion Stretch Cling Film Making Machine for Plastic Film Extruder Line

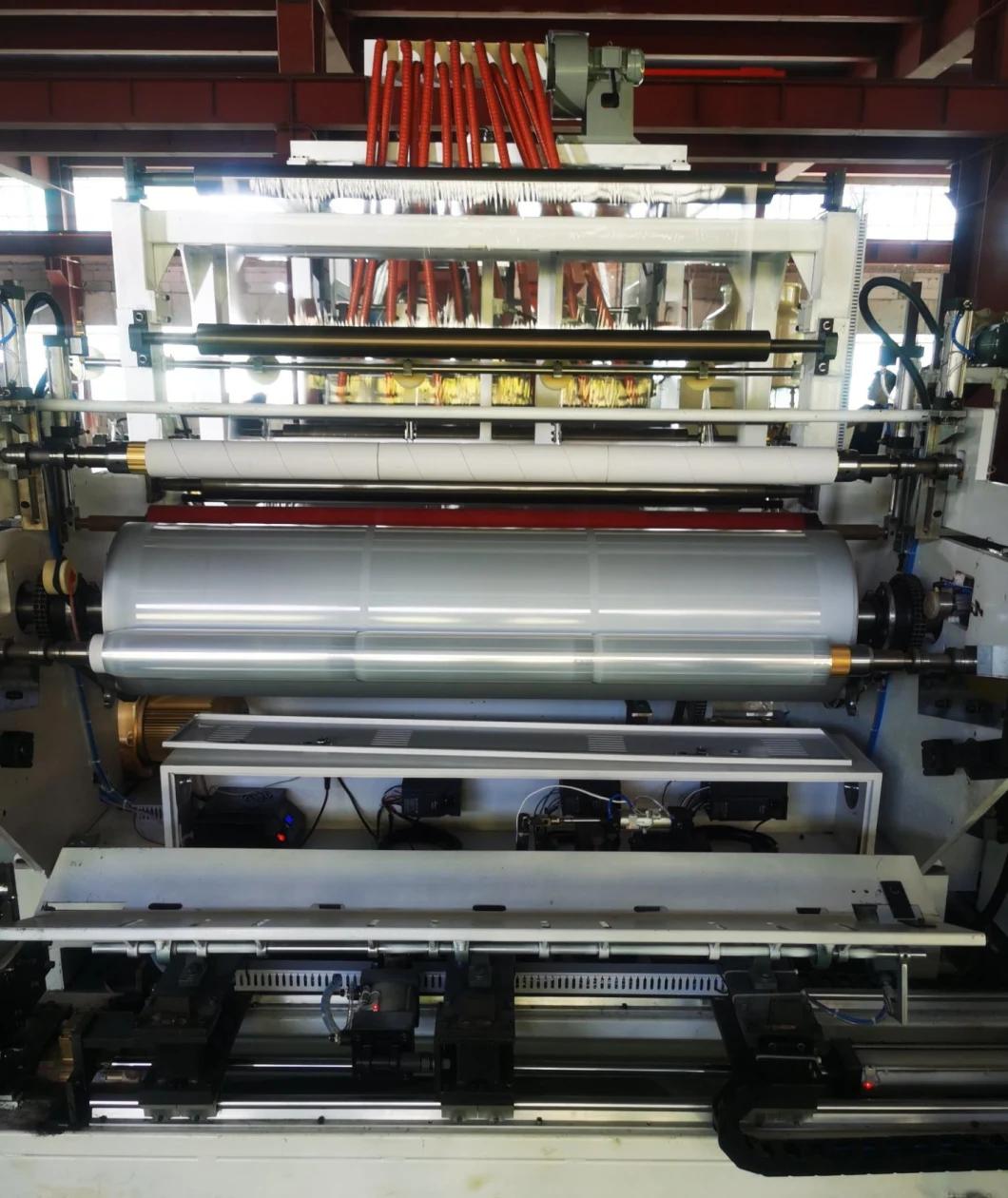

Automatic Rewinder to make max.width 1500mm or 3rolls x 500mm:
High Speed Automatic Multiple Layer 1500mm Extrusion Stretch Cling Film Making Machine for Plastic Film Extruder Line
High Speed Automatic Multiple Layer 1500mm Extrusion Stretch Cling Film Making Machine for Plastic Film Extruder Line
Option: (automatic roll discharge & auto paper core loading)
