• Model NO.：CHSJ-W
• Machine Weight：4T
• Film Thickness(mm)：0.007-0.05
• Maximum Rotation Speed of Screw：120,Min
• Traction Speed M：15-70,Min
• Winding Speed M：30-80,Min
• Transport Package：Package
• Specification：sgs
• Trademark：Chengheng
• Origin：China
• HS Code：8477300000
• Production Capacity：100sets,Month

Model()
 W-55-50/700   W-65-55/900Width of the film
()200-600mm   250-800mm Thickness of the film()0.006-0.15mmThe max output()125kg/h 150kg/h
According to different width,thickness of film, die size and raw material characteristics to change
(,,)Raw material()HDPE/LDPE/LDPEPower consumption() 28kw/h  35kw/h   Weight()   3800kg  4200kg Overall dimension(L*W*H)m
(**)6.5*2.7*5  6.5*3*5.8 Extruder unit()Diameter of screw
()Φ55/50  Φ65/55
38CrMoALA  wearproof Alloy steel,five years guarantee
(38CrMoALA,)L/D ratio of screw
()30:1Rotation speed of screw
()10-120r/mBarrel Fan
()Zone 3 barrels install over-temperature fan
(3)Gear box()   173#    200# Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation system
(,,)Main motor()11kw    15kw    30kw   37kw
100% Original three-phase variable frequency motor  Equipped with inverter control
(100%   )Die head unit()Die diameter
()50mm   60mm  80mm   250mm  360mm
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effect

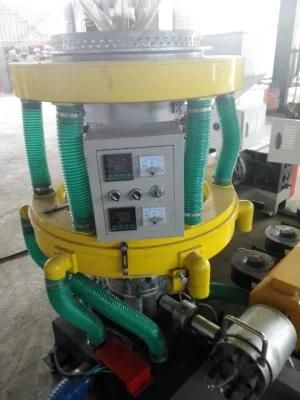

(40Cr,8,,)Cool unit()Air ring type
()LDPE double vents vacuum air ring(HDPE)
 HDPE Single outlet air ring(HDPE )Air ring material
()High quality Taiwan cast aluminum alloy air ring
()Bellow power
()1.5kw  4kw   2.2kw   7.5kw
Shanghai production of high-pressure mute fan
()Traction unit()Width of take up roller
()700mm  900mm   1200mm   1400mm  Traction roller material
() silicone roll()
NBR roller()Take up motor
()1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter control
(RV  ) Take up speed
()100m/min
 1.5kw10N.m
 700mm  900mm   1200mm   1400mm  Embossing roller
()hot embossing unit (   )
cold embossing unit ()Lambdoidal board
()Wooden flannel wrapped()Gusset equipment
()Modular rack type    ()
Independent Split  ()Bubble stabilizing ring
()Electric aluminum roller guide  ( )
Manual wood floor ()Guide roller()Aluminum guide roller (HV300-HV700) surface treatment
( (HV300-HV700))Winding unit()Winding type
()Surface friction rewinding, manually change the volume
(,)Drive type()Torque motor equipped RV reducer(RV)Film expanding roller()Smoothing roll()
 ,Electric control cabinet()low-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control table
(,,,)Computer control type()7-inch touch screen + process control system(7+)
Automatic air supply device ()
SERVICE:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.5 year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hoursOptional accessories

Optional accessories


   Auto Ioader
   Corona treater
   Air compressor
 Mechanics screen changer
     Doubie winding
360°   360°Die rotary device
 full-automatic winder and lap changing equipment
