PP Pet PS Lid Making Machine with Crossing Hole
Wenzhou Y. E Trade Co., Ltd.- Certification：CE
- Column number：Double Column
- Molding Method：Pressing
- Automatic Grade：Automatic
- Color of Forming Machine：Light Gray and Blue
- PLC for Thermoforming Machine：Mitsubishi, Japan
Base Info
- Model NO.：TF-5528
- Servo Motor：Yaskawa, Japan
- Transport Package：Thermforming Machine Wrap with Film
- Specification：thermforming machine was according to CE standard
- Trademark：Y. E
- Origin：Zhejiang Ruian
- HS Code：847740
- Production Capacity：20sets Thermoforming Machine Per Month
Description
Basic Info.
Model NO. TF-5528 Servo Motor Yaskawa, Japan Transport Package Thermforming Machine Wrap with Film Specification thermforming machine was according to CE standard Trademark Y. E Origin Zhejiang Ruian HS Code 847740 Production Capacity 20sets Thermoforming Machine Per MonthProduct Description
Application:
It is suitable to form various plastic cup lids, bowl and container with the materials of PP, PS, EPS, PVC, PET.

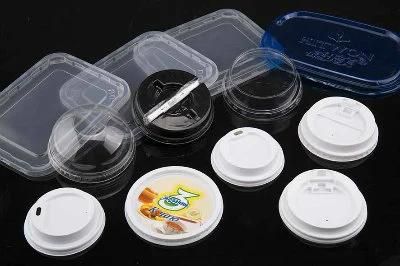

lids can be made on the machine, like coffee cup lid, drink cup lid, yogurt cup lid, food box lid,
Features:
1. To finish the forming, punching and cutting--stacking in one machine, it can save your time and energy.
2. Combination of mechanical, electrical and pneumatic components with PLC auto-control and inverter control create efficient and energy conservation.
3. Touch screen makes the simple, safe and automatic operation. PLC and touch screen adopt Mitsubishi.
4. Upper or lower mold forming method.
5. Feeding servo makes accurate and durable operation.
6. With automatic stacking for lid and container, max 50pcs for stacking on machine. The finished product can be packed directly, save time and labor.
7. High speed as 25circles/min for PP material for stable production. High output for production.
Specification:
| Model | TF5528 |
| Max. Forming Area | 550*280 mm |
| Depth of Draw under sheet | 60mm Max |
| Depth of Draw above sheet | 60mm Max |
| Suitable material | PET PP PS EPS PVC |
| Sheet Width | 350-460 mm |
| Material Thickness Range | 0.2-2 mm |
| Material Roll Diameter | 1100 mm |
| Maximum Rewinding diameter: | 700 mm |
| Cycles per Minute | 25 stable production |
| Power Supply | 3-N AC380V±15V |
| Air Pressure | 0.7 Mpa |
| Cooling | water cooling |
| Heating power | 50 kw |
| Dimension(L×W×H) | 3000*1850*2100 (mm) |
| Weight | 3500kg |
PP lid and container forming machine with stacking in our workshop:
Updated 4th generation Automatic PP lid making machine/ Thermoformadora para tapas:
Lid machine shipment:
