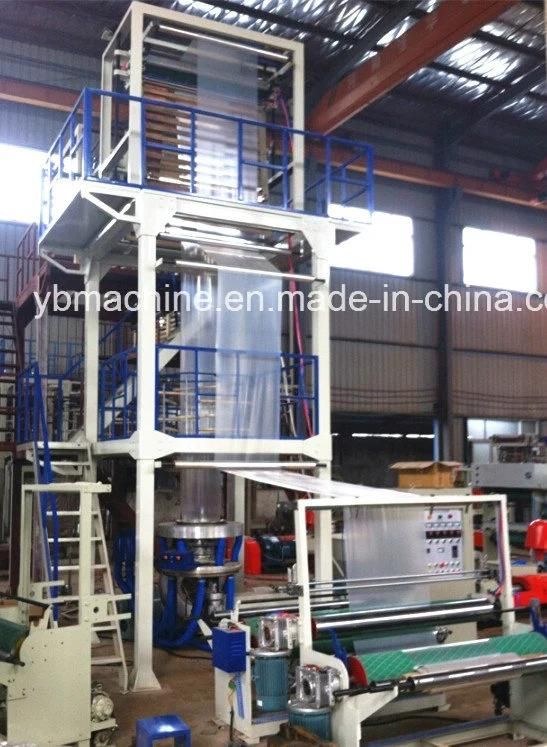

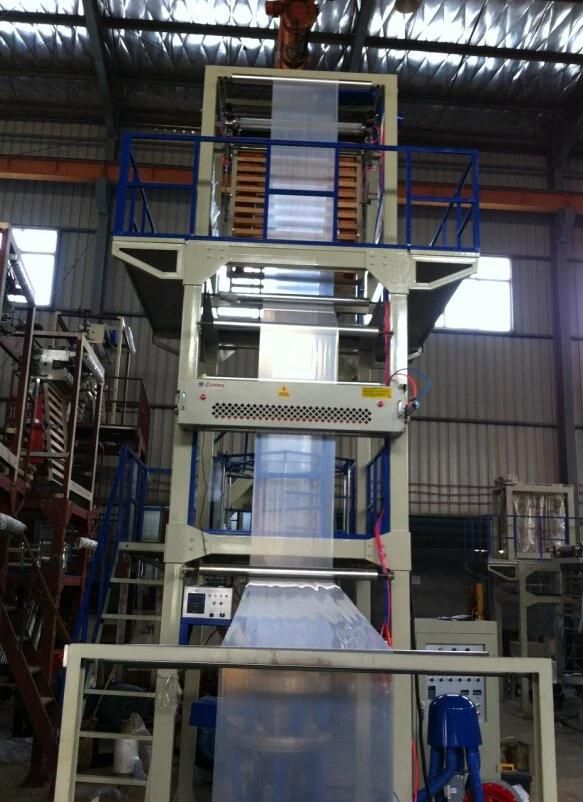

High Speed Biodegradable PLA Pbat Sigle Layer Extruder Blown Extrusion Line Film Blowing ...
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1500mm
- Screw Diameter：75mm
- Automation：Automatic
Base Info
- Model NO.：SJ
- Computerized：Computerized
- Machine Weight：1.2t
- Certification：CE, ISO9001:2008
- Max Output：150kg,H
- Die Head：Rotary Die Head
- Rewinder：Double Rewinder
- Air Compressor：Included
- Main Motor：37kw
- Transport Package：Film Packing or Wooden Case Package
- Specification：CE, ISO
- Trademark：YUNBANG
- Origin：China
- HS Code：84773090
- Production Capacity：15 Sets,Month
Description
SJ-60-1100
SJ-65-1350
SJ-75-1700
Diameter of Screw(mm)
45
50
55
60
65
75
Max. Lay flat Width(mm)
400
600
800
1000
1200
1500
Max. Output(kg/h)
20
30
50
60
90
120
Raw material
HDPE/LLDPE/LDPE/EVA
Film Thickness(mm)
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
Screw Max.
Rotation Speed
10-80r/min
10-80r/min
10-80r/min
80r/min
120r/min
120r/min
Screw L/D Ratio
34: 1
34: 1
34: 1
34: 1
32: 1
32: 1
Extruder Driving power(kw)
5.5-7.5
7.5-11
15-18.5
18.5
22
37-45
The way of screen
changing of extruder
Hydraulic/pneumatic/manual
twin-station changing screen quickly(as customer request)
Die structure
Spiral Approach
Air-ring structure
singl lip or double lip
film turning mode
Horizontal
angle of reversing die head
360°
Take-off wond-up speed
10-60m/min
10-60m/min
10-60m/min
10-80m/min
10-80m/min
10-80m/min
Overall Dimensions(LxWxH)M
2.6x1.5x4.5
3.2x1.7x4.5
4.2x1.9x5
4.8x2.1x6
5.8x2.4x6
7x2.7x7.5
Weight(T)
1.2
1.5
2
2.5
3.2
7.5
